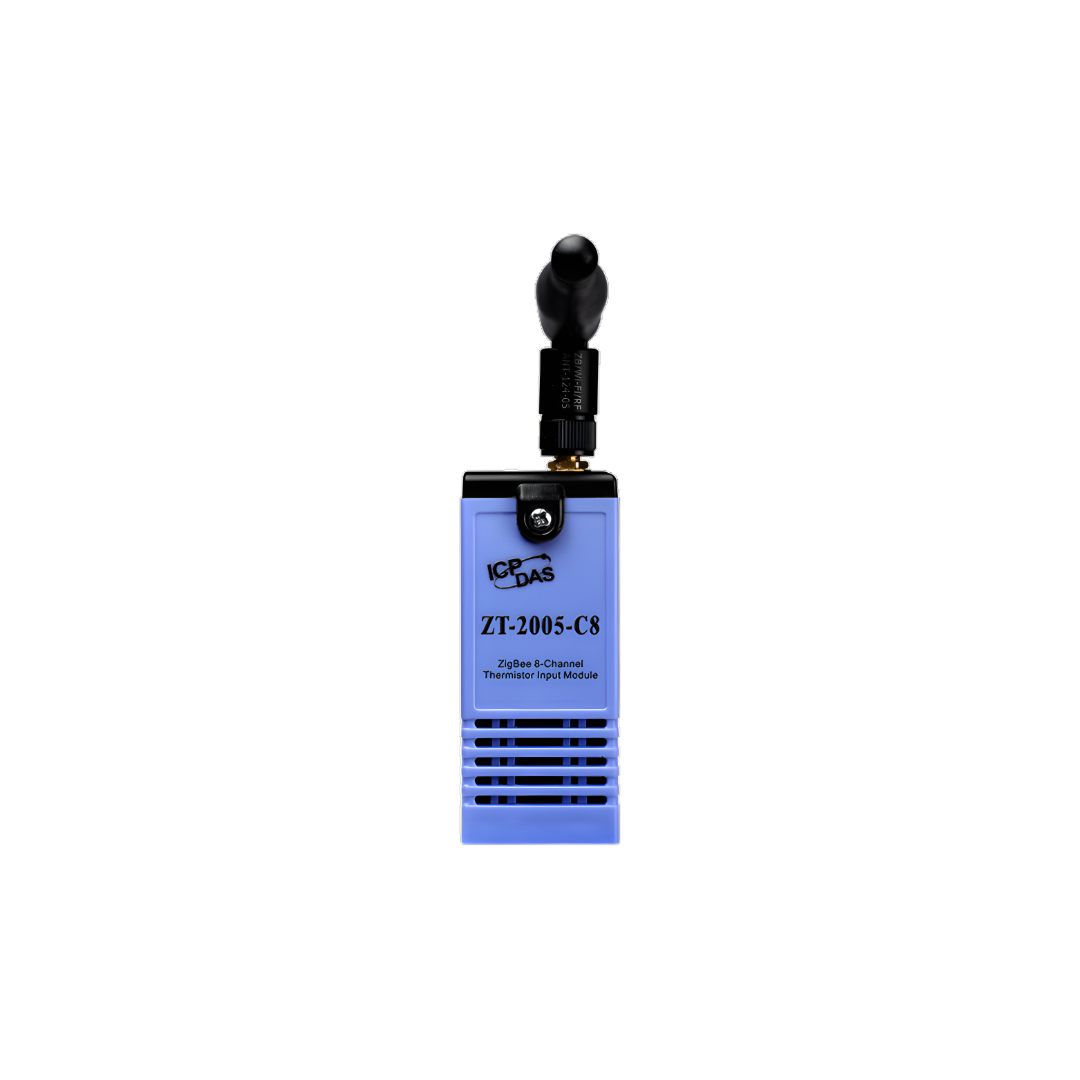

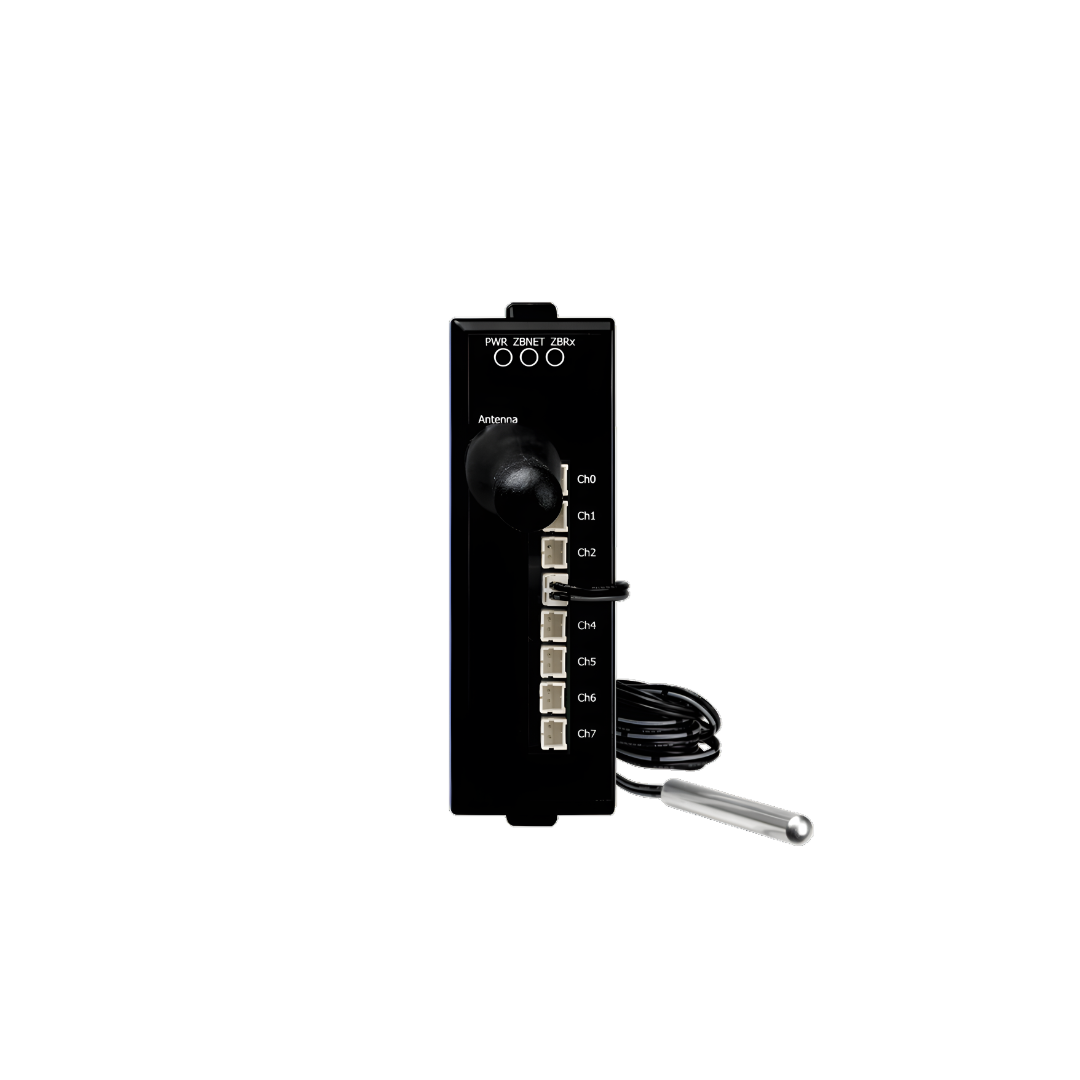

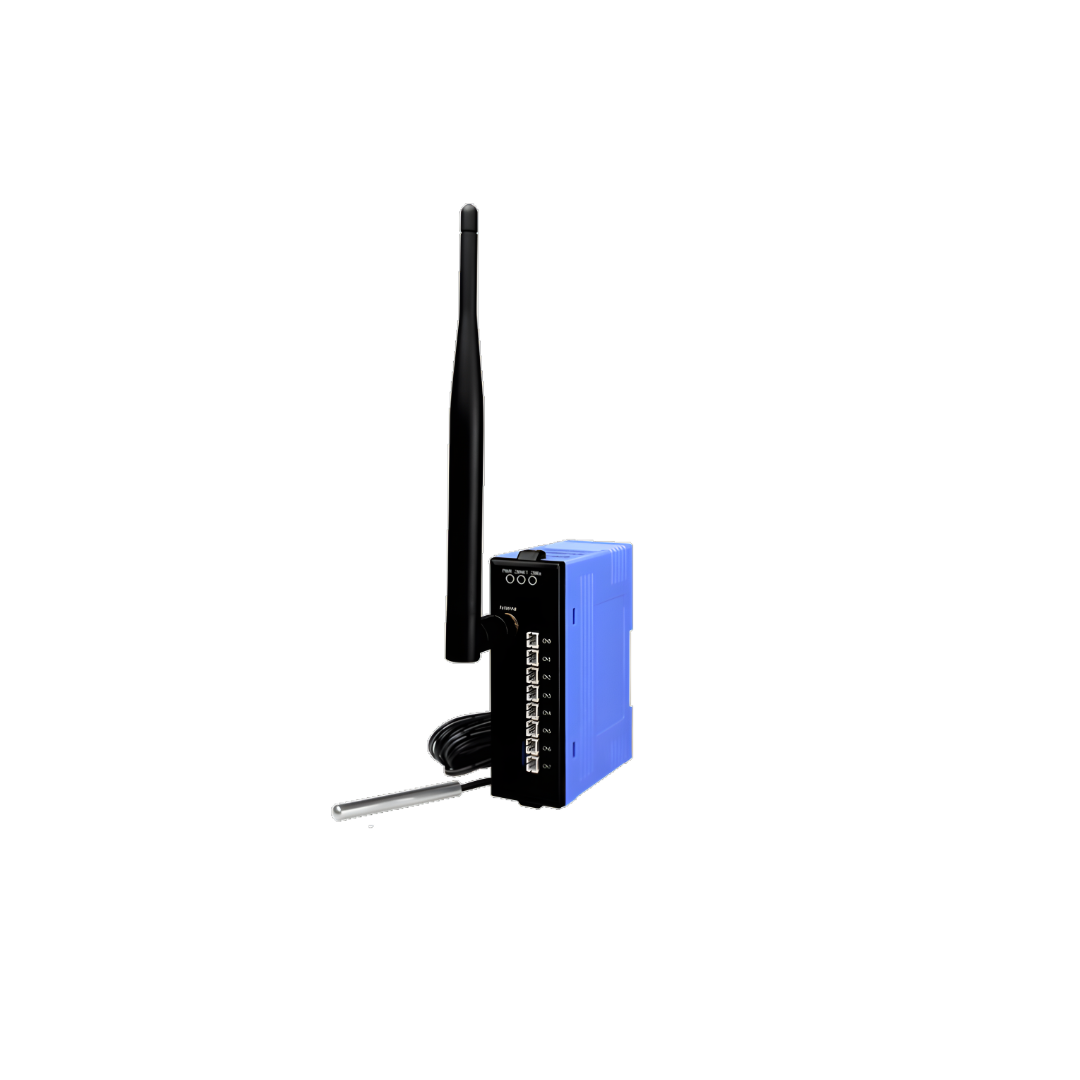

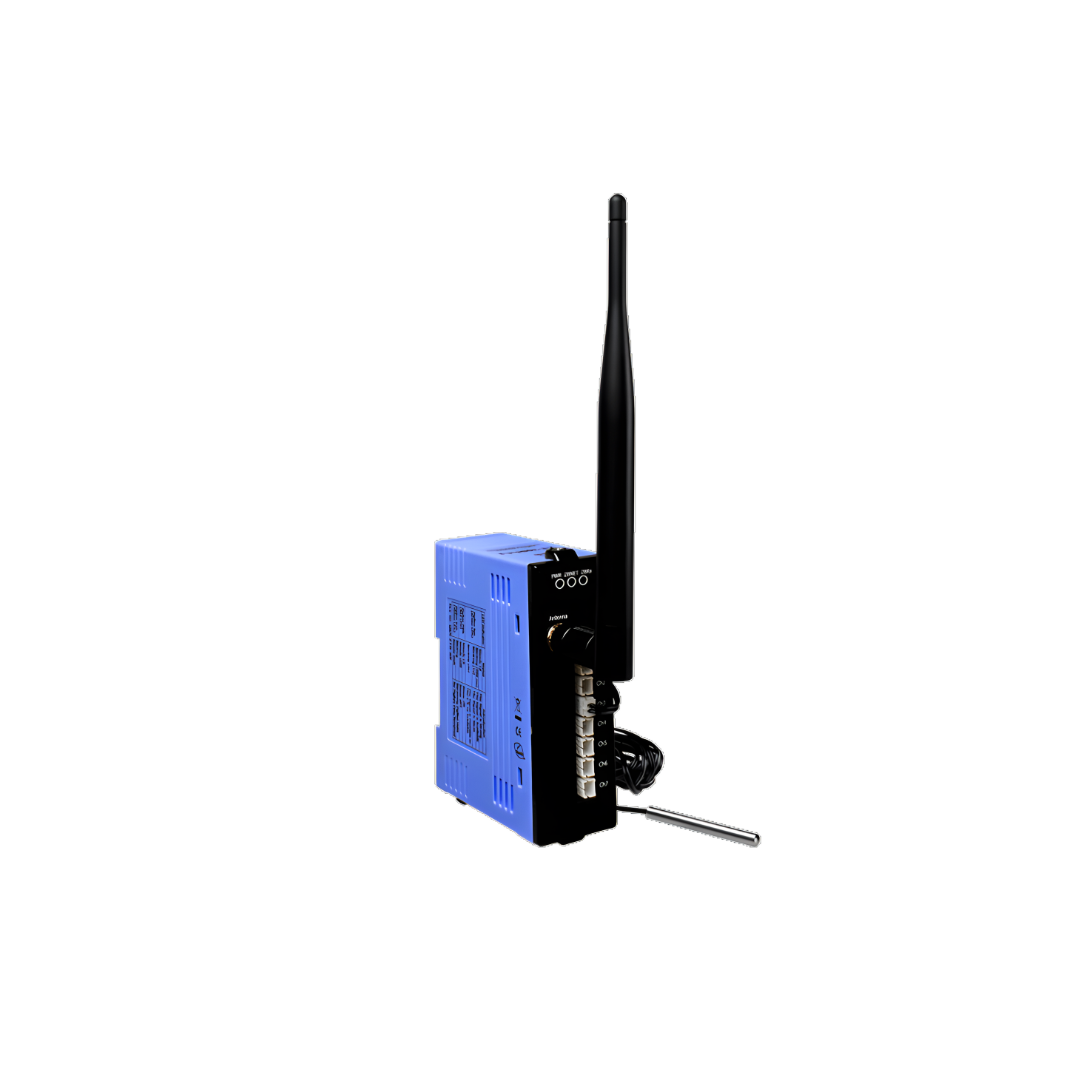

ZT-2005-C8
|

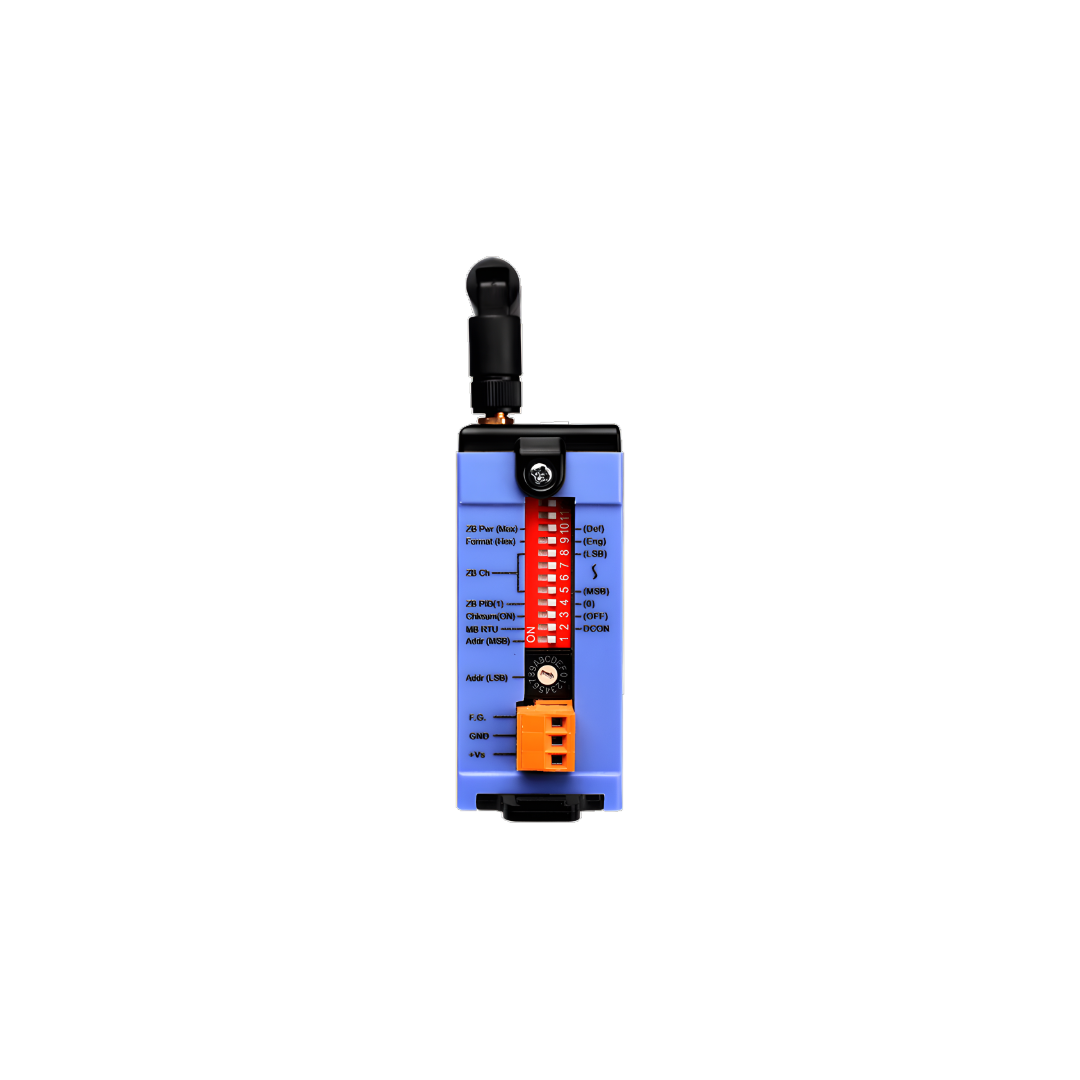

The ZT-2005-C8 is an 8-channel thermistor input module of ZigBee. It based on the IEEE802.15.4 standard that allows users to measuring temperature via a thermistor in a personal area ZigBee network. The typical transmission of ZT-2005-C8 is 700 meters (LOS, line of sight), with a transmission frequency range of between 2.405 GHz and 2.48 GHz, separated into 5 MHz sectors, providing 16 channels. Users can easily configure the module address, protocol, checksum, ZB-PID and ZB-channel settings using a combination of rotary and DIP switches. ZT-2005-C8 has 4 kV ESD protection and 1000 VDC intra-module isolation.
Request For Quotation
Description
Applications
Features
- ISM 2.4 GHz Operating Frequency
- Fully Compliant with IEEE802.15.4/ZigBee Specifications (ZigBee Pro/ZigBee 2007)
- Wireless Transmission Range up to 700 meters (Line of Sight)
- Supports ZigBee Repeater Function
- Supports DCON and Modbus RTU protocols
- 8-Channel Thermistor Input
- Resolution: 12 bits
- Accuracy: ±1°C
- DIN-Rail Mountable
- Operating Temperatures, -25 °C ~ +75 °C
I/O Specifications
| Analog Input | |
| Input Channels | 8 |
| Input Type | Thermistor |
| Resolution | 12 bits |
| Sampling Rate | 10 Hz total |
| Accuracy | ±1°C |
| Thermistor (CA-TM-M100-L050P) | |
| Pipe | φ6x60mm, stainless stell (SUS304) |
| Wire | 4.94m, UL2651 #24AWG*2C (TS) |
| Connector | 2pin, pitch 2.0mm |
| Resistance | R25=10K(Ω)±1% |
| B Constant | R25/85=3435(K)±1% |
| Dissipation Factor | ≧3(mW/°C) |
| Thermal Time Constant | ≦15 (sec) |
| Measuring Temperature Range | -40 ~ 105°C |
System Specifications
| Communication Interface | |
| Wireless Standards | ZigBee 2007 Pro |
| Transmission Power | 11 dBm (FCC Certificated) ( Max 19 dBm) |
| Antenna | 2.4 GHz – 5 dBi Omni directional |
| Transmission Range (LoS) | 700 m (Typical) |
| Certification | CE/FCC |
| Max. Slaves in a ZigBee Network | 255 |
| Protocols | Supports DCON and Modbus RTU Protocols |
| Wireless Encryption | AES-128 |
| LED Indicators | |
| ZigBee Communication | 1 LED, Green |
| ZigBee RxD | 1 LED, Yellow |
| Power | 1 LED, RED |
| Isolation | |
| Intra-module Isolated, Field-to-Logic |
1000 VDC |
| EMS Protection | |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Power Line, Communication Line and each Channel, ±8 kV Air for Random Point |
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| Surge (IEC 61000-4-5) | ±3 kV for Power Line |
| Power | |
| Input Voltage Range | +10 VDC ~ +30 VDC |
| Power Consumption | 1 W(Max.) |
| Mechanism | |
| Flammability | Fire Retardant Materials (UL 94V-0 Level) |
| Dimensions (L x W x H) | 87 mm x 33 mm x 110 mm |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25°C ~ +75°C |
| Storage Temperature | -30°C ~ +80°C |
| Relative Humidity | 10 ~ 90% RH (non-condensing) |
Ordering Informations
| ZT-2005-C8 CR | Wireless 8-ch Thermistor Input Module (RoHS) |
