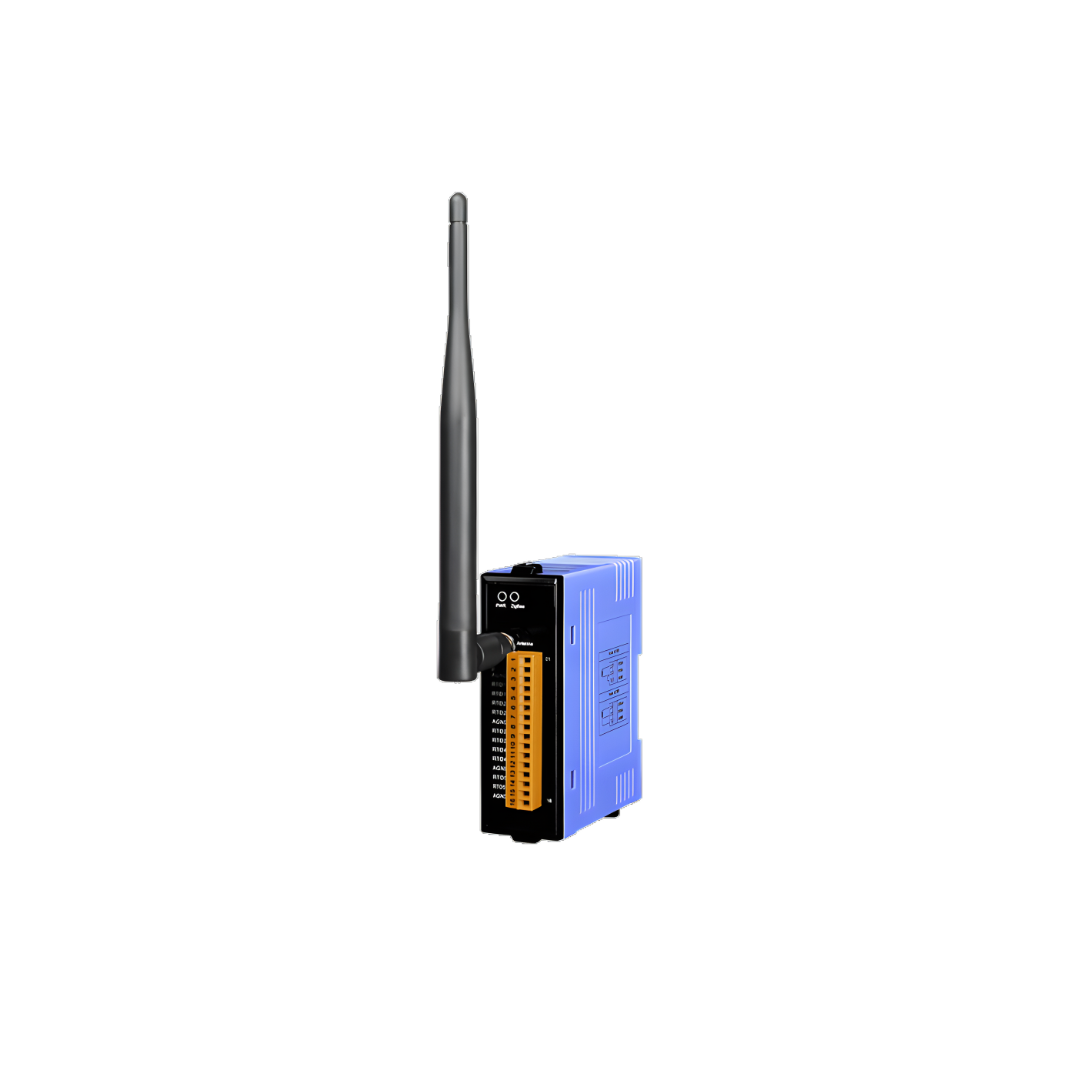

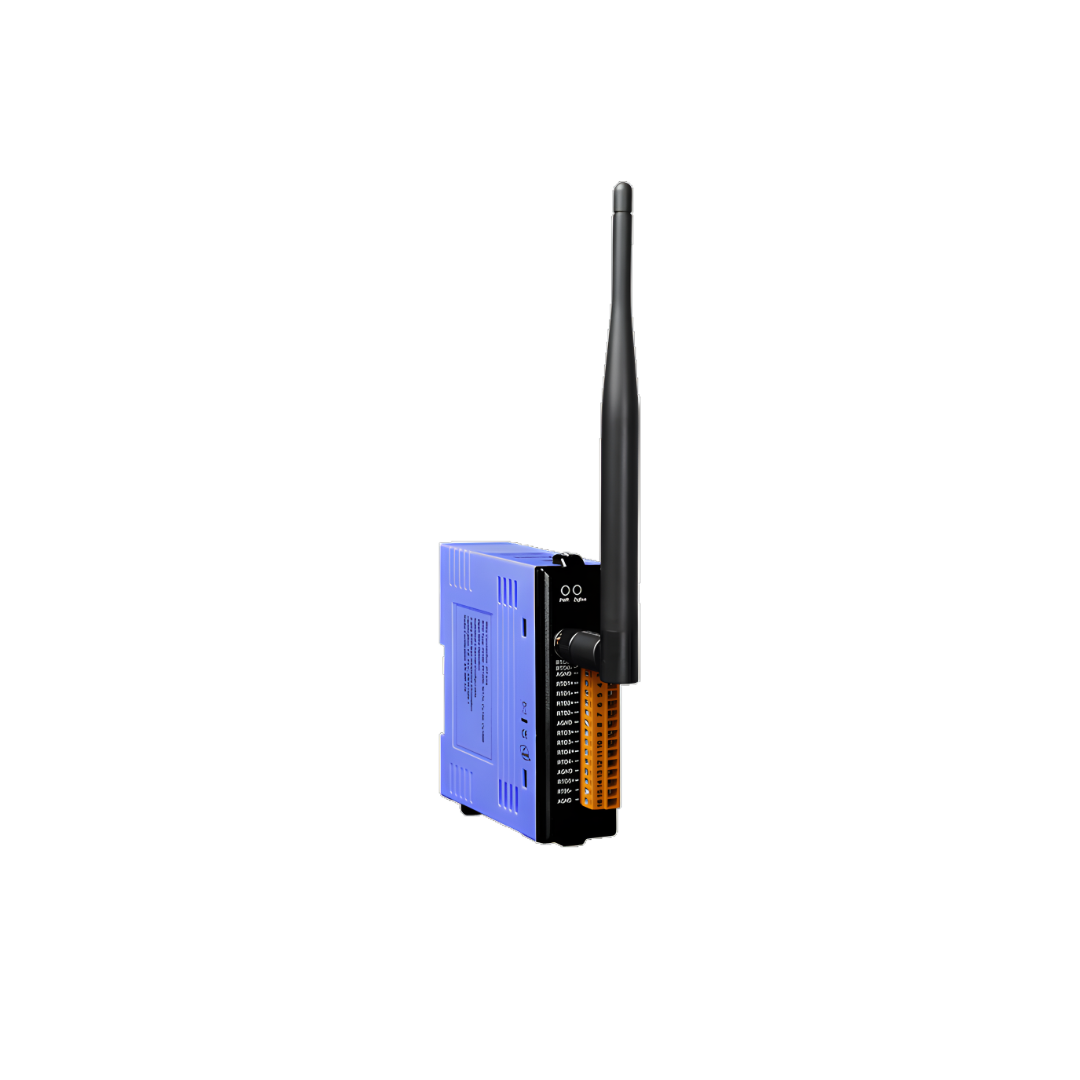

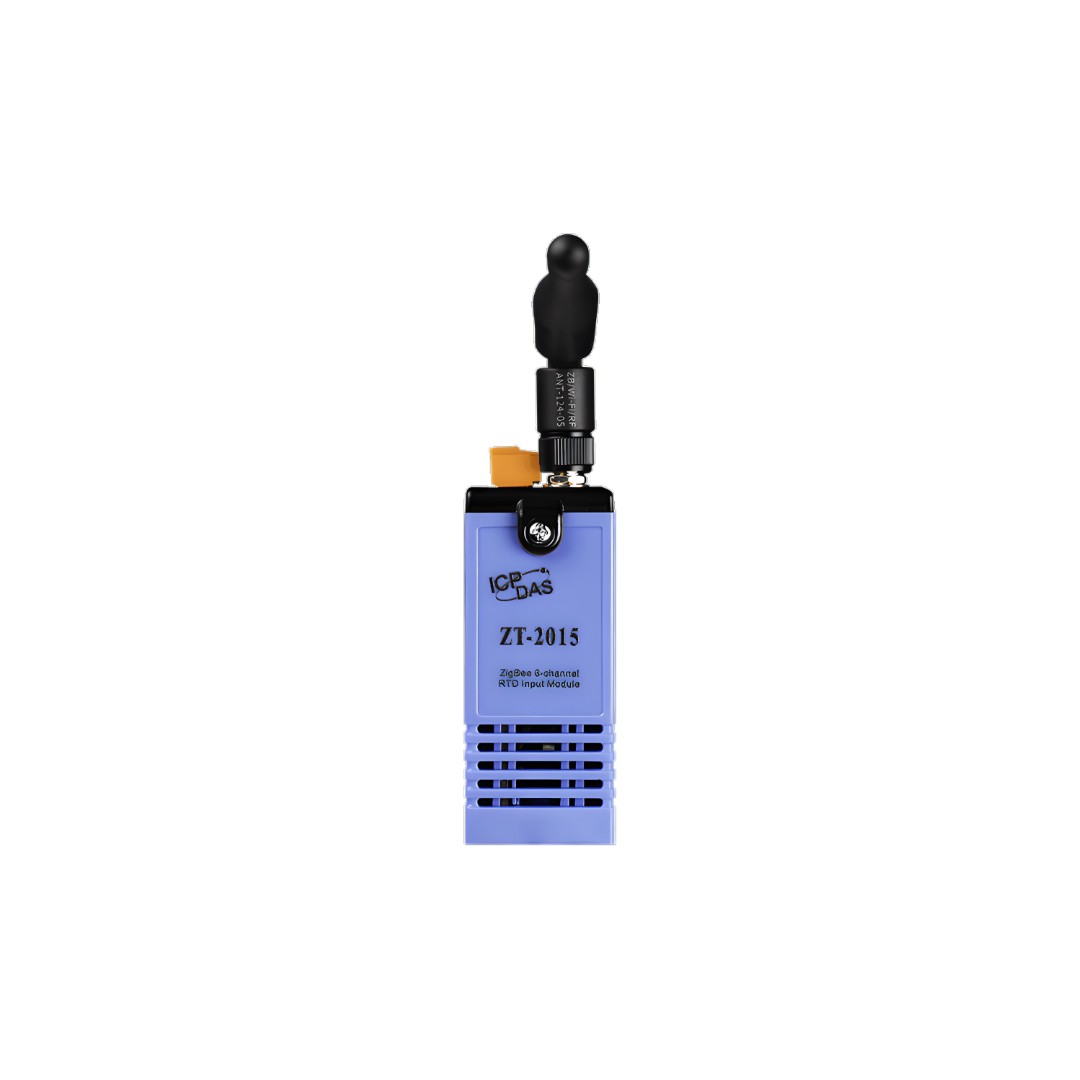

ZT-2015
Wireless 6-channel RTD Input Module with 3-wire RTD Lead Resistance Elimination

The ZT-2015 offers 6 wireless input channels, each of which can be connected to different kinds of RTD sensors. It features automatic compensation for 3-wire RTD, with long-distance measurement capabilities so that it can measure accurately regardless of the length of the wires. Also the ZT-2015 is fully RoHS-compliant and has qualification for 4 kV ESD protection as well as 3000 VDC intra-module isolation. Users can easily configure the module address, protocol, checksum, ZB-PID, ZB-channel and type code settings using a combination of rotary and DIP switches.

Request For Quotation

    Category:

    Description

    Applications

    Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote Diagnosis, Testing Equipment.

    Features

    • ISM 2.4 GHz Operating Frequency
    • Fully Compliant with 2.4 G / ZigBee Specifications
    • Wireless Transmission Range up to 700 m

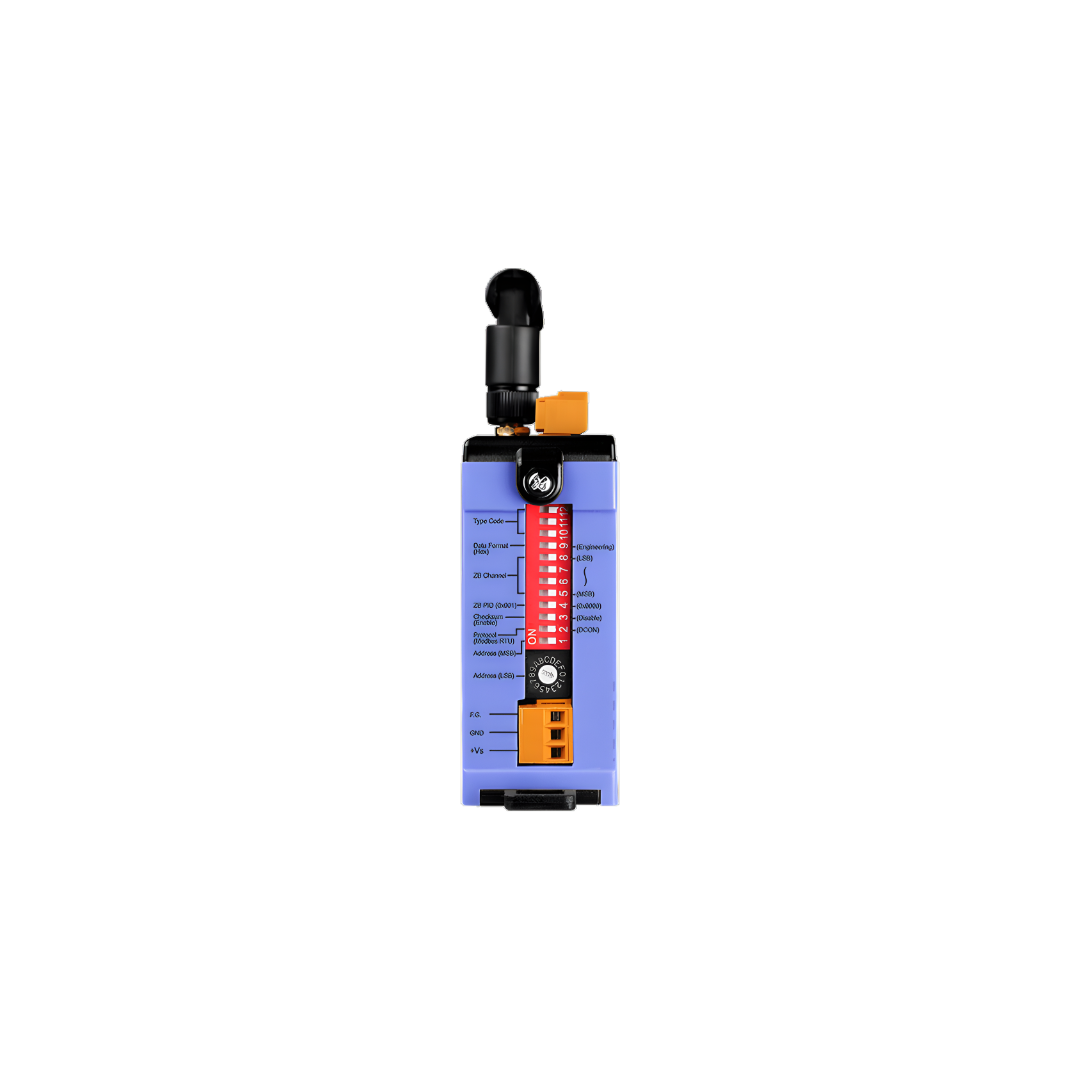

    • External DIP and Rotary Switches for easy Configuration
    • GUI Configuration Software (Windows Version)
    • 3-wire RTD Input with Lead Resistance Elimination
    • Individual Channel Configuration
    • Open Wire Detection
    • Overvoltage Protection
    • DIN-Rail Mounting

    I/O Specifications

    Analog Input
    Input Channels 6
    Input Type 2/3-wire RTD
    RTD Types Pt100, Pt1000, Ni120, Cu100, Cu1000
    Resolution 16-bit
    Sampling Rate 12 Samples/Sec. (Total)
    Accuracy ±0.05%
    Common Mode Rejection 150 dB
    Normal Mode Rejection 100 dB
    Open Wire Detection Yes
    Overvoltage Protection 120 VDC/110 VAC
    Individual Channel Configuration Yes
    3-wire RTD Lead Resistance Elimination Yes

    System Specifications

    Communication Interface
    Wireless Standards ZigBee 2007 Pro
    Transmission Power 11 dBm (FCC Certificated) (Max. 19 dBm)
    Antenna 2.4 GHz – 5 dBi Omni directional
    Transmission Range (LoS) 700 m (Typical)
    Certification FCC/FCC ID, CE (RED excluded)
    Max. Slaves in a ZigBee Network 255
    ZB-100R/ZB-100T Support –
    Protocols Supports DCON and Modbus RTU Protocols
    Dual Watchdog Yes, Module (1.6 Seconds), Communication (Programmable)

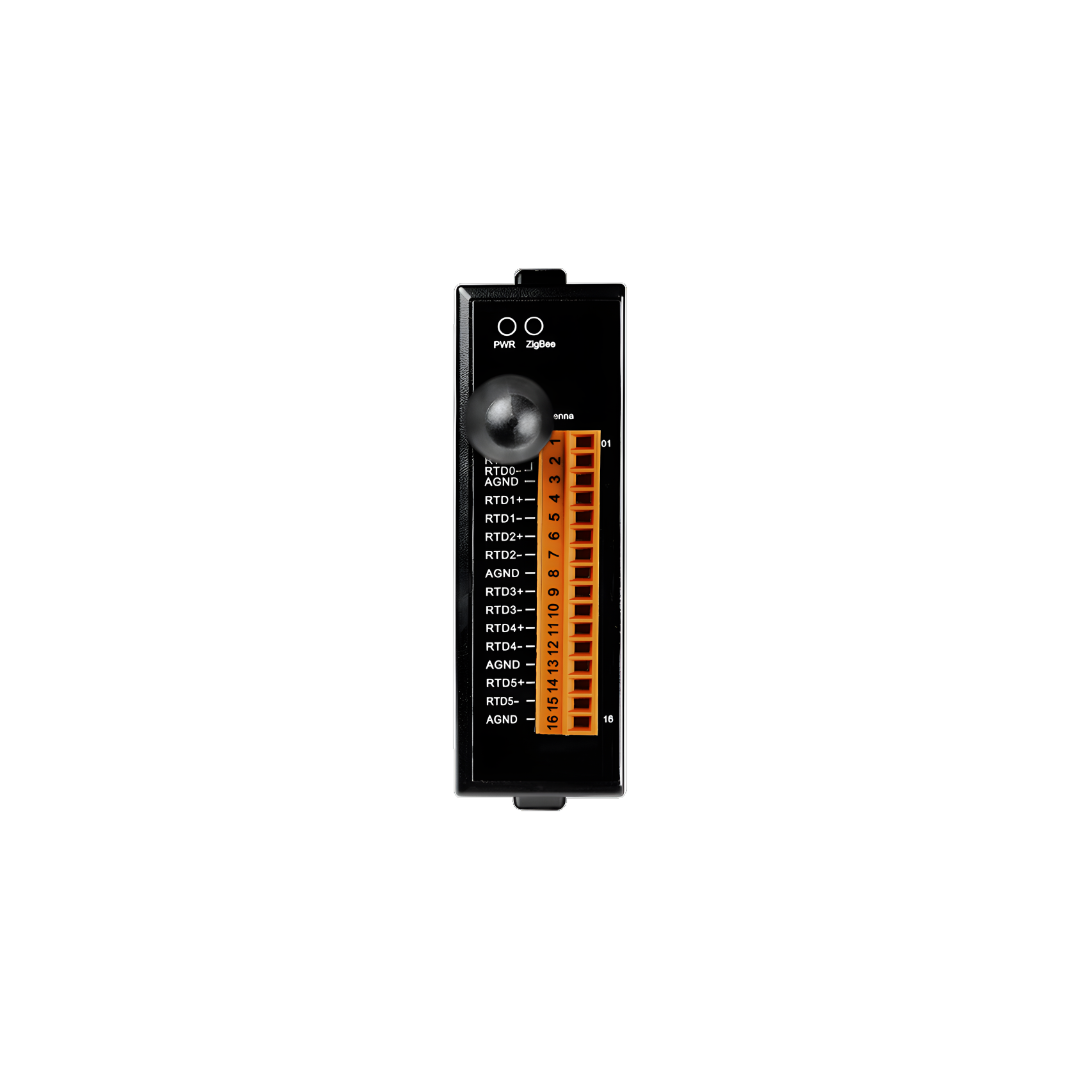

    LED Indicators
    Power 1 LED, Red
    ZigBee Communication 1 LED, Green
    Isolation
    Intra-module Isolated, Field-to-Logic 3000 VDC
    EMS Protection
    ESD (IEC 61000-4-2) ±4 kV Contact for Power Line, Communication Line and each Channel,
    ±8 kV Air for Random Point
    EFT (IEC 61000-4-4) ±4 kV for Power Line
    Surge ( IEC 61000-4-5) ±3 kV for Power Line
    Power
    Input Voltage Range +10 VDC ~ +30 VDC
    Power Consumption 1.5 W Max.
    Mechanical
    Flammability Fire Retardant Materials (UL 94V-0 Level)
    Dimensions (L x W x H) 87 mm x 33 mm x 110 mm
    Installation DIN-Rail
    Environment
    Operating Temperature -25 ~ +75°C
    Storage Temperature -30 ~ +80°C
    Relative Humidity 10 ~ 90% RH, Non-condensing

    Ordering Informations

    ZT-2015 CR Wireless 6-channel RTD Input Module with 3-wire RTD Lead Resistance Elimination (ZigBee Router) (RoHS)
