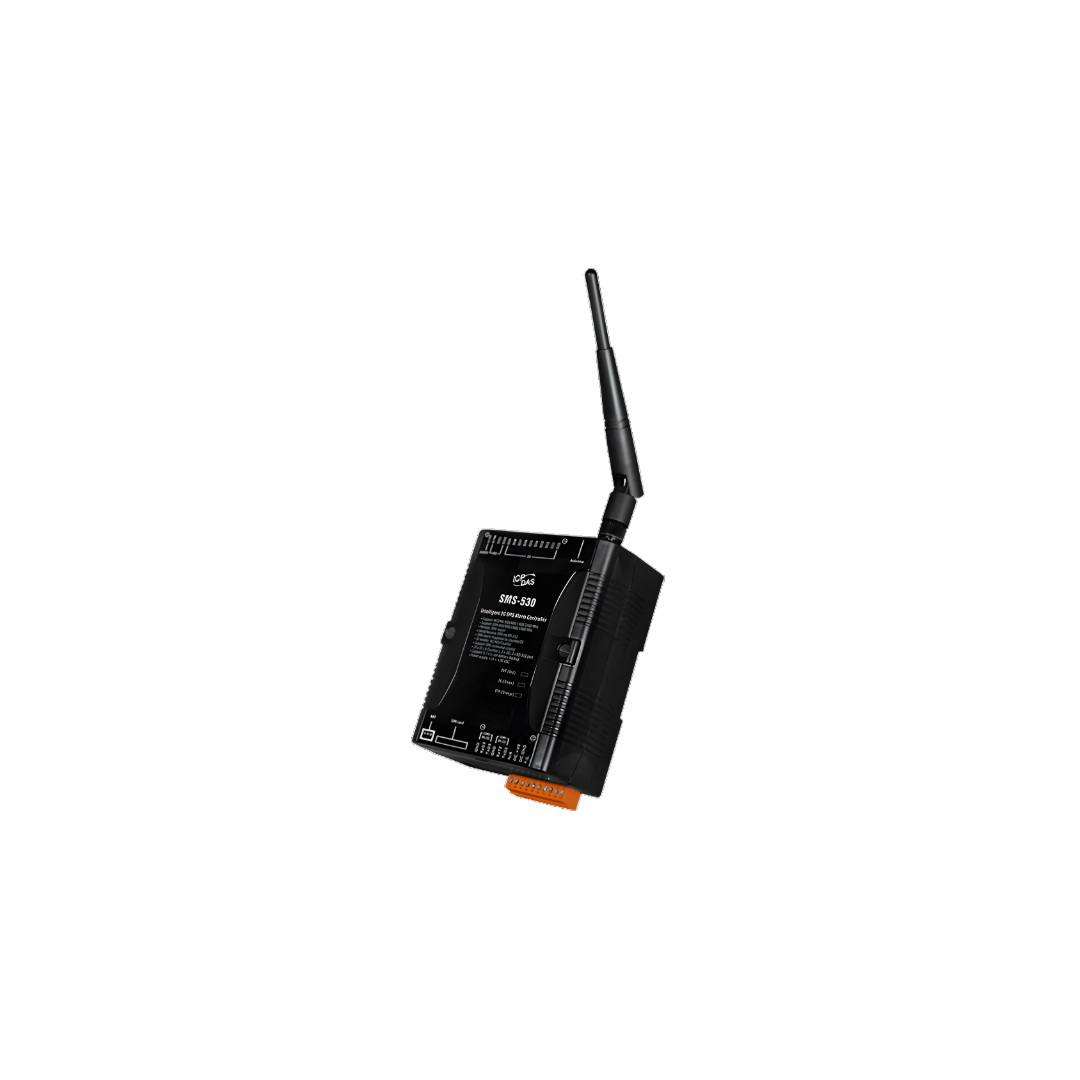

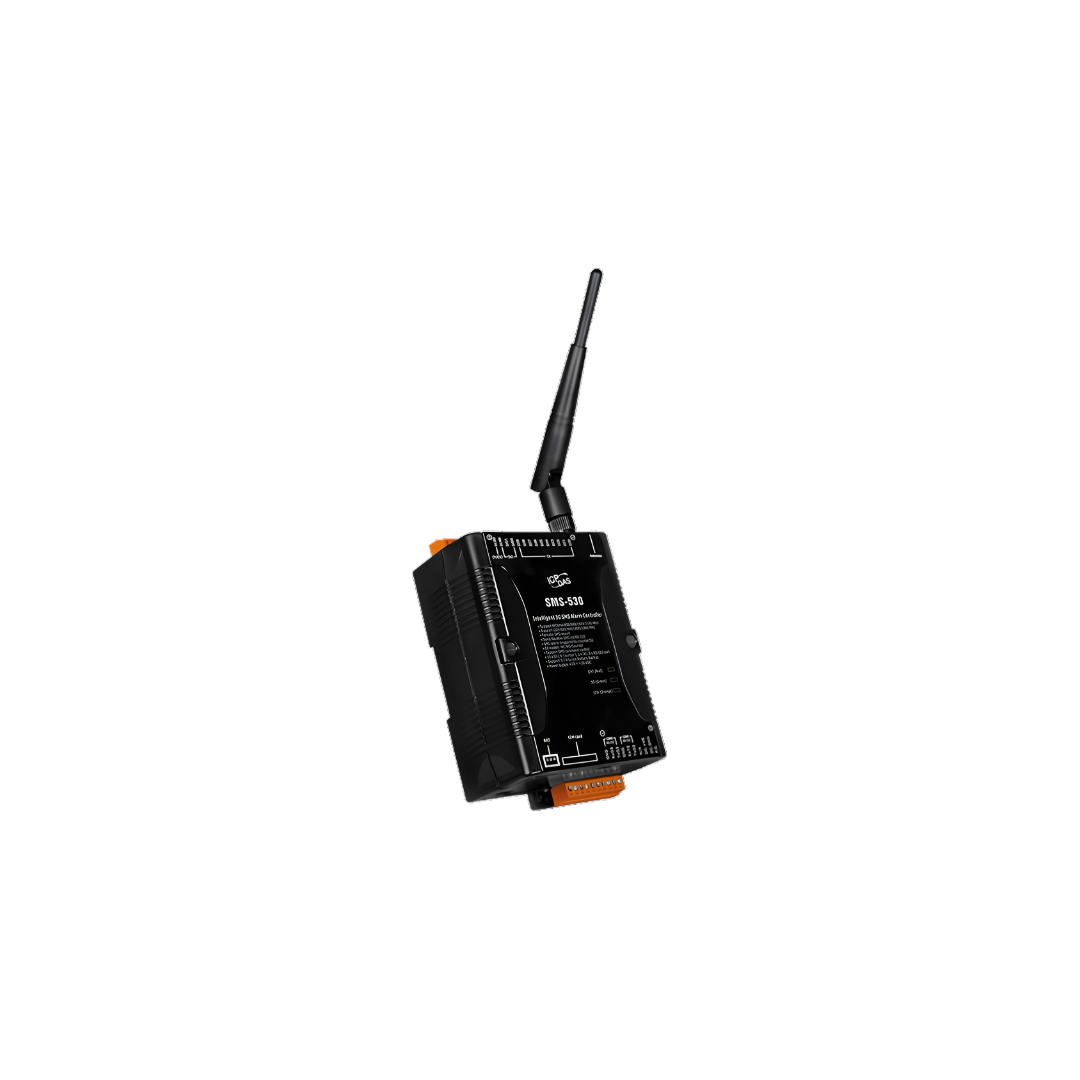

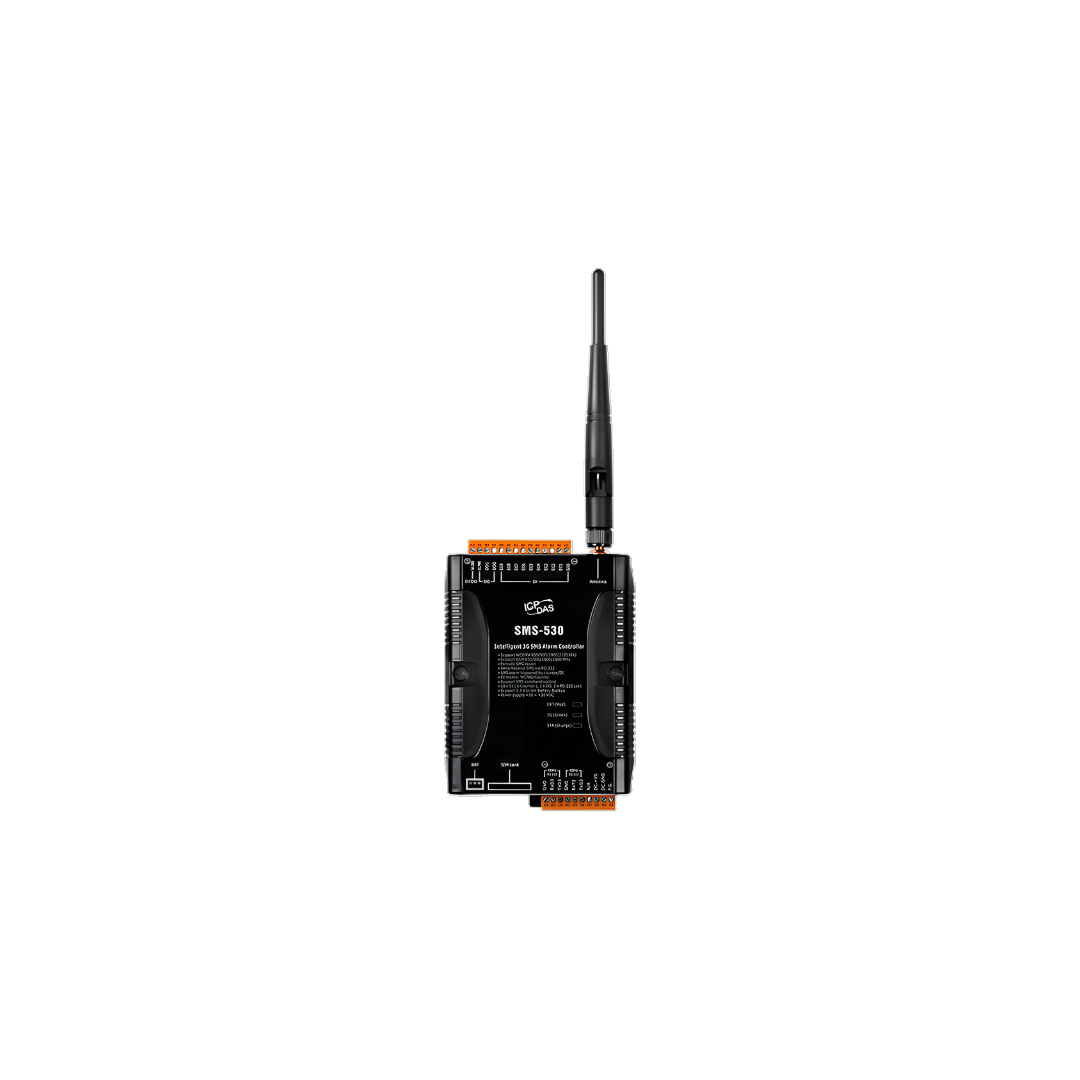

SMS-530

SMS-530 is an intelligent 3G SMS controller for industry applications with the simple commands and SMS tunnel function, and power can be input by the external power or Li-Battery. It supports UNICODE or 7 bit format for users to implement sending SMS messages with various languages. Applying SMS-530, the SMS report can be sent by defined time or DI/counter event trigger. This can be a remote control and alarm system allowing you to use your mobile phone to monitor and control your business from any location. Its alarm facilities provide a flexible way to distribute critical alarm information to any number of mobile phone users.

SMS-530 can monitor total 10 digital inputs (6 counters). The user can also interrogate the status of I/O through SMS messages. The SMS-530 also has 2 Digital output which can be activated via DI trigger or SMS to control the lamps, pumps, heaters etc.



Request For Quotation

    Description

    Application 1: Signal Alarm and SMS communication

    Application 2: Home security

    Application 3: Remote maintenance

    Application 4: SMS Tunnel Communication

    Application 5: DI Alarm and SMS communication

    Features

    • Support GSM 850/900/1800/1900 MHz Quad-band frequency
    • Support WCDMA 850/900/1900/2100 MHz Quad-band frequency
    • Identify ASCII or Unicode SMS Automatically
    • Support max. 140 ASCII Characters
    • Support max. 70 Unicode Characters
    • Built-in ASCII Commands and SMS tunnel Communication Modes
    • Max. 10 Default Phone Numbers
    • Built-in Watch-dog Function
    • Industrial Design with Surge Protection
    • Support SMS setting and control
    • 10 DI (6 Counter), 2 DO, 2 RS-232 port
    • Digital input support NC(normal close)/NO(normal open)/Counter modes
    • Send alarm SMS by DI trigger or exceed Counter preset limits
    • Support simple command to send SMS via RS-232
    • Support DC +10 VDC ~ +30 VDC Power Input
    • Supports 3.7 V Li-ion Battery Backup
    • DIN Rail design

    Hardware Specification

    System
    CPU 32 bit CPU
    SRAM 32 Kbytes
    Flash Memory 512 Kbytes
    RTC Gives time(sec, min, hour) & date, leap year compensation from 1980 to 2079
    WDT(watchdog) Yes
    Serial ports
    COM2 RS-232 : TxD,RxD,GND for configuration
    COM3 RS-232 : TxD,RxD,GND for communication with other devices
    DIO
    Input 10 Channel (6 Counter 5~40Hz + 4 Channel Digital input powered by external power or Li-battery)
    On Voltage : +3.5~24VDC
    Off Voltage : +1V Max.
    Output D/O : 2 Channel Open collector output  (100mA@24VDC)
    Output type : Open-Collector (NPN)
    Load Voltage : +24V Max.
    Load Current : 100mA Max.
    3G system
    Frequency Band WCDMA Quad-Band 850/900/1900/2100 MHz
    Power Class Class 3 (250mW @ WCDMA/HSPA)
    2G System
    Frequency Band GSM Quad-Band 850/900/1800/1900 MHz
    Coding Schemes CS 1, CS2, CS3, CS4
    SMS Format sending: UCS2  receiving: UCS2/7bits
    Power
    Protection Power reverse polarity protection
    Frame Ground Protection ESD, Surge, EFT, Hi-Pot
    Required Supply Voltage +10 VDC ~ +30 VDC with 600 mAh Li-ion battery backup (Option :1200 mAh)
    Power Consumption Idle: 25 mA @ 24 VDC; Data Link: 44 mA @ 24 VDC; Peak: 45 mA @ 24 VDC; Sleep: 15mA @ 3.7VDC
    Mechanical
    Casing Plastic
    Dimensions (W x L x H) 91 mm x 132 mm x 52 mm
    Installation DIN-Rail
    Environmental
    Operating Temperature -25 ℃ ~ +55 ℃
    Storage Temperature -40 ℃ ~ +80 ℃
    Ambient Relative Humidity 5 ~ 95% RH, non-condensing

    Support SMS DBS

    SMS Monitor/Database System Software Solution for GT-53x series

    Ordering Information

    SMS-530 CR
    Intelligent 3G SMS Alarm Controller (RoHS)
