DS-715
|
| Serial-to-Ethernet Device Servers |
The DS-700 is a series of Serial-to-Ethernet Device Servers that are designed for linking RS-232/422/485 devices to an Ethernet network. By using the VxComm Driver/Utility, the built-in COM port of the DS-700 series can be virtualized to a standard PC COM port in Windows. By virtue of its protocol independence, a small size and flexibility, the DS-700 series meets the demands of virtually any network-enabled application.

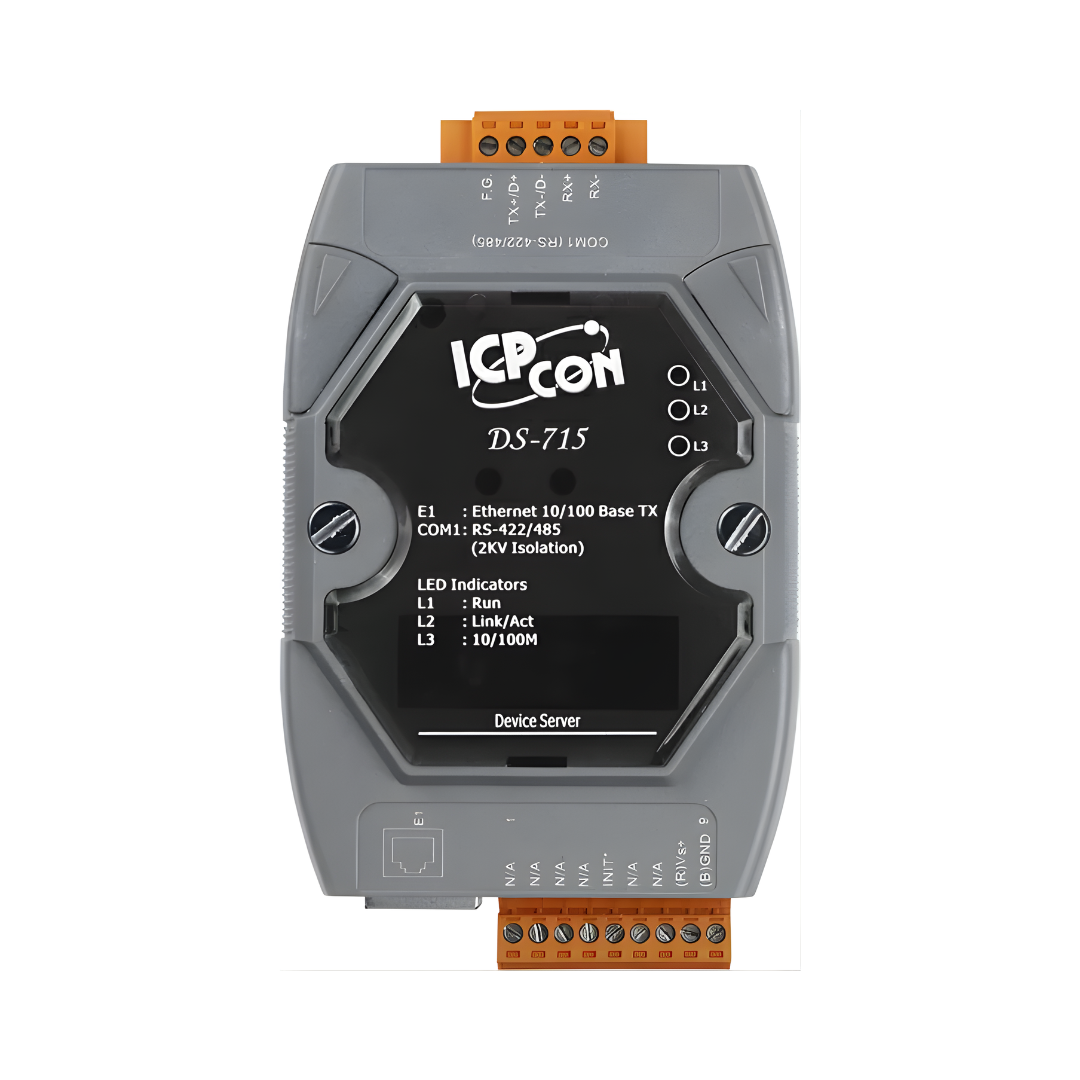

The DS-712 is equipped with a male DB-9 connector and supports a 5-wire RS-232 port, while the DS-715 is equipped with a removable terminal block connector and supports a 4-wire RS-422 port or a 2-wire RS-485 port with 2000 Vrms isolation.
Request For Quotation
Description
Applications
- Factory Automation
- Building Automation
- Home Automation
Features
- Incorporate Serial Devices in an Ethernet network
- “Virtual COM” Extend COM Ports
- Virtual COM supports 32-bit and 64-bit Windows XP/2003/Vista/7/8
- High Performance Device Server
- Watchdog Timer suitable for use in harsh environments
- Power Reverse Polarity Protection
- Serial Port +/-4 kV ESD Protection Circuit
- RoHS Compliant with no Halogen
- Built-in High Performance MiniOS7 from ICP DAS
- 10/100 Base-TX Ethernet, RJ-45 Port
(Auto-negotiating, auto MDI/MDI-X, LED indicator) - ODM Service Is Available
- Low power consumption
- Palm-Sized with multiple Serial Ports
- Made from fire retardant materials (UL94-V0 Level)
- Self-Tuner ASIC Controller on the RS-485 Port
Hardware Specifications
| Model Name | DS-715 | |
| CPU | ||
| CPU | 80186-80 MHz or compatible | |
| SRAM | 512 KB | |
| Flash Memory | Flash ROM: 512 KB | |
| EEPROM | 16 KB; Data return: 40 years. | |
| Built-in Watchdog Timer | Yes | |
| Communication Interface | ||
| Non-isolated | COM1 | RS-232 (TxD, RxD, RTS, CTS, GND) |
| RS-485 | Bias Resistor | Yes, 1 KΩ |
| Node | 254 (max.) | |
| Ethernet | 10/100 Base-TX, RJ-45 port (Auto-negotiating, auto MDI/MDI-X, LED indicator) | |
| PoE | – | |
| COM Port Formats | ||
| Data Bit | 7, 8: for COM1 | |
| Parity | None, Even, Odd, Mark, Space None parity is required when using 8 data bits and 2 stop bits on COM1. |
|
| Stop Bit | 1, 2: for COM1 | |
| Baud Rate | 115200 bps Max. | |
| Power | ||
| Protection | Power Reverse Polarity Protection | |
| Required Supply Voltage | +12 VDC ~ +48 VDC (non-regulated) | |
| Power Consumption | 2.0 W | |
| LED Indicators | ||
| L1 | Run (Red) | |
| L2 | Link/Act (Red) | |
| L3 | 10/100M (Orange) | |
| PoE | – | |
| Mechanical | ||
| Flammability | Fire Retardant Materials (UL94-V0 Level) | |
| Dimension (W x H x D) | 72 mm x 118 mm x 35 mm | |
| Installation | DIN-Rail or Wall mounting | |
| Environment | ||
| Operating Temperature | -25 ~ +75 °C | |
| Storage Temperature | -40 ~ +80 °C | |
| Humidity | 5 ~ 90% RH, non-condensing | |
Ordering Informations
| DS-715 CR | Device Server with 1Isolated RS-422/RS-485 port (RoHS) |
