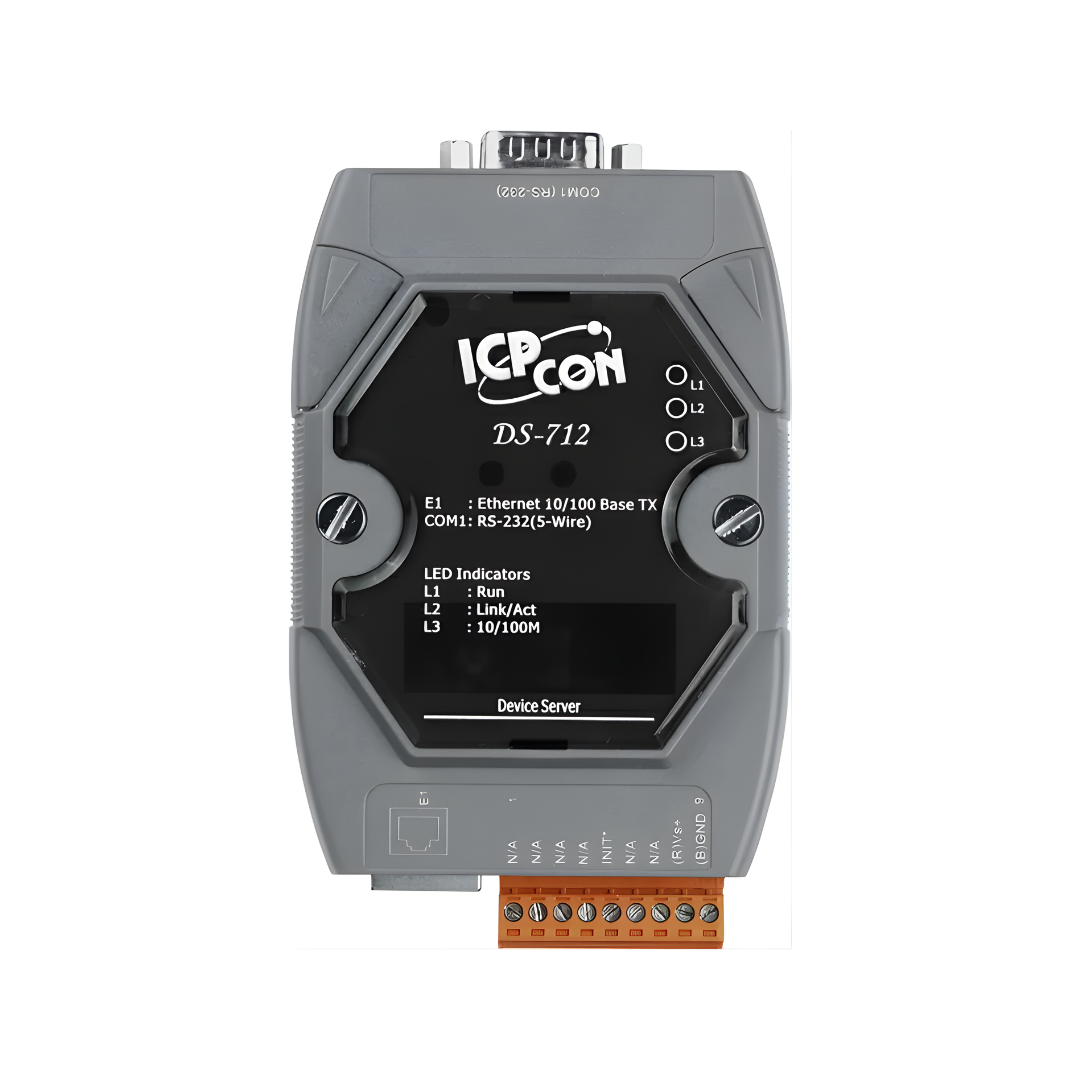

DS-712
Serial-to-Ethernet Device Servers

The DS-700 is a series of Serial-to-Ethernet Device Servers that are designed for linking RS-232/422/485 devices to an Ethernet network. By using the VxComm Driver/Utility, the built-in COM port of the DS-700 series can be virtualized to a standard PC COM port in Windows. By virtue of its protocol independence, a small size and flexibility, the DS-700 series meets the demands of virtually any network-enabled application.

The DS-712 is equipped with a male DB-9 connector and supports a 5-wire RS-232 port, while the DS-715 is equipped with a removable terminal block connector and supports a 4-wire RS-422 port or a 2-wire RS-485 port with 2000 Vrms isolation.



Request For Quotation

    Description



    Applications

    • Factory Automation
    • Building Automation
    • Home Automation

    Features

    • Incorporate Serial Devices in an Ethernet network
    • “Virtual COM” Extend COM Ports
    • Virtual COM supports 32-bit and 64-bit Windows XP/2003/Vista/7/8
    • High Performance Device Server
    • Watchdog Timer suitable for use in harsh environments
    • Power Reverse Polarity Protection
    • Serial Port +/-4 kV ESD Protection Circuit
    • RoHS Compliant with no Halogen
    • Built-in High Performance MiniOS7 from ICP DAS
    • 10/100 Base-TX Ethernet, RJ-45 Port
      (Auto-negotiating, auto MDI/MDI-X, LED indicator)
    • ODM Service Is Available
    • Low power consumption
    • Palm-Sized with multiple Serial Ports
    • Male DB-9 Connector

    Hardware Specifications

    Model Name DS-712
    CPU
    CPU 80186-80 MHz or compatible
    SRAM 512 KB
    Flash Memory Flash ROM: 512 KB
    EEPROM 16 KB; Data return: 40 years.
    Built-in Watchdog Timer Yes
    Communication Interface
    Non-isolated COM1 RS-232 (TxD, RxD, RTS, CTS, GND)
    Ethernet 10/100 Base-TX, RJ-45 port (Auto-negotiating, auto MDI/MDI-X, LED indicator)
    PoE
    COM Port Formats
    Data Bit 7, 8: for COM1
    Parity None, Even, Odd, Mark, Space
    None parity is required when using 8 data bits and 2 stop bits on COM1.
    Stop Bit 1, 2: for COM1
    Baud Rate 115200 bps Max.
    Power
    Protection Power Reverse Polarity Protection
    Required Supply Voltage 12 VDC ~ +48 VDC (non-regulated)
    Power Consumption 2.0 W
    LED Indicators
    L1 Run (Red)
    L2 Link/Act (Red)
    L3 10/100M (Orange)
    PoE
    Mechanical
    Flammability Fire Retardant Materials (UL94-V0 Level)
    Dimension (W x H x D) 72 mm x 118 mm x 35 mm
    Installation DIN-Rail or Wall mounting
    Environment
    Operating Temperature -25 ~ +75 °C
    Storage Temperature -40 ~ +80 °C
    Humidity 5 ~ 90% RH, non-condensing

    Ordering Informations

    DS-712 CR Device Server with 1 RS-232 port (RoHS)
