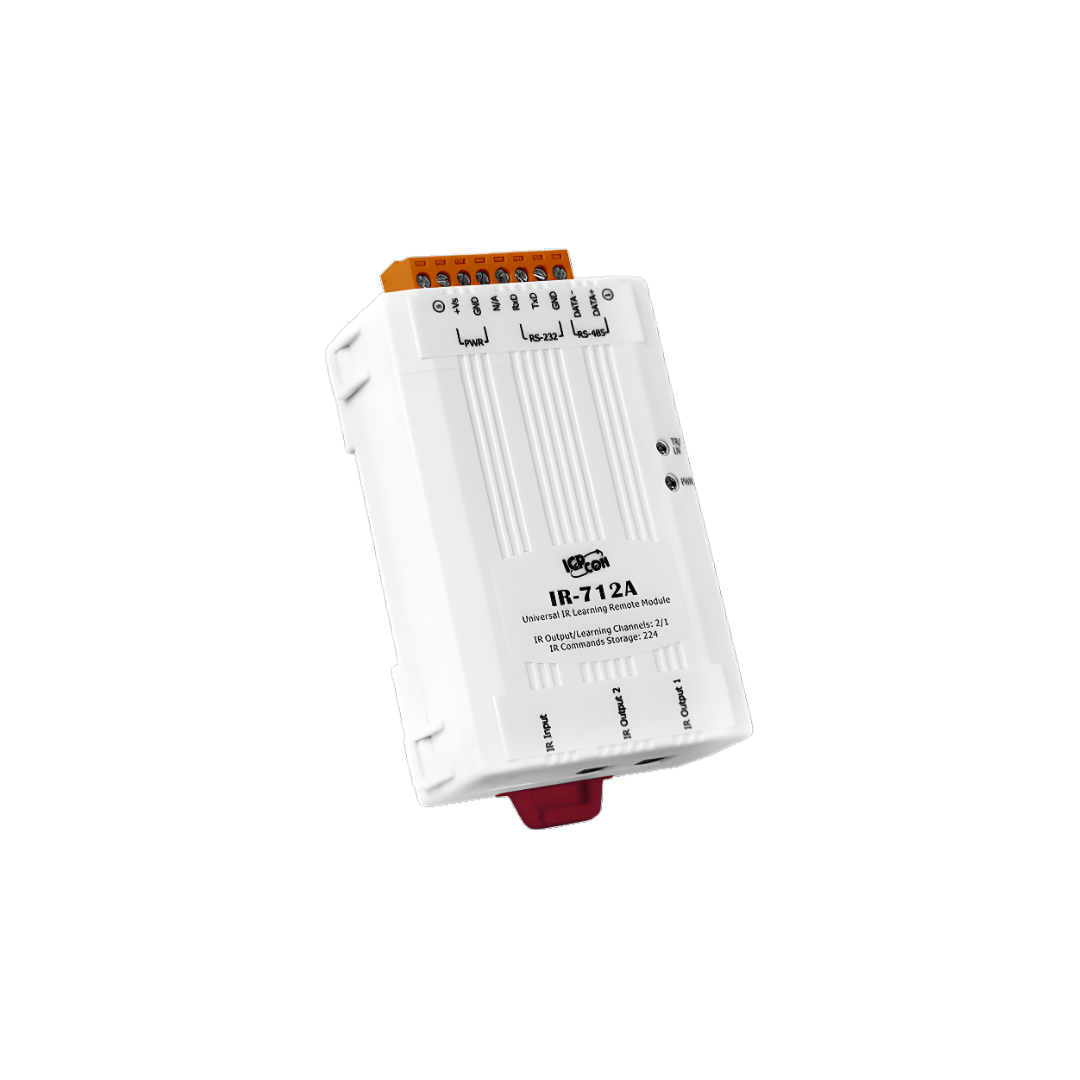

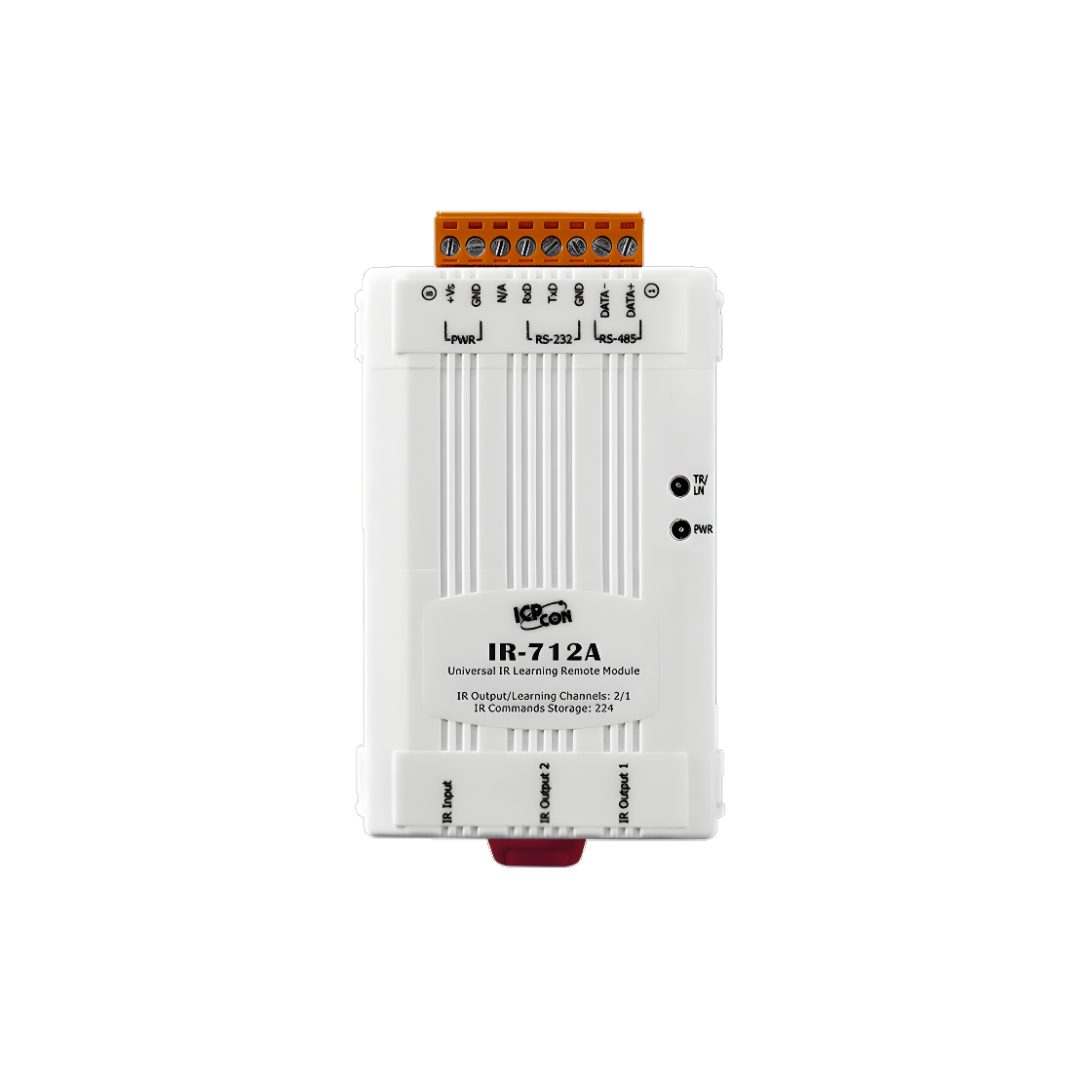

IR-712A

IR-712A is a universal IR learning remote module which can learn IR remote commands of diverse electronic devices. The learning commands can be stored in the module or saved to a file. IR-712A supplies 2 IR output channels for individual or simultaneous control on multiple devices. The accompanied RS-232 and RS-485 interfaces with Modbus/RTU protocol provide flexible expansion and control on the modules. Besides, IR-712A software utility provides users with easy configuration, learning, test and storage of IR commands. As a replacement of IR remote controls and a module that can be easily integrated with Modbus master devices (e.g. PAC, PLC, PC… etc.), IR-712A is well-suited for smart home and building automation.



Request For Quotation

    Description

    Applications

    • Home Entertainment Devices
    • Video Conferencing System
    • Surveillance System
    • e-Classroom service
    • Lighting Scenario Control
    • Home and Building Automation



    ICP DAS PAC with the IR Remote Application



    Features

    • 2 IR output channels.
    • 1 IR learning input
    • IR command capacity: 224
    • Supports 6 learning IR carrier frequencies: 33、36、37、38、40 and 56 kHz.
    • Supports RS-232 and RS-485 serial interface
    • Supports function code 0x06/0x10 of Modbus/RTU protocol for IR emitting
    • Provides ASCII String Command to emit IR commands.
    • Built-in Watchdog
    • RoHS Compliance
    • Provides API library for users’ program development easily

    Utility

    IIR utility (contains IR-712A utility) is the configuration tool for the IR-712A. It provides the following functions:

    • IR quantity configuration
    • IR commands learning and testing
    • Save IR learning commands to files
    • Get/Set IR learning commands from/to IR-712A
    • Reference to Modbus commands
    • Set/Reset basic settings of IR-712A
    • Shows the waveform of the IR learning commands.

    Hardware Specifications

    IR Interface
    IR Output Channels
    2 channels with 3.5 mm audio jack
    IR Learning Input 1 channel. Supports 6 IR carrier frequencies: 33, 36, 37, 38, 40, 56 kHz..
    IR Commands Storage
    224
    Serial Communication Interface
    Connector
    8-pin (RS-485, RS-232, and Power) screw terminal connecter
    COM1
    RS-232 (TxD, RxD, GND)
    COM2
    RS-485 (DATA+, DATA-)
    Baud Rate
    9600, 19200, 38400, 57600, 115200 bps
    Protocol
    Modbus/RTU (slave)
    LED Indicator
    LED
    2 LEDs: TR/LN (IR Transmitting/Learning) and PWR (Power)
    Power
    Power Supply
    +10 ~ +30 VDC
    Power Consumption
    Stand By 0.6 W
    Using 1 IR output 2.3 W
    Using 2 IR Outputs
    4 W (Max.)
    Mechanism
    Installation
    DIN-Rail mounting
    Dimensions
    52 mm x 93 mm x 27 mm (W x H x L)
    Dip Switch
    FW (Firmware update mode) / OP (Firmware operation mode)
    Environmental
    Operating Temperature
    -25°C ~ +75°C
    Storage Temperature
    -30°C ~ +80°C
    Humidity
    10%~90%, non-condensing

    Comparison Table

    IR-210 IR-712A IR-712-MTCP
    IR Output Channels 6 2
    IR Commands Storage 224 224 512
    Support IR Carrier Freq. 33, 36, 37, 38, 40 and 56 kHz
    Serial Comm. Interface RS-232 x 1and RS-485 x 1 Ethernet x 1
    Protocol Modbus/RTU (Slave) Modbus/TCP (Server)
    Size (W x H x L) 33 mm x 107 mm x 78 mm 52 mm x 93 mm x 27 mm 52 mm x 85 mm x 27 mm

    Ordering Informations

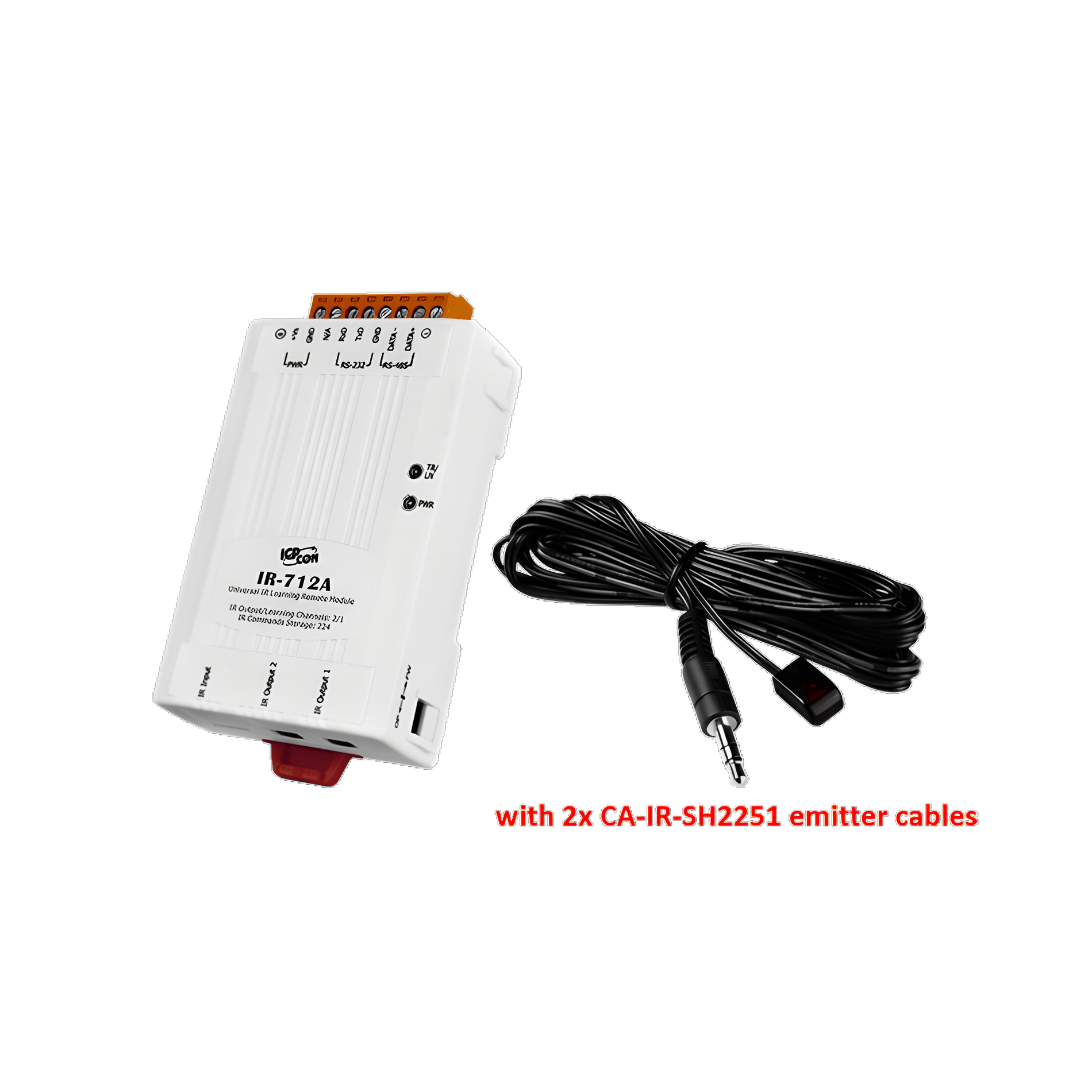

    IR-712A CR Universal IR Learning Remote Module (2 IR outputs, 224 IR Cmds), with 2 CA-IR-SH2251 & 1 CA-0910 (RoHS)
    IR-712A-5 CR
    Universal IR Learning Remote Module (2 IR outputs, 224 IR Cmds), with 2 CA-IR-SH2251-5 & 1 CA-0910 (RoHS)
