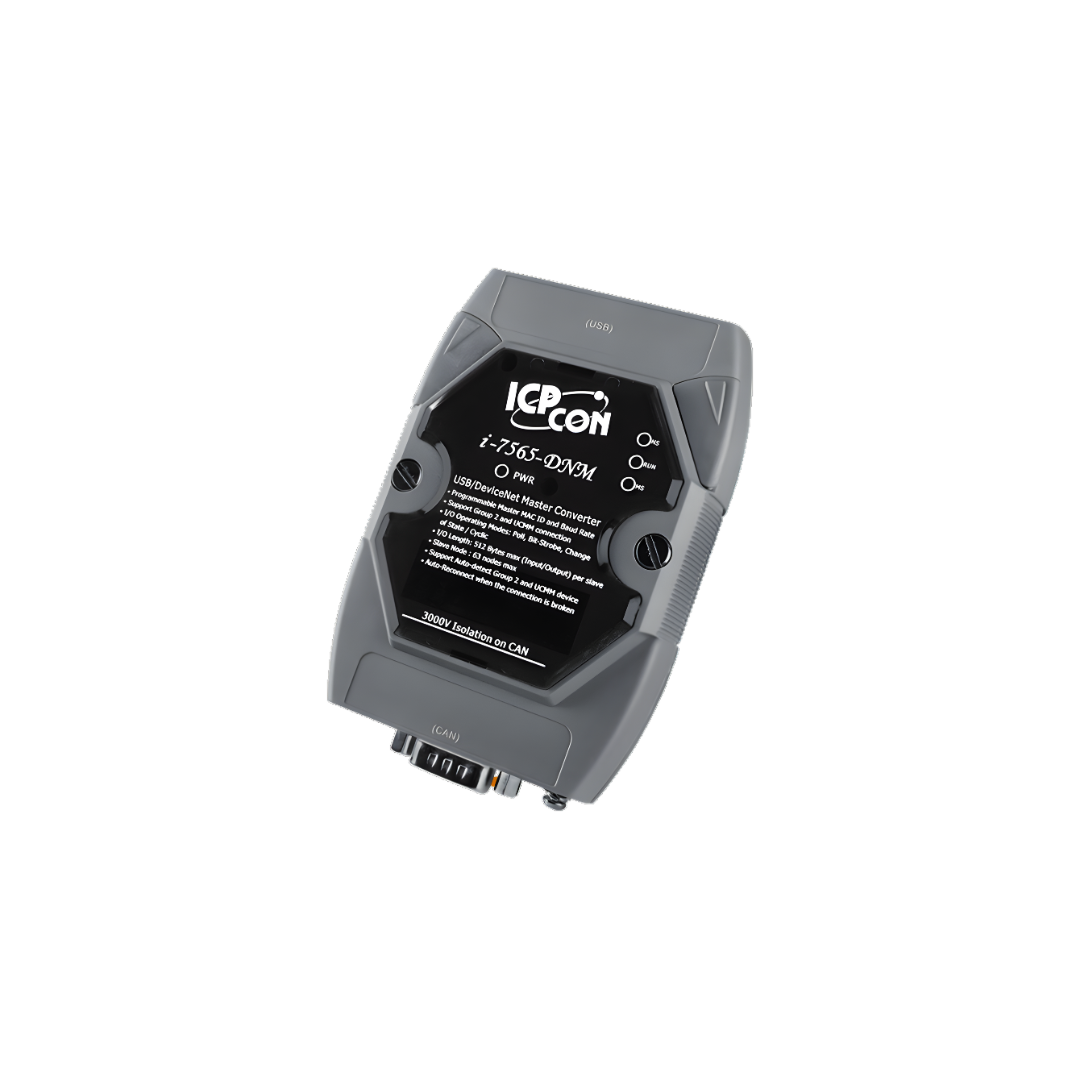

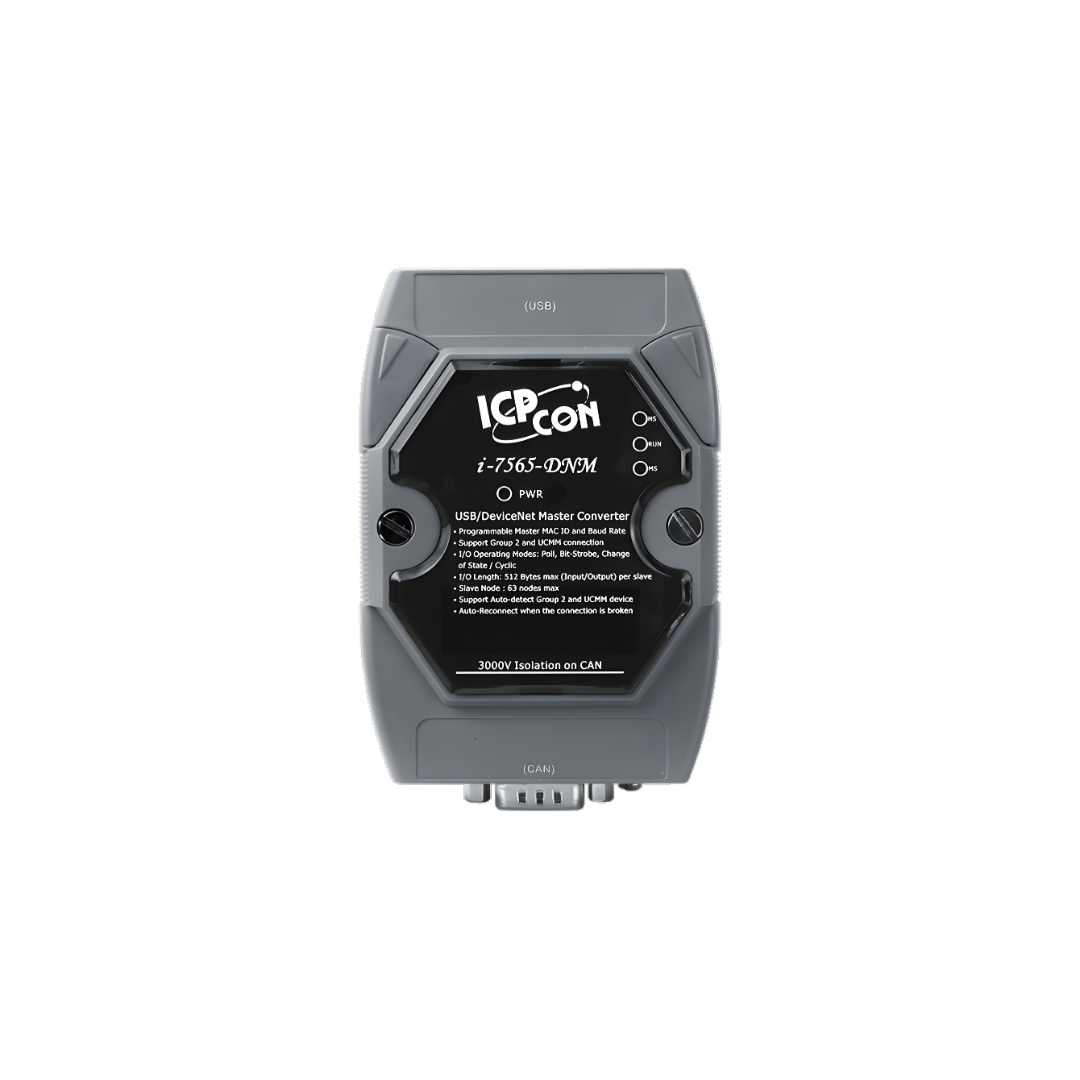

I-7565-DNM

I-7565-DNM can represent an economic solution of DeviceNet application and be a DeviceNet master device on the DeviceNet network. It is a “Predefined Master-Slave connection Set”. I-7565-DNM supports Group 2 only Server and UCMM functions to communication with slave devices. It has an independent CAN bus communication port and has the ability to cover a wide range of DeviceNet applications. Besides, I-7565-DNM uses the new CAN controller Phillips SJA1000T and transceiver 82C250, which provide bus arbitration, error detection with auto correction and re-transmission function.It can be installed on almost any windows-based system, for example Win98/Win2000/WinXP. It is popularly applied in the industrial automation, building automation, vehicle, marine, and embedded control network. In order to expand the DeviceNet functions of ICPDAS products, I-7565-DNM is developed for this purpose.





Request For Quotation

    Category:

    Description

    Applications



    Hardware Features

    • Fully compliant with USB 1.1/2.0(Full Speed)
    • No external power supply is required as I-7565 takes it’s power from the USB bus
    • DeviceNet Version: Volume I & II, Release 2.0
    • Programmable Master MAC ID and Baud Rate.
    • Baud Rate: 125k, 250k, 500k
    • Support Group 2 and UCMM connection
    • I/O Operating Modes: Poll, Bit-Strobe, Change of State / Cyclic
    • I/O Length: 512 Bytes max (Input/Output) per slave
    • Slave Node : 63 nodes max
    • Support Auto-Search slave device function.
    • Support on-line adding and removing devices
    • Support Auto-detect Group 2 and UCMM device
    • Auto-Reconnect when the connection is broken
    • Status LED: RUN, MS, NS
    • Free Software development tools for Windows
    • Windows XP/ Win7/ Win8/ Win10 32-bit and 64-bit drivers supported
    • Linux drivers supported



    Firmware Features

    • Programmable Master MAC ID
    • Programmable transfer-rate 125K, 250K, 500K
    • Each port support maximum nodes up to 64
    • Support Group 2 Only Server functions
    • Support UCMM functions
    • Predefined Master-Slave Connection Set
    • The maximum Fragment number is (Input/Output) up to 64
    • Support I/O Operation Mode: Poll, Bit-Strobe and Change Of State/Cyclic
    • Support Auto-Scan slave device function
    • Support on-line adding and removing devices
    • Support Auto-Reconnect when the connection is broken

    We have communicated with the following DeviceNet slaves



    • Allen-Bradley PowerFlex series DeviceNet Inverters
    • BECKHOFF CX1500-B520 series DeviceNet I/O modules
    • BECKHOFF BK5250 series DeviceNet I/O modules
    • MKS 683 series DeviceNet exhaust throttles
    • MKS MFC (Mass Flow Controller) series DeviceNet devices
    • MKS DELTA II FRC (Flow Ratio Controller) DeviceNet devices
    • MKS DC Power Generator (OPT- xxx) DeviceNet devices
    • OMRON DRT1-ID/ODxx series DeviceNet I/O modules
    • OMRON DRT2-MDxx series DeviceNet I/O modules
    • COSMOS PS-7 series DeviceNet gas detectors
    • CELERITY UNIT IFC-125 series DeviceNet devices
    • Allen-Bradley PowerFlex AC Drives
    • Allen-Bradley PowerFlex AC Drives with DriveLogix
    • Allen-Bradley PowerFlex DC Drives
    • OMRON DRT2-ID08(-1)/MD16
    • OMRON DRT2-OD08/MD16-1
    • OMRON DRT2-OD08-1
    • OMRON DRT2-ID16(-1)/OD16(-1)
    • OMRON GRT1-DRT
    • OMRON C200HW-DRT21
    • Swagelok MS-VCM-D-6-0, MS-VCM-D-6-2 DeviceNet Valve
    • Swagelok SS-PTX-D-G500-S4-K DeviceNet Transducer
    • Swagelok SS-PTX-D-G500-SM-K DeviceNet Transducer
    • Weidmueller SAI-AU M12 DN 16DI/8DO
    • Weidmueller SAI-AU M12 DN GW 16DI
    • Weidmueller SAI-AU M12 DN AI/AO/DI
    • ADVANCED ENERGY Apex RF generators and power-delivery
    • SMC ITV series Electro-Pneumatic Regulator
    • SMC Directional Control Valves
    • SICK DME5000 series Distance Sensor
    • MTS Temposonics R-Series Position Sensors
    • PFEIFFER VACUUM HiPace series turbopumps
    • Allen-Bradley(AB) 1769-ADN DeviceNet Adapter
    • MKS Type T3B and T3P Valves With DeviceNet Interface
    • ABB DSQC 350A DeviceNet/Allen Bradley remote gateway
    • MTS Temposonics R-Series sensor
    • MKS MicroNode I/O series module
    • LINCOLN Power Wave AC/DC 1000 device
    • Festo CTEU-DN Bus nodes
    • MKS Baratron Type DMB Capacitance Manometer
    • Sevenstar CS200/CS220 Mass Flow Controller
    • Allen-Bradley(AB) E3 & E3 Plus Solid-State Overload Relay
    • RF/MW Generators of DAIHEN
    • KEYENCE NU-DN1



    Software Utility Features

    Diagnosis

    This utility supports to search all devices and specific devices in the network. These functions help the users to configure the connection of the slave devices. Anymore, the software also can diagnose the remote slave devices when building the DeviceNet network.

    Configuration

    This software supports the users to configure the I/O connection of the devices by searching devices or manual setting. After configuring the I/O connection, the information would be saved into the EEPROM of the I-7565-DNM. The users can export the data from the EEPROM easily. Correspondingly, the users can import the data into the EEPROM.

    Remote I/O access
    The software utility can easily to access the I/O data of all the slave devices. The users can monitor the input data of the specific slave device and change the output data to the remote slave device with this utility.
    DeviceNet for LabVIEW Application Tool
    In order to develop complex DeviceNet applications, we provide a LabVIEW driver for this purpose. The I-7565-DNM LabVIEW driver is the function reference to the DeviceNet master. We provide many useful VI functions in the LabVIEW environment. We also have the “DeviceNet Master Utility” to configure the DeviceNet hardware in your PC. The users not only operate easily and develop application rapidly, but also reduce the complexity of applications. The users can communicate with the remote DeviceNet devices in a few simple steps and need not to know about the detail of the DeviceNet protocol. It is the best tool to develop various distributed systems and other industrial applications software on DeviceNet network.



    Hardware Specifications

    Hardware
    CPU
    		 80186, 80 MHz or compatible
    SRAM/Flash/EEPROM
    512 KB / 512 KB / 16 KB
    ESD Protection
    2 kV class A
    CAN Interface
    Controller
    NXP SJA1000T with 16 MHz clock
    Transceiver
    NXP 82C250
    Channel number
    1
    Connector

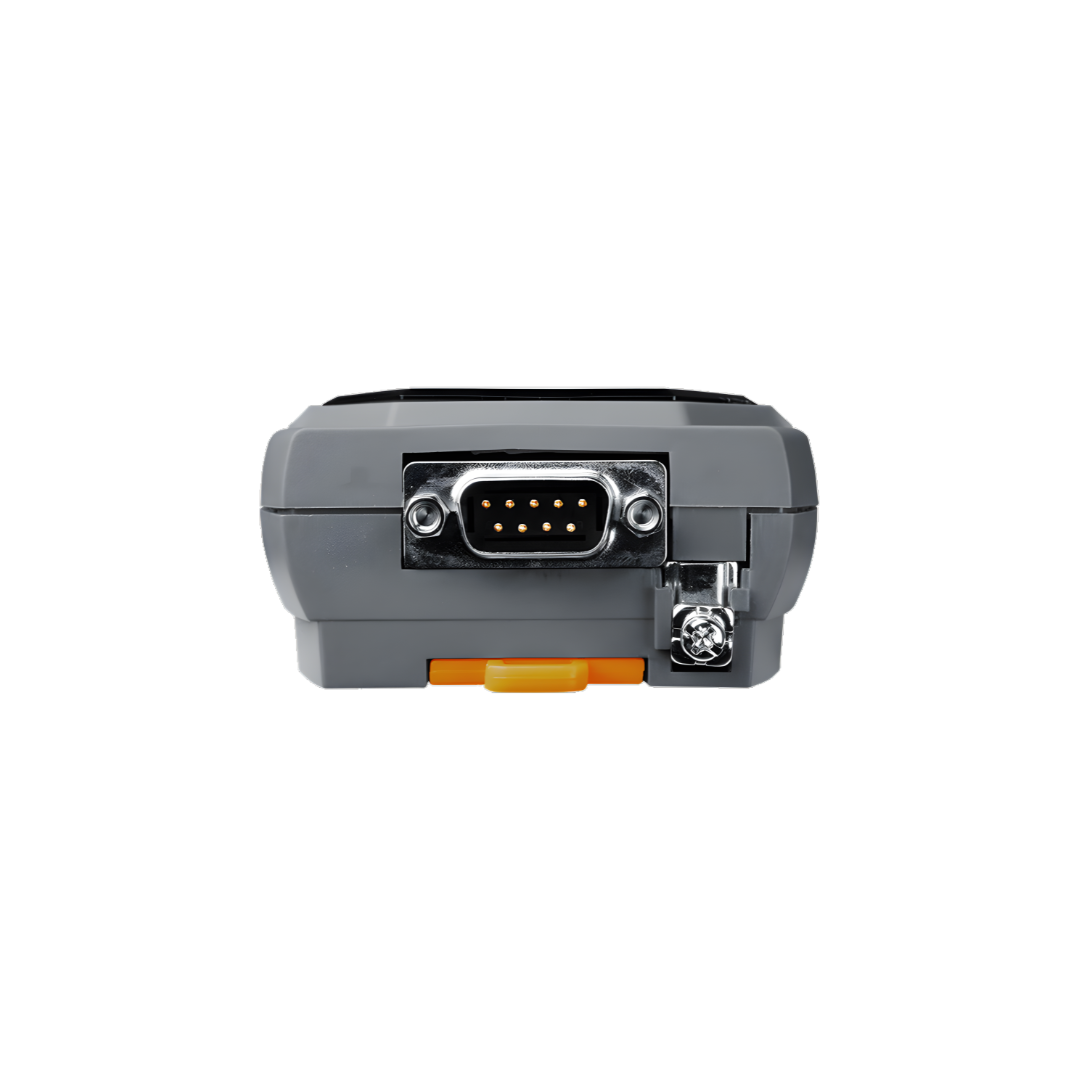

    9-pin male D-Sub (CAN_GND, CAN_L, CAN_SHLD, CAN_H, CAN_V+, N/A for others)
    Baud Rate (bps)
    125 k, 250 k, 500 k
    Transmission Distance (m)
    Depend on baud rate (for example, max. 1000 m at 50 kbps )
    Isolation
    3000 VDC for DC-to-DC, 2500 Vrms for photo-couple
    Terminal Resistor
    Jumper for 120 Ω terminal resistor
    Specification
    ISO-11898-2, CAN 2.0A and CAN 2.0B
    Protocol
    DeviceNet Volumn I ver2.0, Volumn II ver2.0
    USB Interface

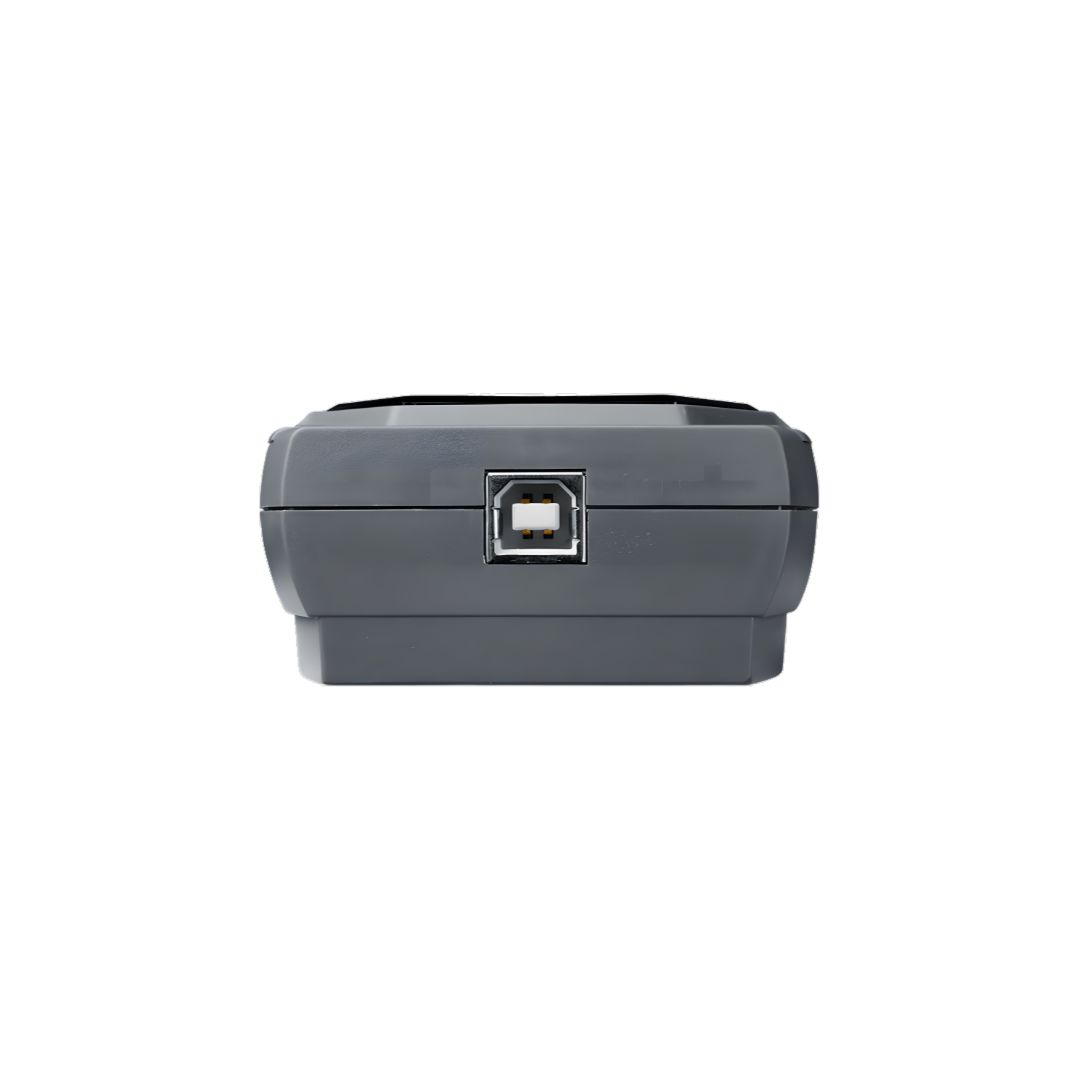

    Connector
    USB Type B
    Transmission speed
    921.6 kbps
    Specification
    USB 1.1 and USB 2.0
    LED
    Round LED
    PWR LED, RUN LED, NS LED, MS LED
    Software
    Driver
    Win XP/ Win7/ Win8/ Win10 32-bit and 64-bit , Linux driver
    Library
    x64 DLL, .NET DLL, VB6 bas, VC6 DLL, BCB6 DLL
    Power
    Power supply
    By USB interface
    Power Consumption
    3 W
    Mechanism
    Installation
    DIN-Rail
    Dimensions
    72mm x 101mm x 33mm (W x L x H)
    Environment
    Operating Temp.
    -25 ~ 75 ℃
    Storage Temp.
    -30 ~ 80 ℃
    Humidity
    10 ~ 90% RH, non-condensing

    Hardware Structure

    Pin Assignment





    Performance Test

    Ordering Informations

    I-7565-DNM-G CR
    USB/DeviceNet Master communication Converter with D-sub 9-pin connector
