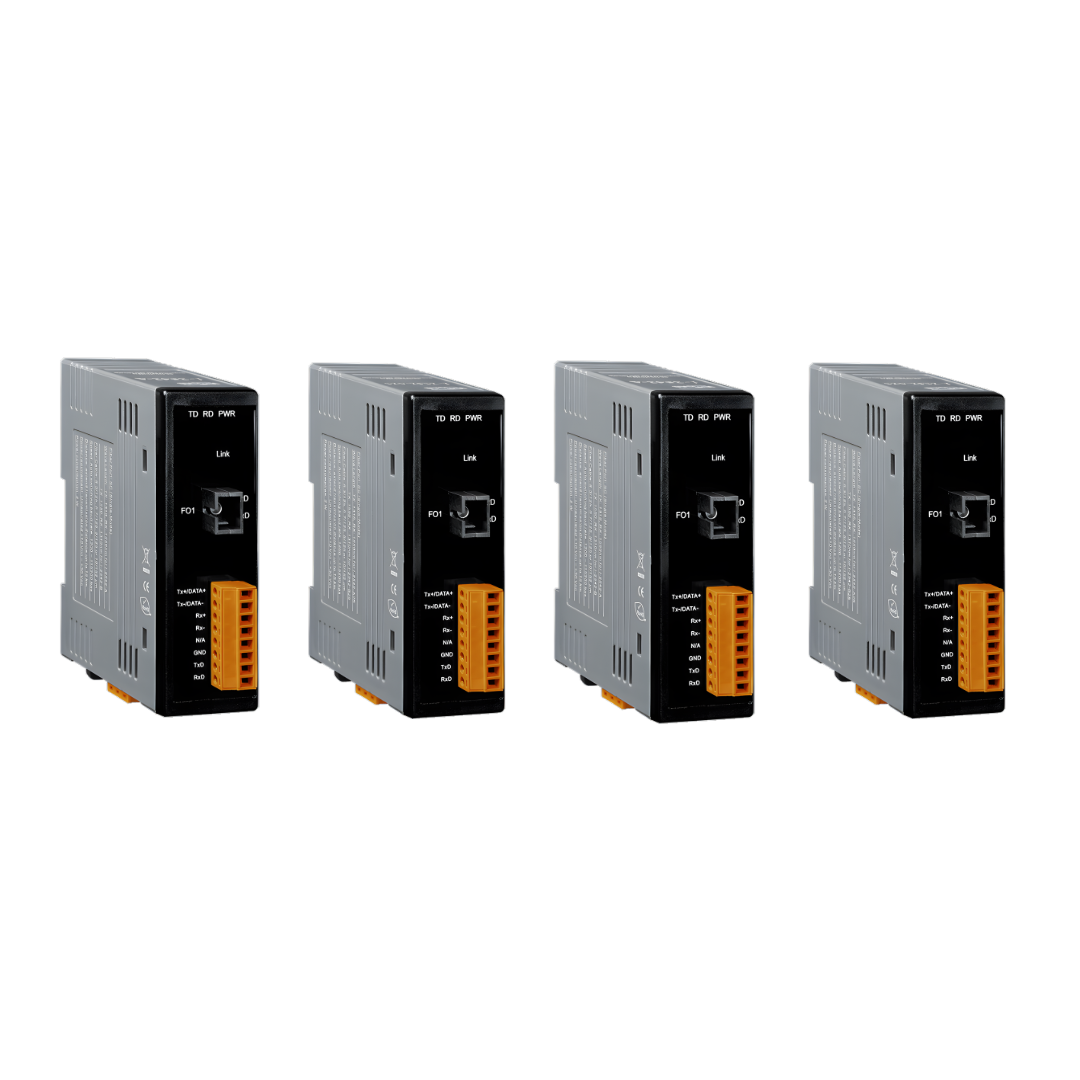

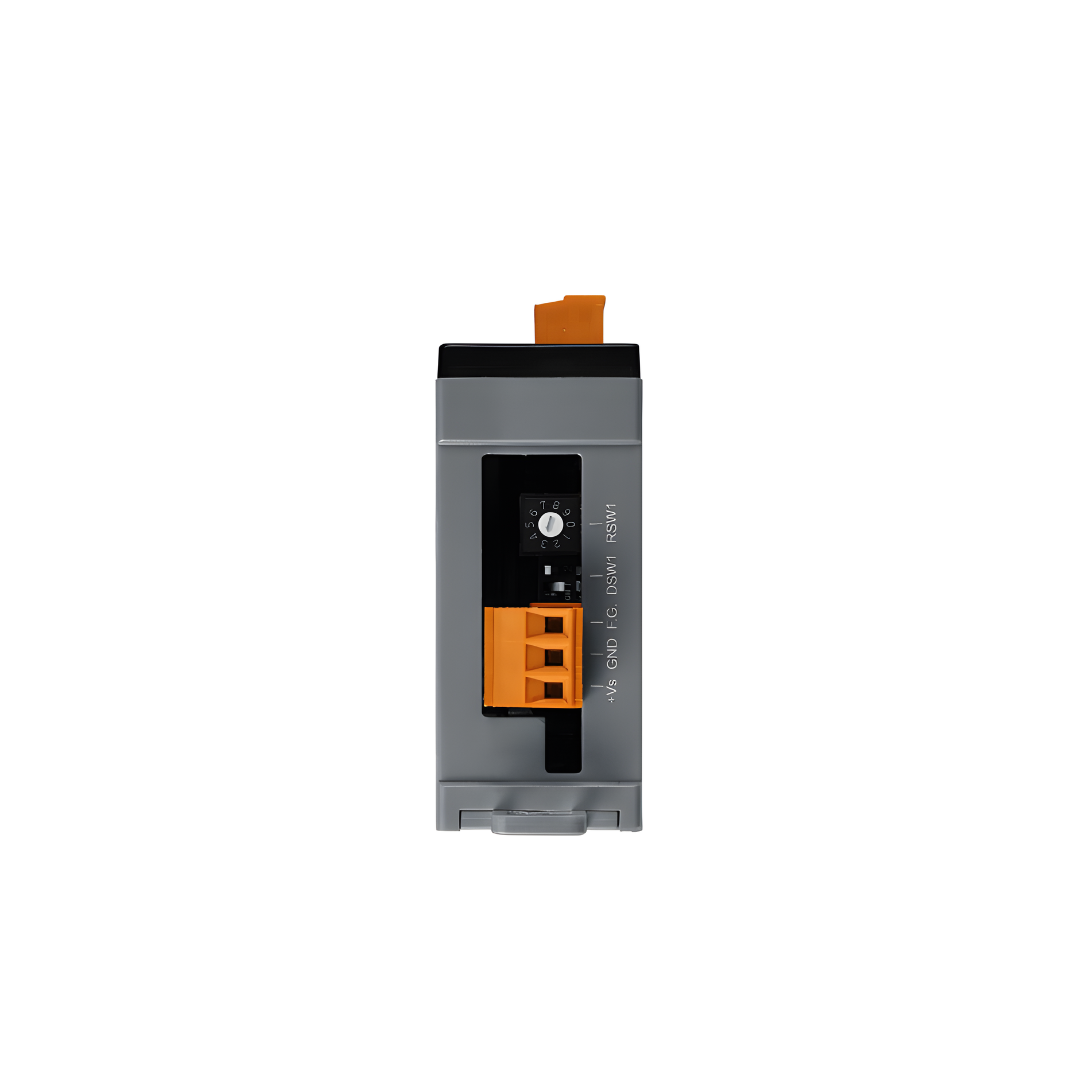

I-2542 series
|
| RS-232/422/485 to Single-Mode Fiber optic converter |
The I-2541 is an RS-232/422/485 to fiber optic converter that secures data transmission by using fiber optic transmission to provide immunity from EMI/RFI interference. The I-2541 is used for RS-232/422 point-to-point connections and RS-485 multi-drop applications for transmitting a signal up to 2 km and is the perfect solution for applications where transmission must be protected from electrical exposure, surges or chemical corrosion.
|
The I-2542 series of Single-Strand Fiber Converters supports Wavelength Division Multiplexing (WDM) technology that allows two independent data communication channels to transmit and receive over one standard, single mode, fiber optic line. This not only doubles your existing bandwidth, but also effectively reduces the cost of creating a new fiber optic infrastructure.
|
Request For Quotation
Description
Applications
Features
- Automatic RS-485 Direction Control
- Optical fibers enable transmission of 2 km for I-2541 ,15 km for
- I-2542-A/I-2542-B and 25 km for I-2542-A25/I-2542-B25
- Avoids lightning strikes and EMI/RFI interference
- Supports +10 VDC ~ +30 VDC
- ESD Protection for the RS-232/422/485 Data Line
- DIN-Rail Mounting
- Supports operating temperatures from -25 °C ~ +75 °C
Hardware Specifications
| Models | I-2541 | I-2542 series | ||
| Interface | ||||
| Fiber Interface | Fiber Port | Multi Mode; ST connector | Single-Mode; SC connector | |
| Wavelength | 850 nm | TX: 1310, RX: 1550 nm for I-2542-A/I-2542-A25 TX: 1550, RX: 1310 nm for I-2542-B/I-2542-B25 |
||
| Fiber Cable | 50/125, 62.5/125, 100/140 μm | 8.3/125, 8.7/125, 9/125 or 10/125 μm | ||
| Distance | 2 km, (62.5/125 μm recommended) | 15 km for I-2542-A/I-2542-B 25 km for I-2542-A25/I-2542-B25 (9/125 μm recommended) |
||
| Serial Interface | RS-232 | The RS-232, RS-422 and RS-485 cannot be used simultaneously | TxD, RxD, GND | |
| RS-422 | TxD+, TxD-, RxD+, RxD- | |||
| RS-485 | Data+, Data- | |||
| RS-422/485 Transmission Distance | Max. 1,200 m at 9.6 kbps; Max. 400 m at 115.2 kbps (Belden 9841 2P twisted-pair cable, if different cables are used, the transmission distance may change) |
|||
| Self-Tuner Asic Inside | Yes | Fixed baud rate setting via rotary switch | ||
| Speed | 300 ~ 115200 bps | 1200 ~ 115200 bps | ||
| ESD Protection | Yes | |||
| RS-232/422/485 Connector | Removable 8-Pin Terminal Block | |||
| LED Indicators | ||||
| Power | Yes | |||
| Power | ||||
| Input Voltage Range | +10 VDC ~ +30 VDC (Non-isolated) | |||
| Power Consumption | 1.5 W | 2 W | ||
| Mechanical | ||||
| Casing | Plastic | |||
| Flammability | Fire-Retardant Materials (UL94-V0 Level) | |||
| Dimensions (W x L x H) | 33 mm x 89 mm x 107 mm | |||
| Installation | DIN-Rail Mounting | |||
| Environment | ||||
| Operating Temperature | -25 °C ~ +75 °C | |||
| Storage Temperature | -30 °C ~ +75 °C | |||
| Humidity | 10 ~ 90% RH, non-condensing | |||
Ordering Informations
| I-2541 CR | RS-232/422/485 to Mulit-Mode 2 Km, ST Fiber optic converter (RoHS) |

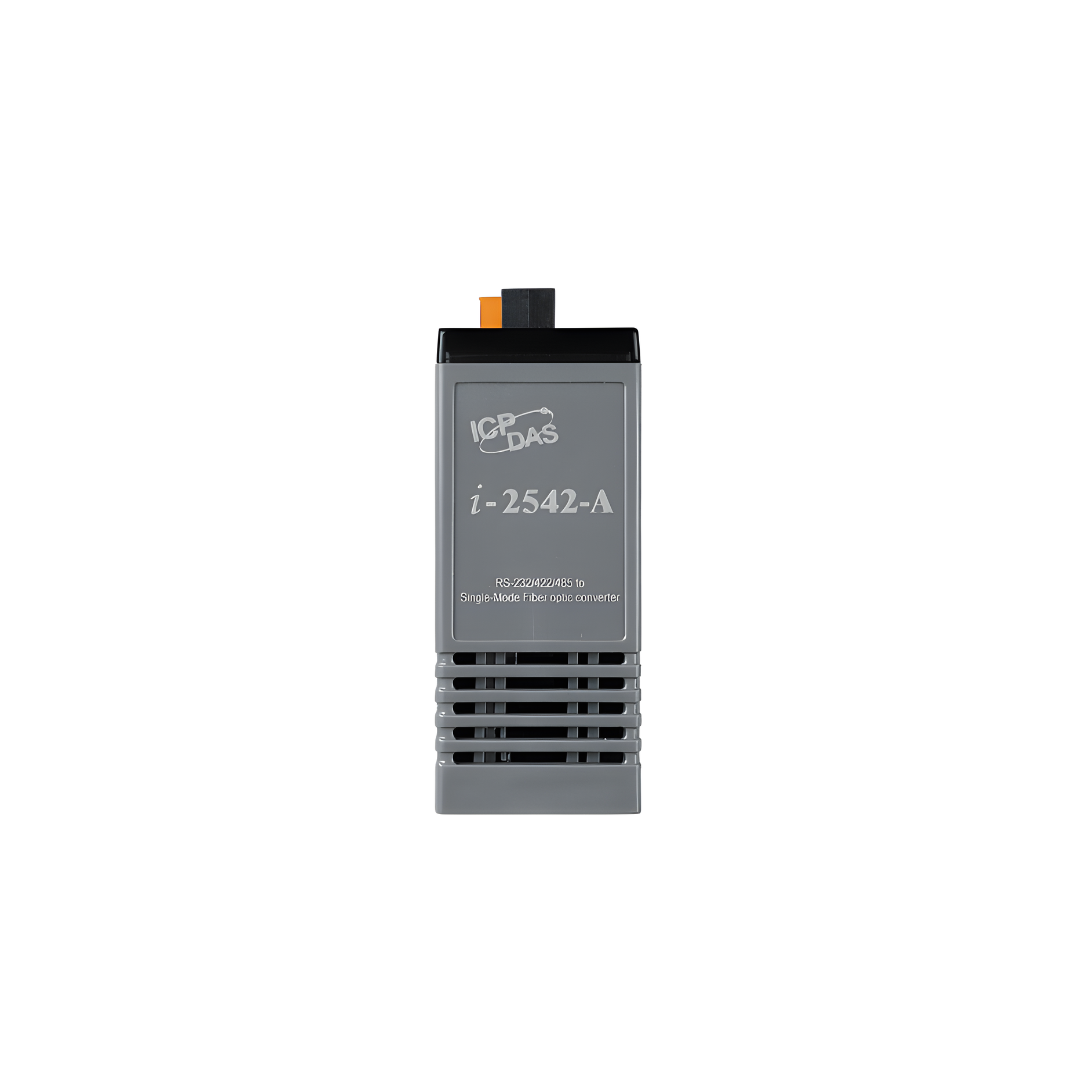

| I-2542-A CR | RS-232/422/485 to Single-Mode 15 Km, SC Fiber optic converter, TX 1310 nm, RX 1550 nm (RoHS) |

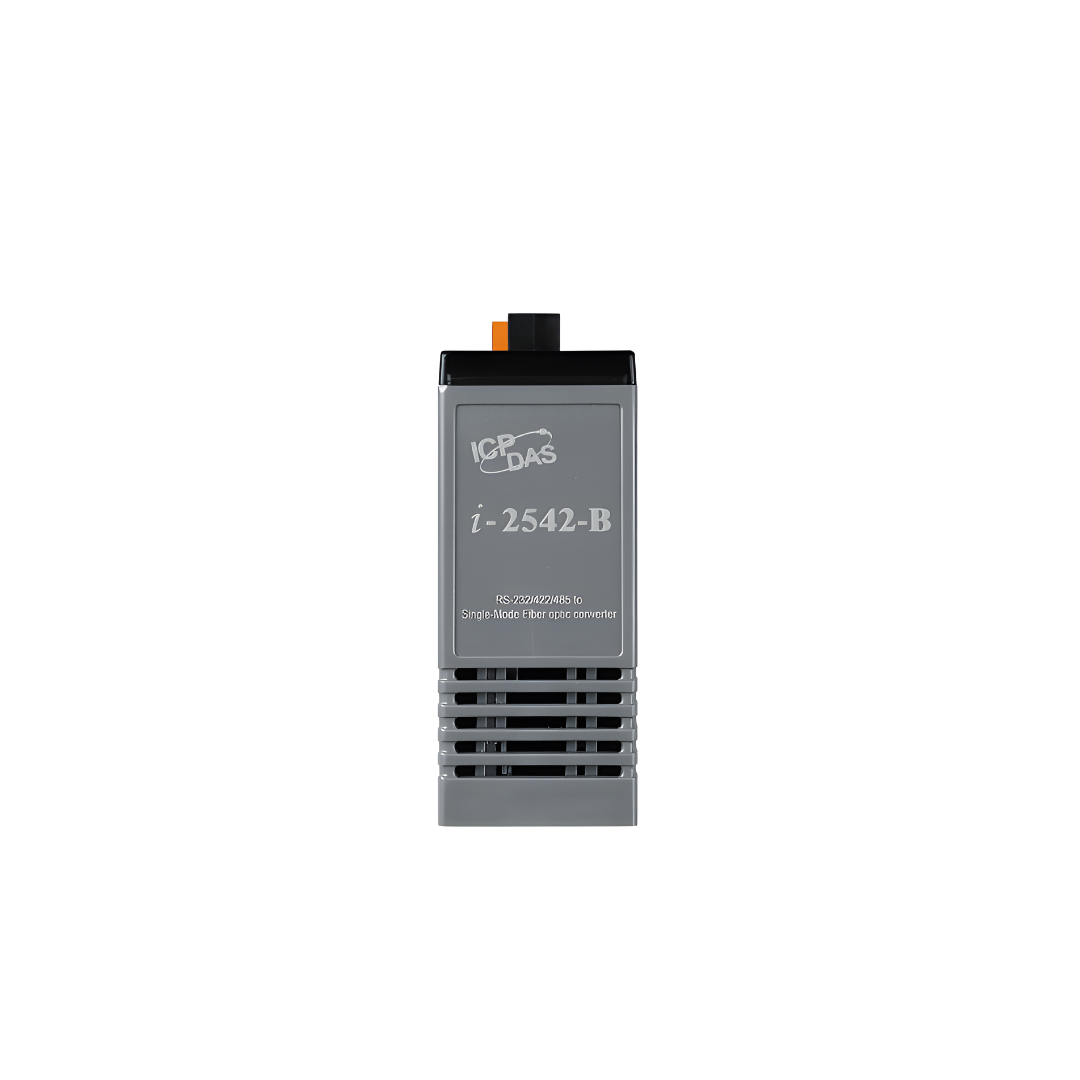

| I-2542-B CR | RS-232/422/485 to Single-Mode 15 Km, SC Fiber optic converter, TX 1550 nm, RX 1310 nm (RoHS) |
| I-2542-A25 CR | RS-232/422/485 to Single-Mode 25 Km, SC Fiber optic converter, TX 1310 nm, RX 1550 nm (RoHS) |
| I-2542-B25 CR | RS-232/422/485 to Single-Mode 25 Km, SC Fiber optic converter, TX 1550 nm, RX 1310 nm (RoHS) |
