Wireless 4-ch Voltage Input, 2-channel Voltage Output,
2-channel Digital Input and 2-channel Digital Output Module

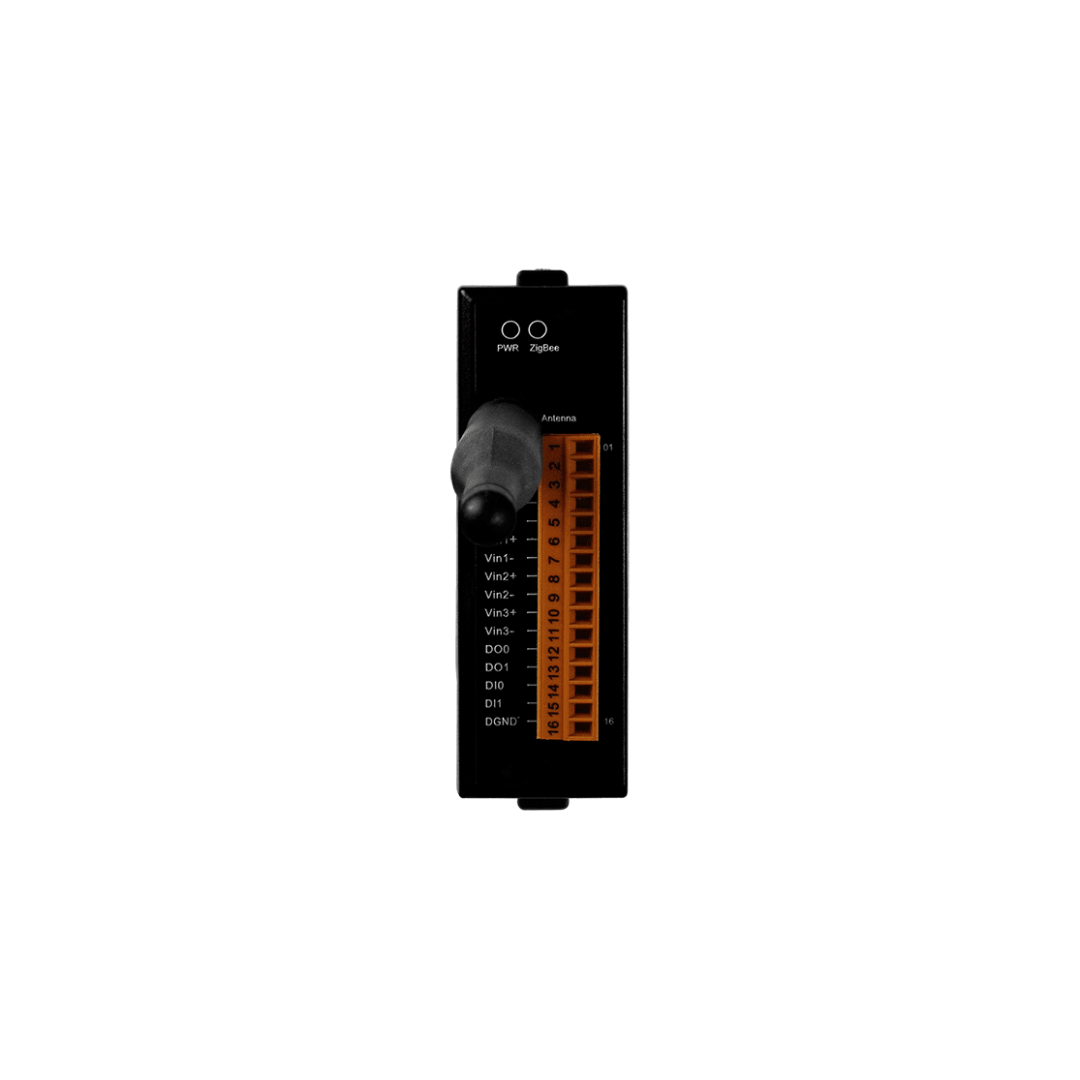

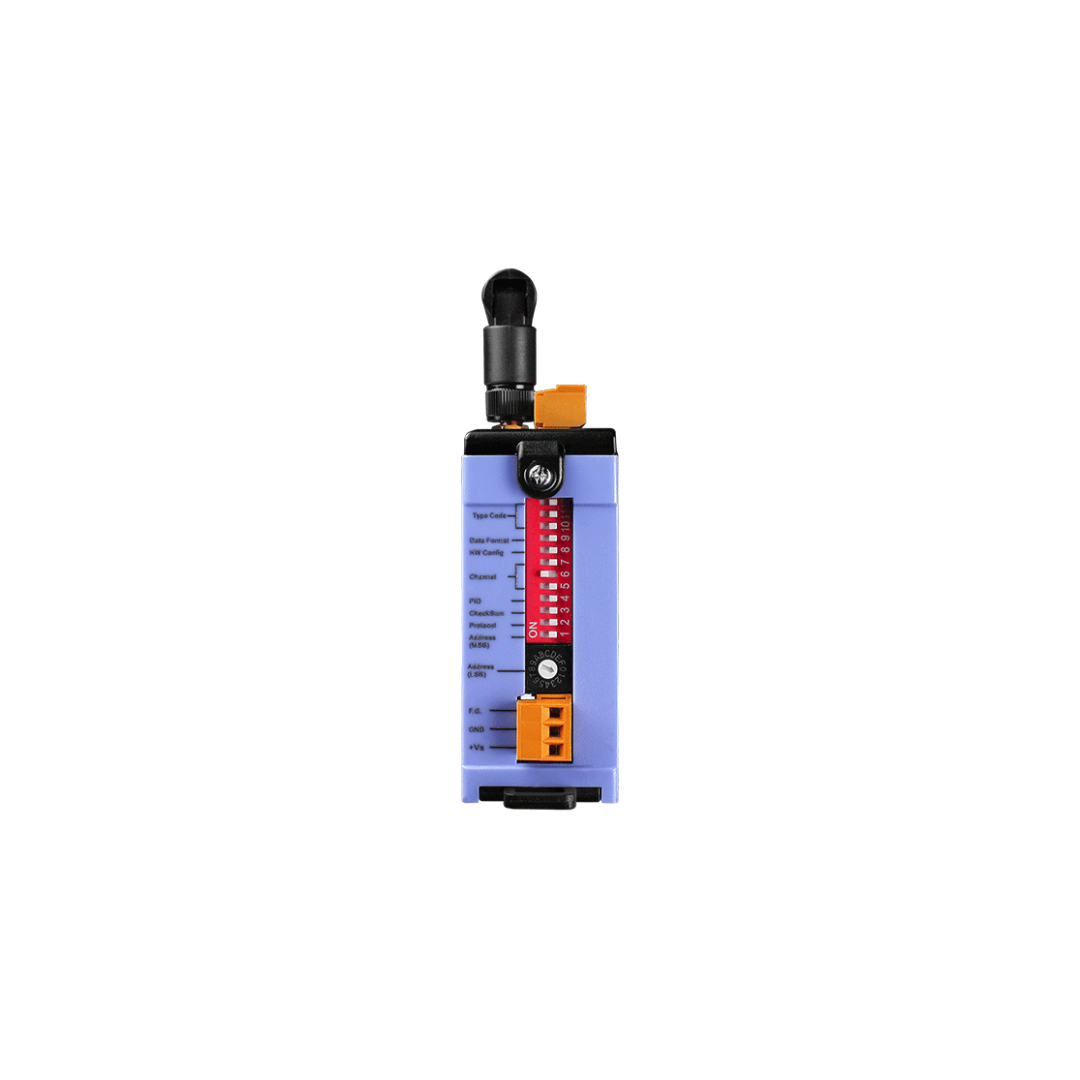

The ZT-2026 is a wireless ZigBee module that offers 4 differential analog input channels(Current input requires optional external 125 Ω resistor), 2 analog output channels, 2 digital input channels and 2 digital output channels and provides a programmable analog input and output range. Each analog input channel can be configured to an individual range and each has 240 Vrms overvoltage protection. There are also options for a power-on value and a safe value. Users can easily configure the module address, protocol, checksum, ZT-PID, ZT-channel and type code settings using a combination of rotary and DIP switches.

Request For Quotation



    Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote Diagnosis, Testing Equipment.


    • ISM 2.4 GHz Operating Frequency
    • Fully Compliant with 2.4 G / ZigBee Specifications
    • Wireless Transmission Range up to 700 m
    • External DIP and Rotary Switches for easy Configuration
    • GUI Configuration Software (Windows Version)
    • 4 AI, 2 AO, 2 DI and 2 DO Channels
    • Individual Channel Configuration
    • Overvoltage Protection is up to 240 Vrms
    • Configurable Power-on Value Settings
    • Configurable Safe Value Settings
    • ±4 kV ESD Protections (Conact for each Terminal)
    • DIN-Rail Mounting

    I/O Specifications

    Analog Input
    Input Channels 4 Differential
    Input Types ±10 V, ±5 V, ±1 V, ±500 mV, ±150 mV or -20 mA ~ +20 mA
    (Requires Optional External 125 Ω Resistor)
    Resolution 16-bit
    Sampling Rate 10 Samples/Second (Total)
    Accuracy ±0.1% of FSR
    -3dB Bandwidth 15.7 Hz
    Common Mode Rejectio 86 dB
    Normal Mode Rejection 100 dB
    Input Impedance >2 MΩ
    Overvoltage Protection 240 Vrms
    Individual Channel Configuration Yes
    Analog Output
    Output Channels 2
    Output Types ±10 VDC, ±5 VDC, 0 ~ 10 VDC or 0 ~ 5 VDC
    Resolution 12-bit
    Accuracy ±0.1% of FSR
    Programmable Output Slope 0.0625 ~ 512 V/Second
    Voltage Capability 20 mA @ 10 V
    Power-on Value Yes
    Safe Value Yes
    Digital Input
    Input Channels 2 (Sink)
    On Voltage Level 3.5 VDC ~ 50 VDC
    Off Voltage Level 1 VDC Max.
    Input Impedance 10 KΩ
    Event Counters Channels : 2
    Max. Count: 16-bit (65535)
    Max. Input Frequency: 50 Hz
    Min. Pulse Width: 10 ms
    Digital Output
    Output Channels 2 (Sink)
    Output Types Isolated Open Collector
    Max. Load Current 700 mA/channel
    Load Voltage +5 VDC ~ +50 VDC
    Short Circuit Protection Yes
    Power-on Value Yes
    Safe Value Yes

    System Specifications

    Communication Interface
    Wireless Standards ZigBee 2007 Pro
    Transmission Power 11 dBm (FCC Certificated) (Max. 19 dBm)
    Antenna 2.4 GHz – 5 dBi Omni-directional Antenna
    Transmission Range (LoS) 700 m (Typical)
    Certification FCC/FCC ID, CE (RED excluded)
    Max. Slaves in a ZigBee Network 255
    ZB-100R/ZB-100T Support
    Protocols Supports DCON and Modbus RTU Protocols
    Dual Watchdog Yes, Module (1.6 Seconds), Communication (Programmable)
    LED Indicators
    Power 1 LED, red
    ZigBee Communication 1 LED, green
    Intra-module Isolated, Field-to-Logic 2500 VDC (for AI, AO, DI and DO)
    EMS Protection ESD, Surge, EFT
    Input Voltage Range +10 VDC ~ +30 VDC (Reverse Polarity Protection)
    Power Consumption 2.1 W Max.
    Flammability Fire Retardant Materials (UL 94V-0 Level)
    Dimensions (L x W x H) 87 mm x 33 mm x 110 mm
    Installation DIN-Rail
    Operating Temperature -25 °C ~ +75 °C
    Storage Temperature -30 °C ~ +80 °C
    Relative Humidity 10 ~ 90% RH, Non-condensing

    Ordering Informations

    ZT-2026 CR Wireless 4-ch Voltage Input, 2-channle Voltage Output, 2-channle Digital Input and 2-channle Digital Output Module (ZigBee Router) (RoHS)
