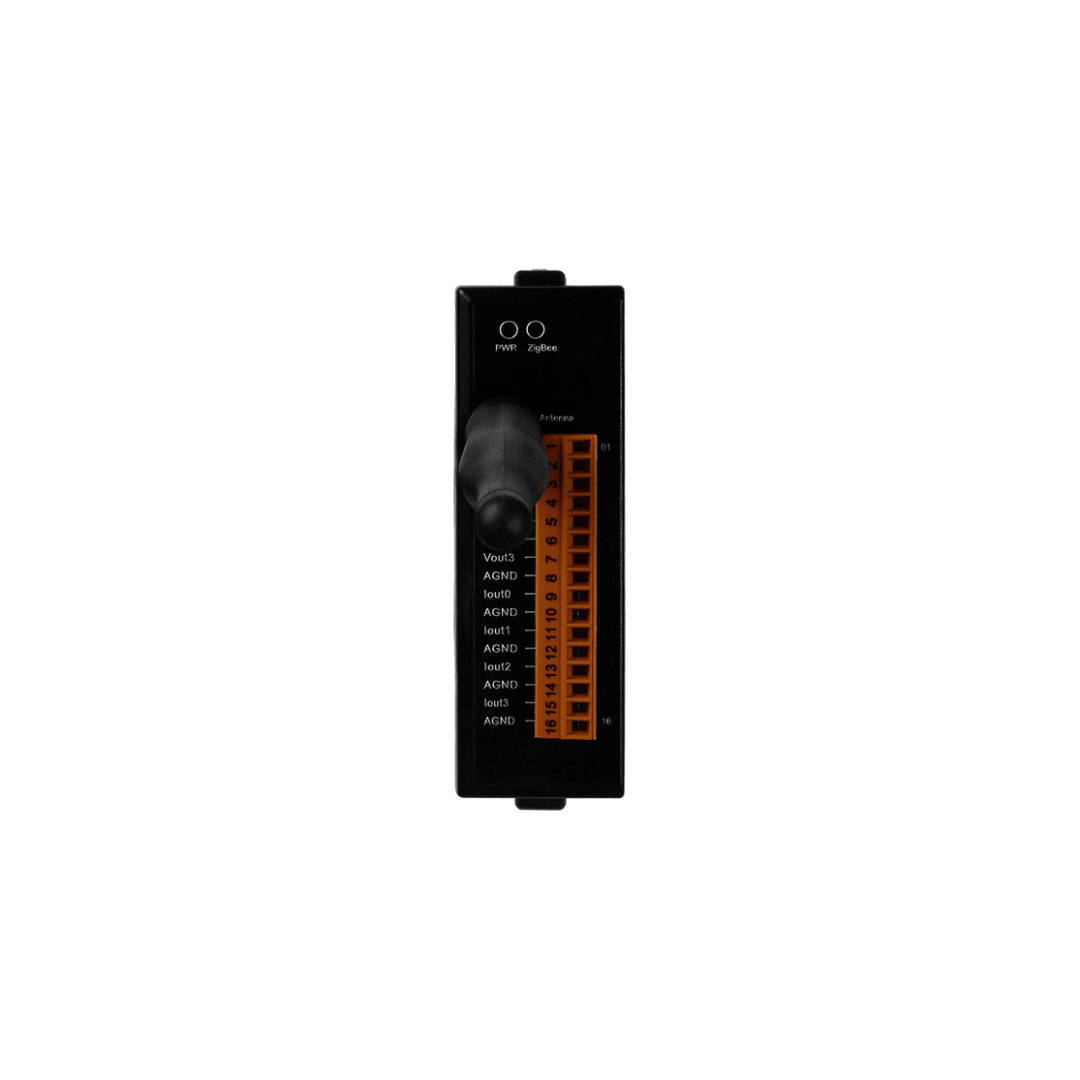

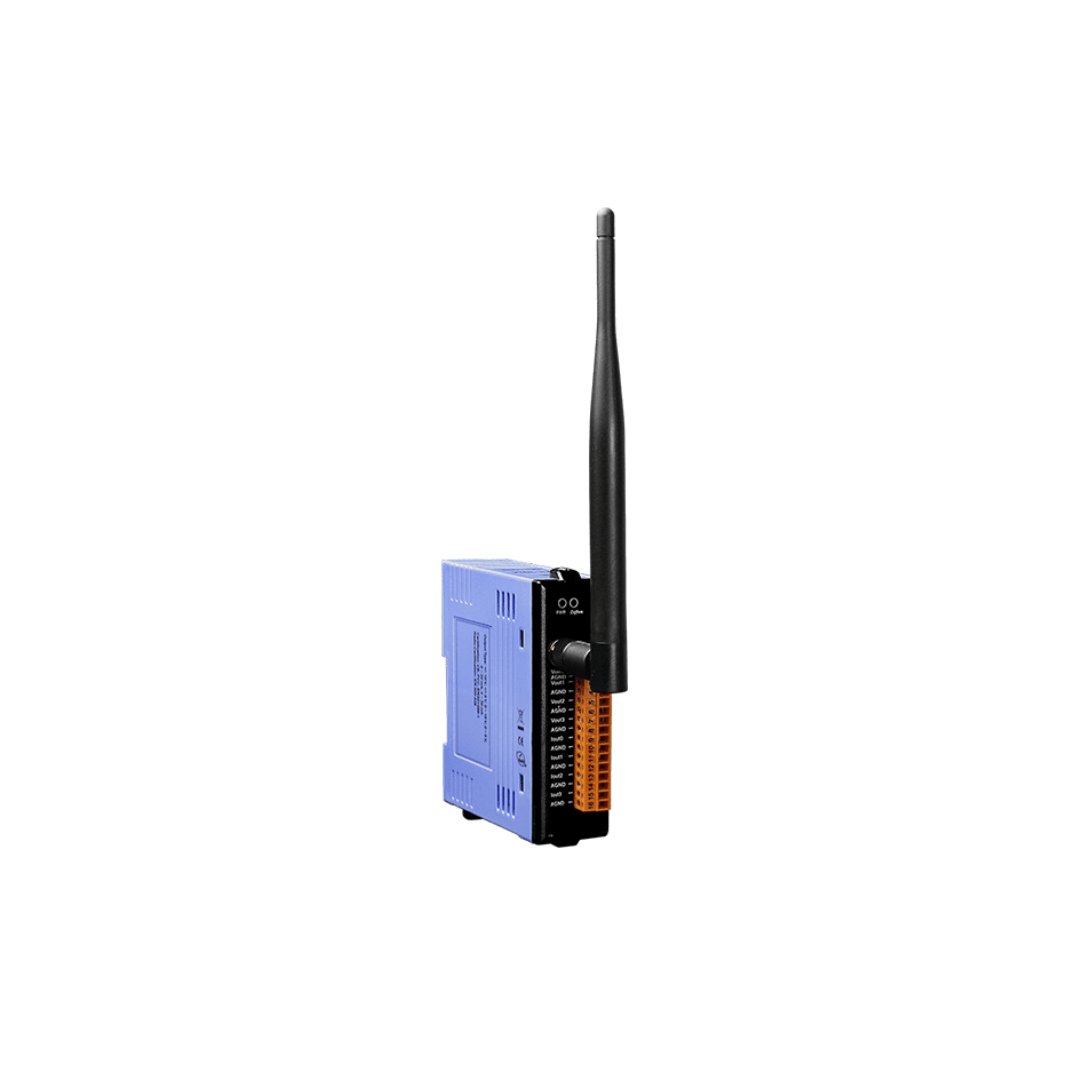

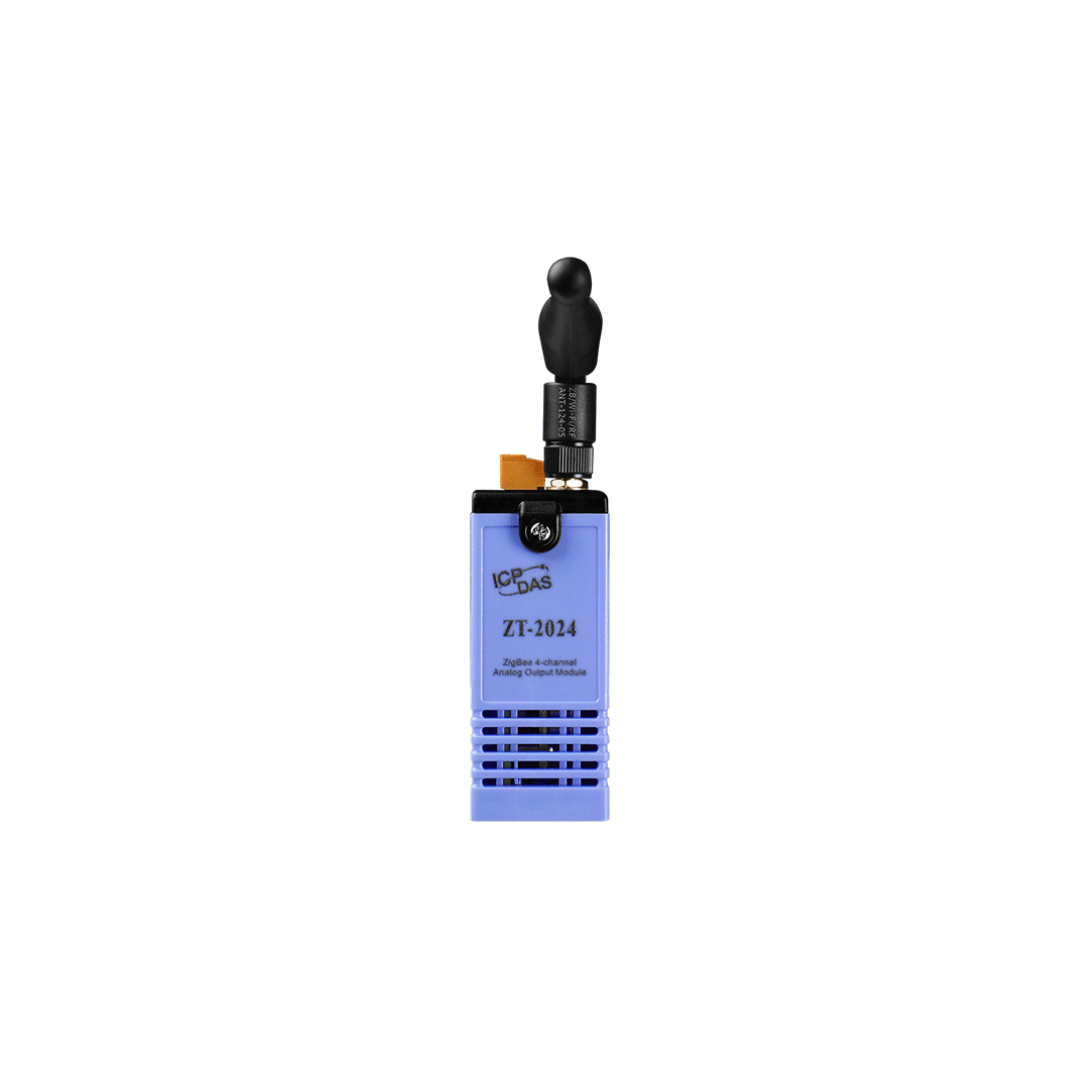

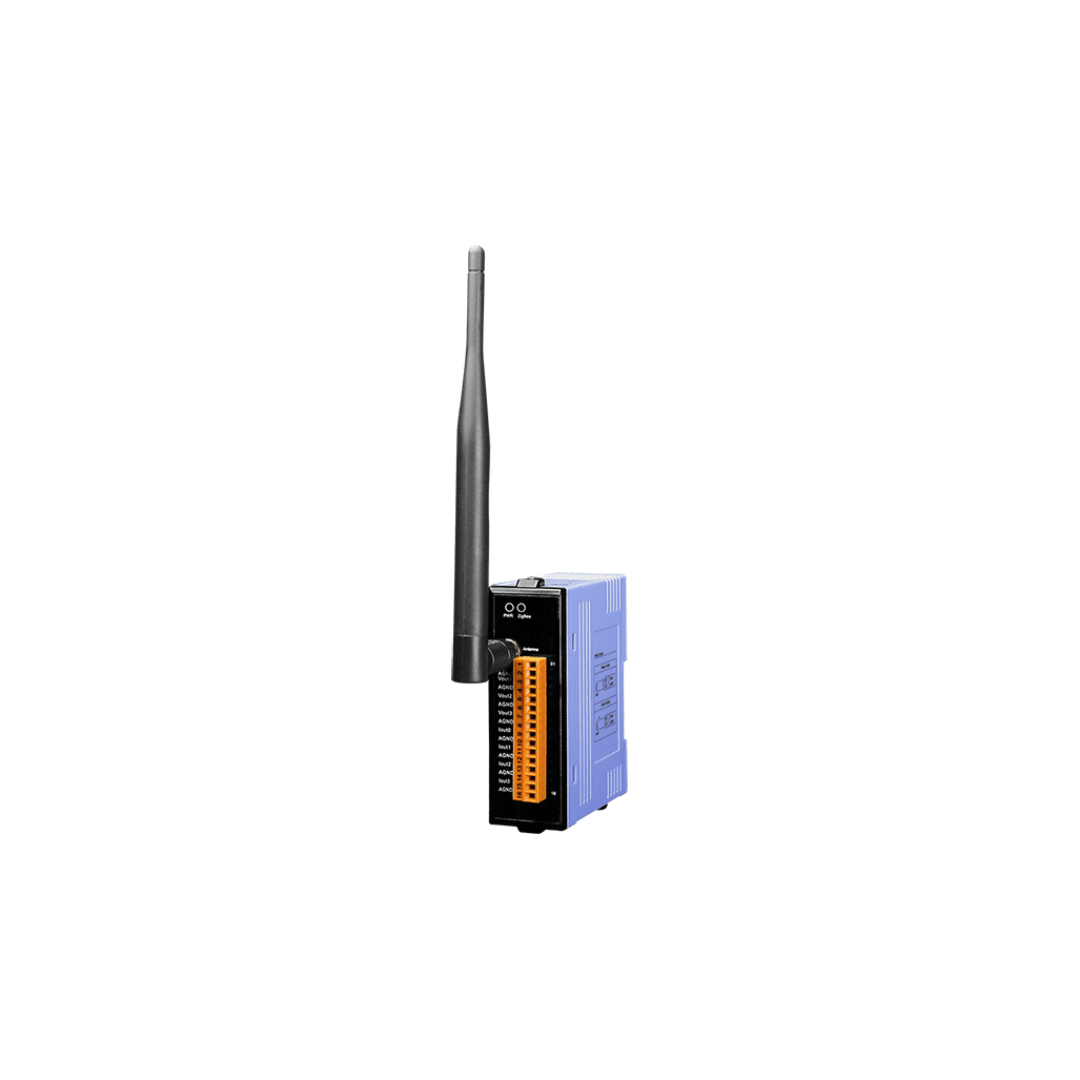

Wireless 4-channle Voltage/Current Output Module
The ZT-2024 is a 12-bit, 4-channel analog output wireless ZigBee module that provides a programmable output range an all channels, including 0 ~ +10 VDC, -10 VDC ~ +10 VDC, 0 ~ +5 VDC, -5 VDC ~ +5 VDC, 0 ~ +20 mA or +4 mA ~ +20 mA. There are also options for configuring the power-on value and the safe value. The module address, protocol, checksum, ZT-PID, ZT-channel and type code settings can be easily configured settings using a combination of rotary and DIP switches.

Request For Quotation


    Category:

    Description

    Applications

    Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote Diagnosis, Testing Equipment.

    Features

    • ISM 2.4 GHz Operating Frequency
    • Fully Compliant with 2.4 G / ZigBee Specifications
    • Wireless Transmission Range up to 700 m

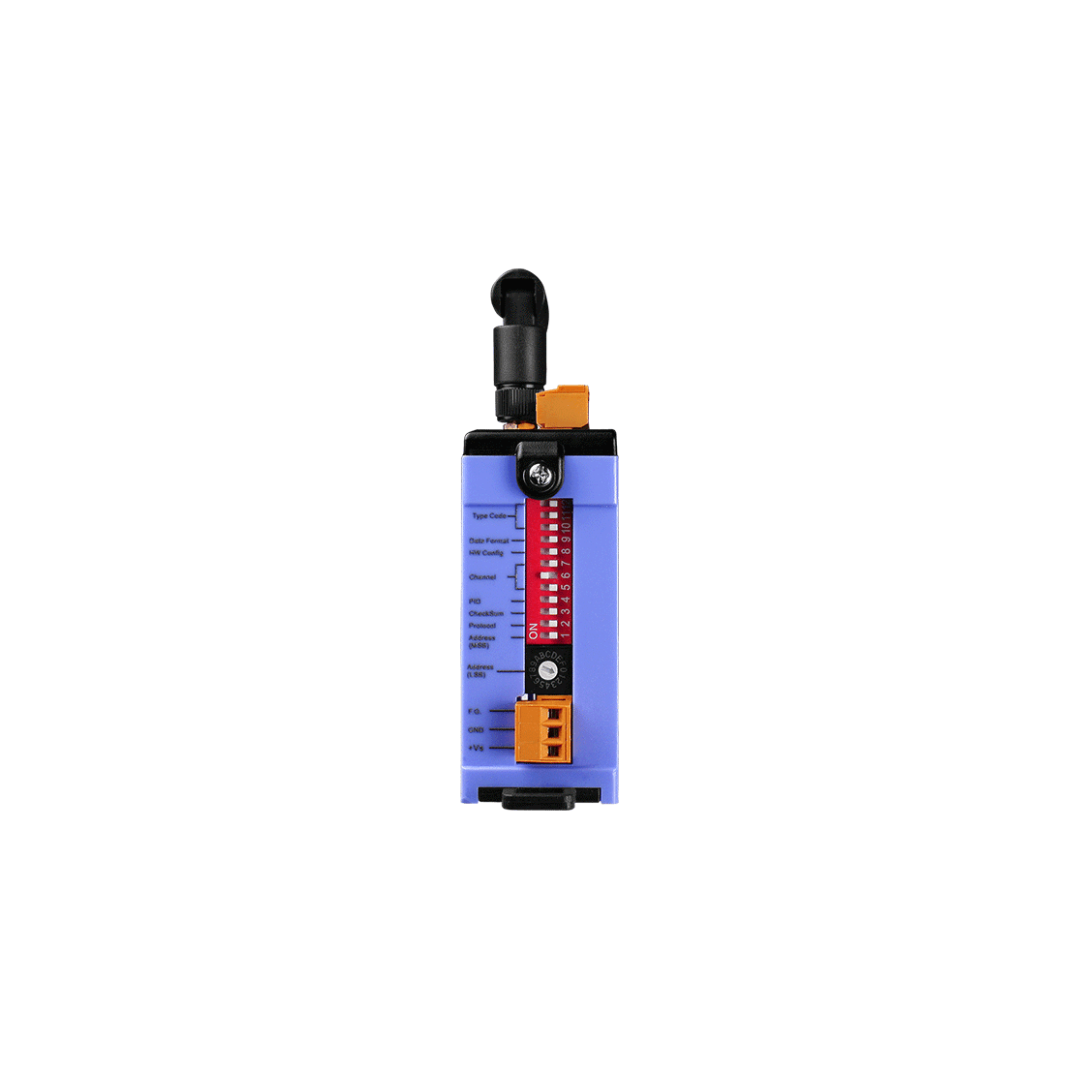

    • External DIP and Rotary Switches for easy Configuration
    • GUI Configuration Software (Windows Version)
    • 4 Analog Output Channels (V, mA)
    • Configurable Power-on Value Settings
    • Configurable Safe Value Settings
    • ±4 kV ESD Protections (Conact for each Terminal)
    • DIN-Rail Mounting



    I/O Specifications

    Analog Output
    Output Channels 4
    Output Types 0 ~ +10 VDC, -10 VDC ~ +10 VDC, 0 ~ +5 VDC, -5 VDC ~ +5 VDC, 0 ~ +20 mA, +4 mA ~ +20 mA
    Resolution 12-bit
    Accuracy ±0.1% of FSR
    Programmable Output Slope 0.125 to 2048 mA/ second
    0.0625 to 1024 V/ second
    Voltage Output Capability 10 V @ 10 mA
    Current Load Resistance External +24 V power : 1050 Ω
    Intra-module Isolation, Field-to-Logic 2500 VDC
    Power-on Value Yes
    Safe Value Yes

    System Specifications

    Communication Interface
    Wireless Standards ZigBee 2007 Pro
    Transmission Power 11 dBm (FCC Certificated) (Max. 19 dBm)
    Antenna 2.4 GHz – 5 dBi Omni-directional Antenna
    Transmission Range (LoS) 700 m (Typical)
    Certification FCC/FCC ID, CE (RED excluded)
    Max. Slaves in a ZigBee Network 255
    ZB-100R/ZB-100T Support –
    Protocols Supports DCON and Modbus RTU Protocols
    Dual Watchdog Yes, Module (1.6 Seconds), Communication (Programmable)
    LED Indicators
    Power 1 LED, red
    ZigBee Communication 1 LED, green
    Power
    EMS Protection ESD, Surge, EFT
    Input Voltage Range +10 VDC ~ +30 VDC
    Power Consumption 2.2 W Max.
    Mechanical
    Flammability Fire Retardant Materials (UL 94V-0 Level)
    Dimensions (L x W x H) 87 mm x 33 mm x 110 mm
    Installation DIN-Rail
    Environment
    Operating Temperature -25 °C ~ +75 °C
    Storage Temperature -30 °C ~ +80 °C
    Relative Humidity 10 ~ 90% RH, Non-condensing

    Ordering Informations

    ZT-2024 CR Wireless 4-channle Voltage/Current Output Module (ZigBee Router) (RoHS)
