ZT-2017

ZT-2017
Wireless 8-channel Analog Input Module with High Voltage Protection

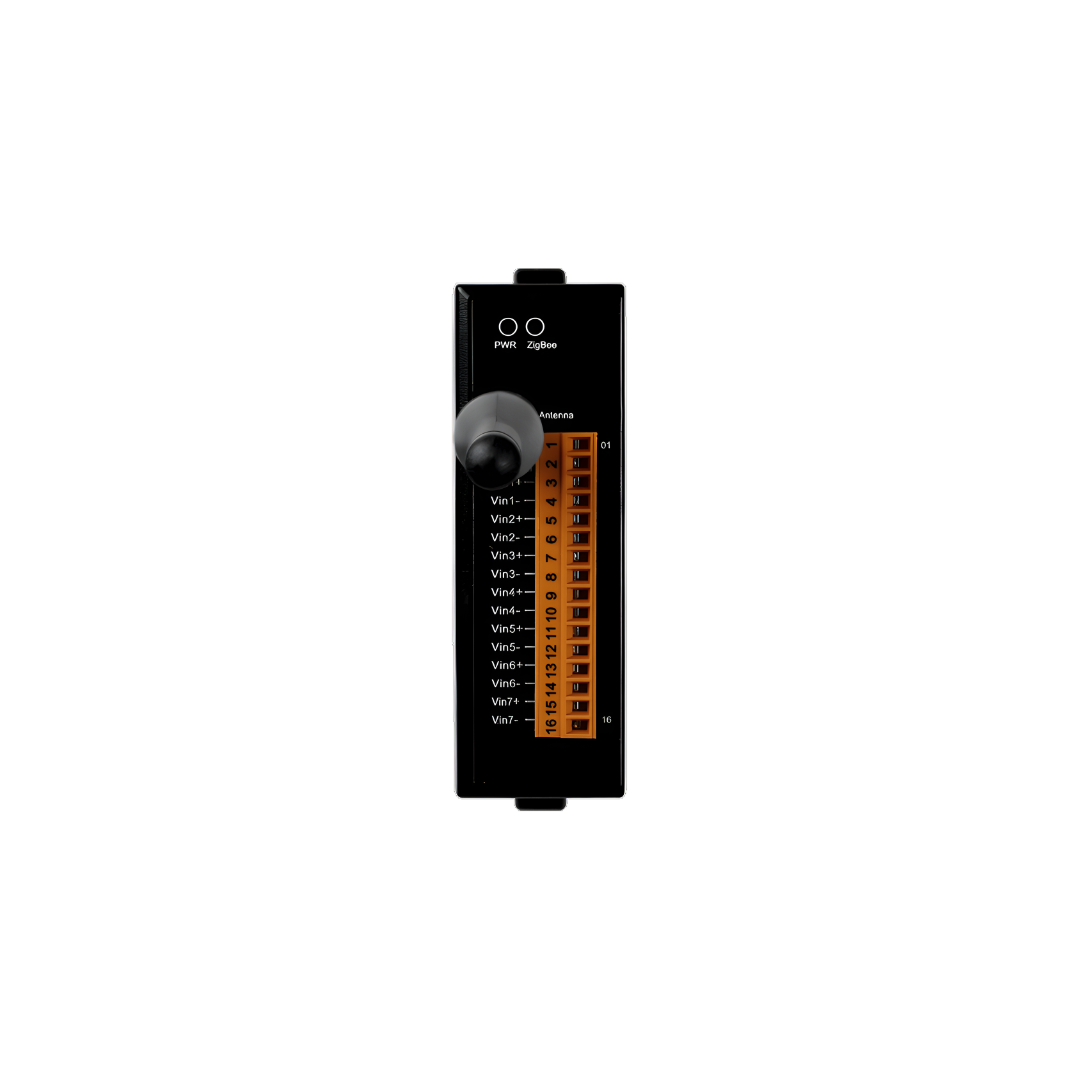

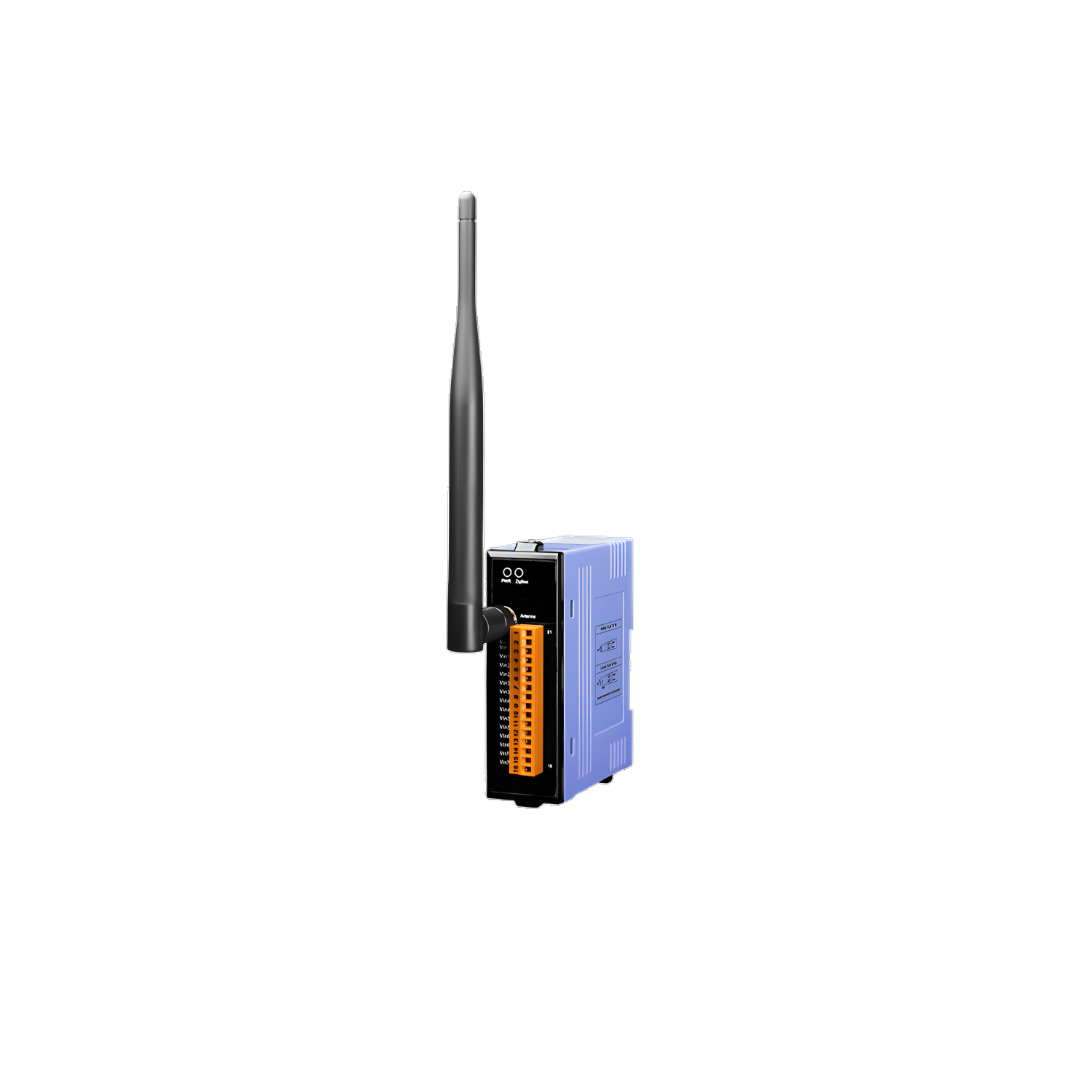

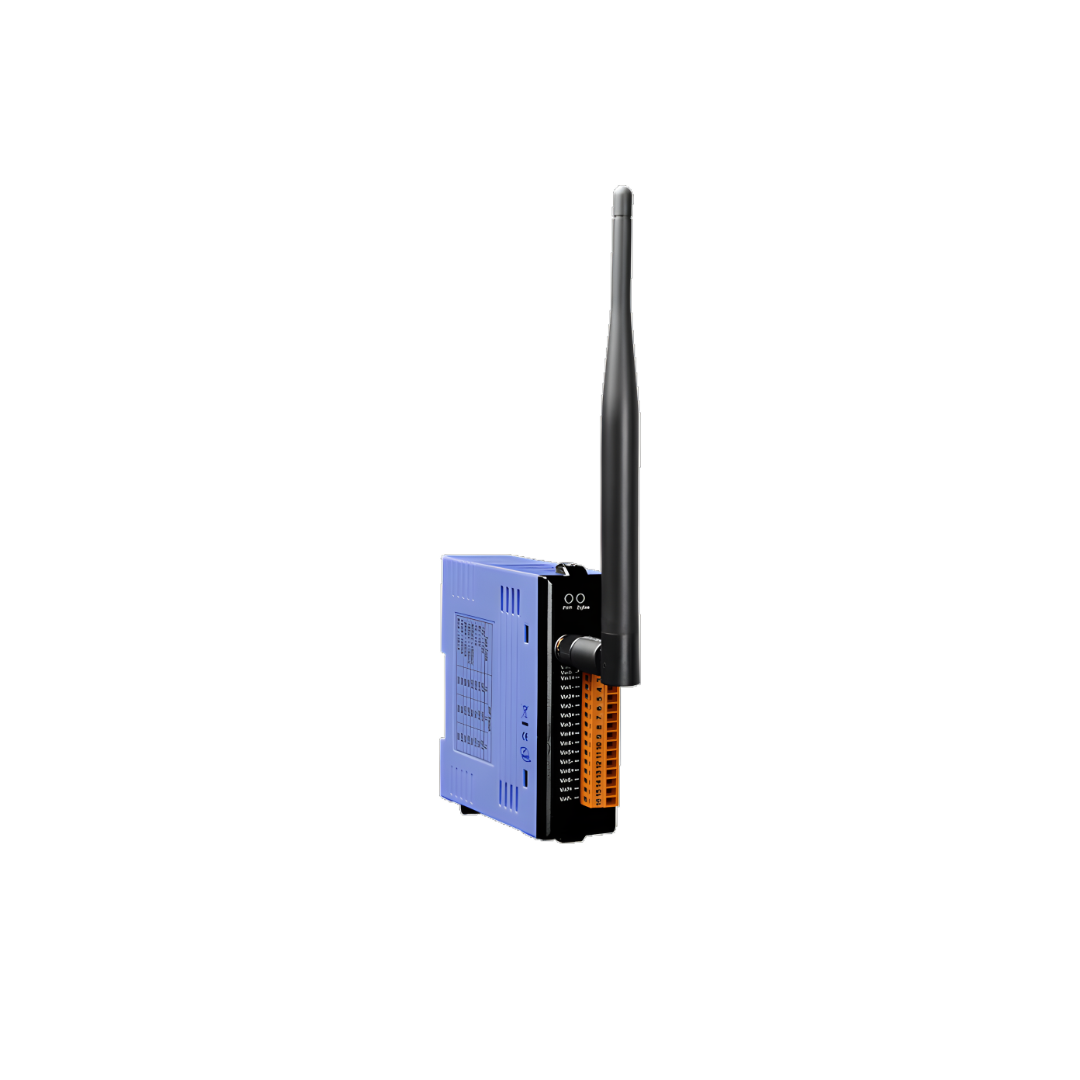

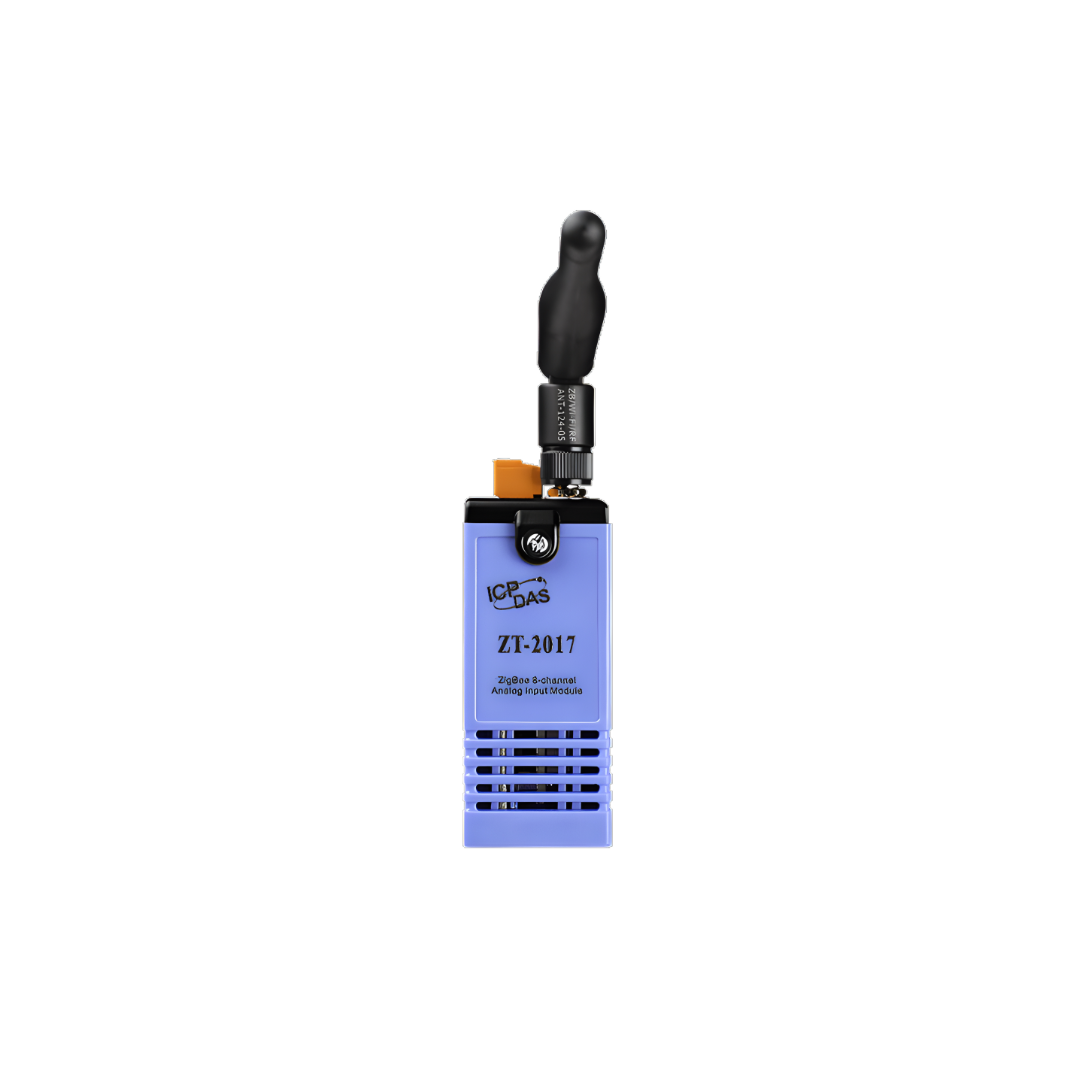

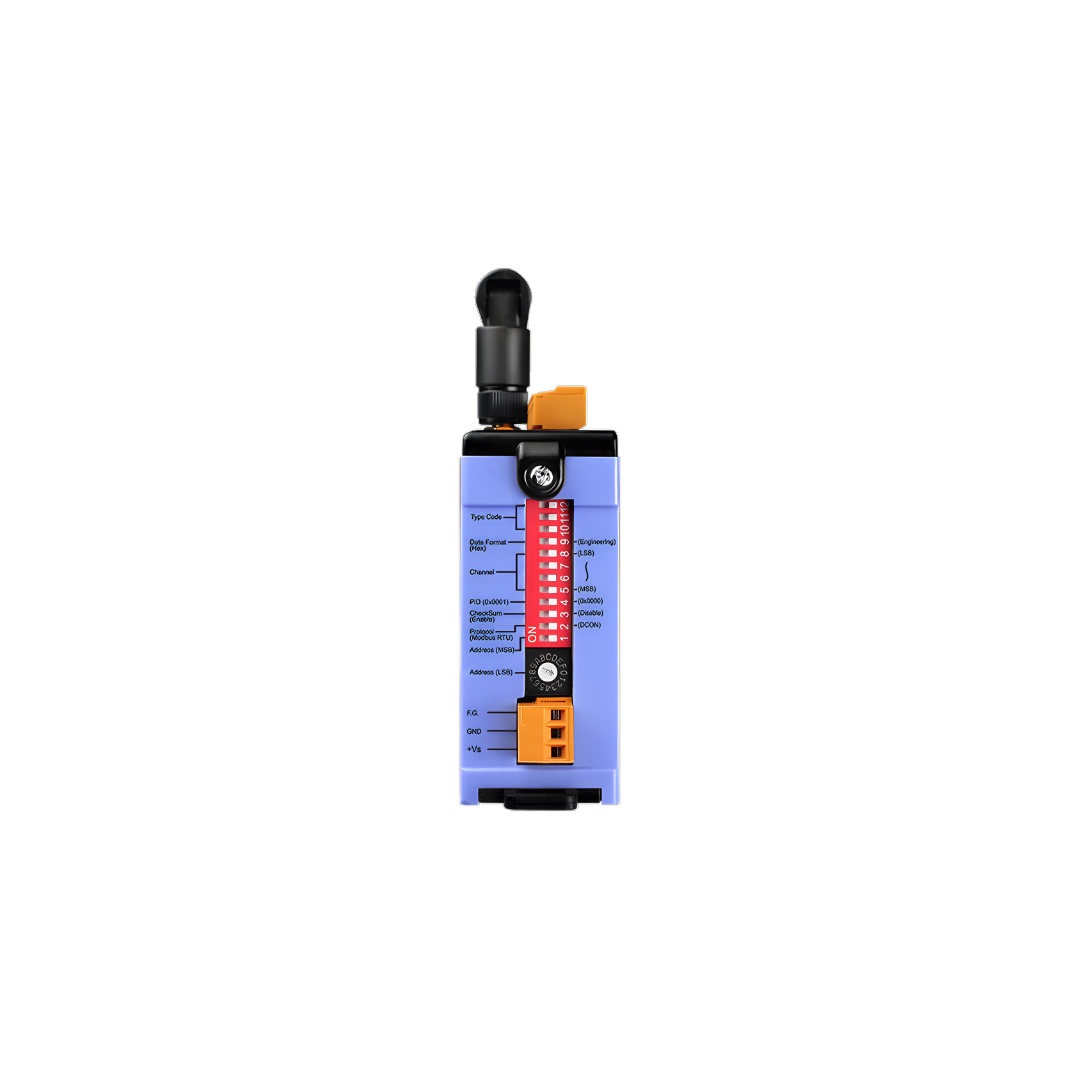

The ZT-2017 is a wireless 16-bit, 8-channel differential analog input ZigBee module that provides a programmable input range on all analog channels (±150 mV, ±500 mV, ±1 V, ±5 V or ±10 V). Each analog channel can be configured for an individual input range and has a high 240 Vrms overvoltage protection. Users can easily to configure the module address, protocol, checksum, ZT-PID, ZT-channel and type code settings using a combination of rotary and DIP switches.

Request For Quotation


    Category:

    Description

    Applications

    Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote Diagnosis, Testing Equipment.



    Features

    • ISM 2.4 GHz Operating Frequency
    • Fully Compliant with 2.4 G / ZigBee Specifications
    • Wireless Transmission Range up to 700 m
    • GUI Configuration Software (Windows Version)
    • 8 Differential Analog Input Channels (mV, V)
    • Individual Channel Configuration
    • Overvoltage Protection up to 240 Vrms
    • ±4 kV ESD Protections (Conact for each Terminal)
    • DIN-Rail Mounting

    I/O Specifications

    Analog Input
    Input Channels 8 Differential
    Input Types ±10 V, ±5 V, ±1 V, ±500 mV, ±150 mV ±20 mA, 0 ~ 20 mA, ±20 mA, 0 ~ 20 mA or 4 ~ 20 mA
    (Current Input Requires Optional External 125 Ω Resistor)
    Resolution 16-bit
    Sampling Rate 16-bit, 10 Samples/Sec. (Total)
    Accuracy ±0.1% of FSR
    -3dB Bandwidth 15.7 Hz
    Common Mode Rejection 86 dB
    Normal Mode Rejection 100 dB
    Input Impedance >2 MΩ
    Overvoltage Protection 240 Vrms
    Individual Channel Configuration Yes
    Intra-module Isolation, Field-to-Logic 3000 VDC

    System Specifications

    Communication Interface
    Wireless Standards ZigBee 2007 Pro
    Transmission Power 11 dBm (FCC Certificated) (Max. 19 dBm)
    Antenna 2.4 GHz – 5 dBi Omni-directional Antenna
    Transmission Range (LoS) 700 m (Typical)
    Certification FCC/FCC ID, CE (RED excluded)
    Max. Slaves in a ZigBee Network 255
    ZB-100R/ZB-100T Support –
    Protocols Supports DCON and Modbus RTU Protocols
    Dual Watchdog Yes, Module (1.6 Seconds), Communication (Programmable)
    LED Indicators
    Power 1 LED, red
    ZigBee Communication 1 LED, green
    Power
    EMS Protection ESD, Surge, EFT
    Input Voltage Range +10 VDC ~ +30 VDC
    Power Consumption Max. 1.4 W
    Mechanical
    Flammability Fire Retardant Materials (UL 94V-0 Level)
    Dimensions (L x W x H) 87 mm x 33 mm x 110 mm
    Installation DIN-Rail
    Environment
    Operating Temperature -25 °C ~ +75 °C
    Storage Temperature -30 °C ~ +80 °C
    Relative Humidity 10 ~ 90% RH, Non-condensing

    Ordering Informations

    ZT-2017 CR Wireless 8-channle Analog Input Module with High Voltage Protection (ZigBee Router) (RoHS)

    Datasheet

    ZT-2017_en.pdf

    zt_topology_quickstart_v0100_en-1.pdf

    zt-2017c_quickstart_v10_20130327.pdf

    zt-2017c_usermanual_0010_en_20130327.pdf
