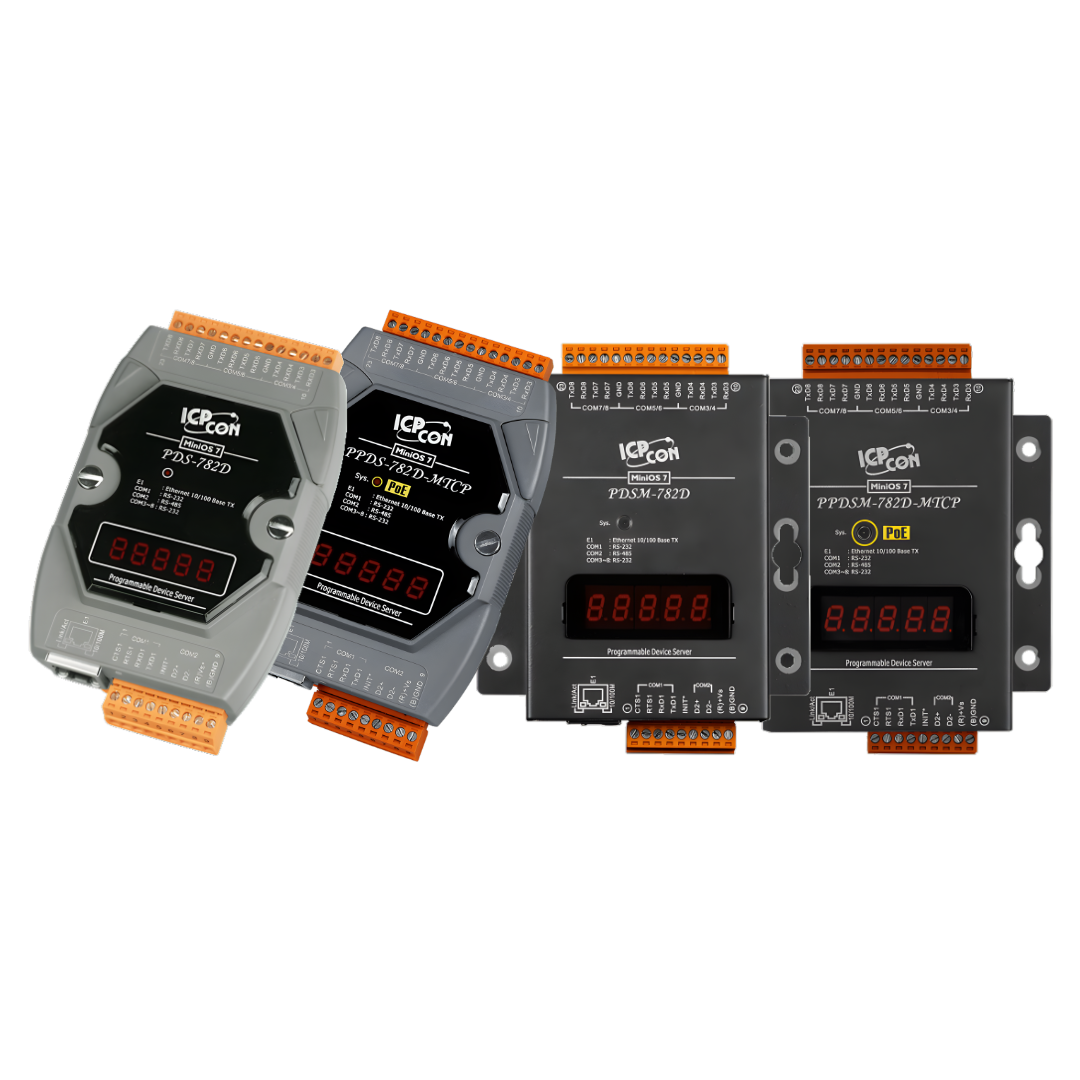

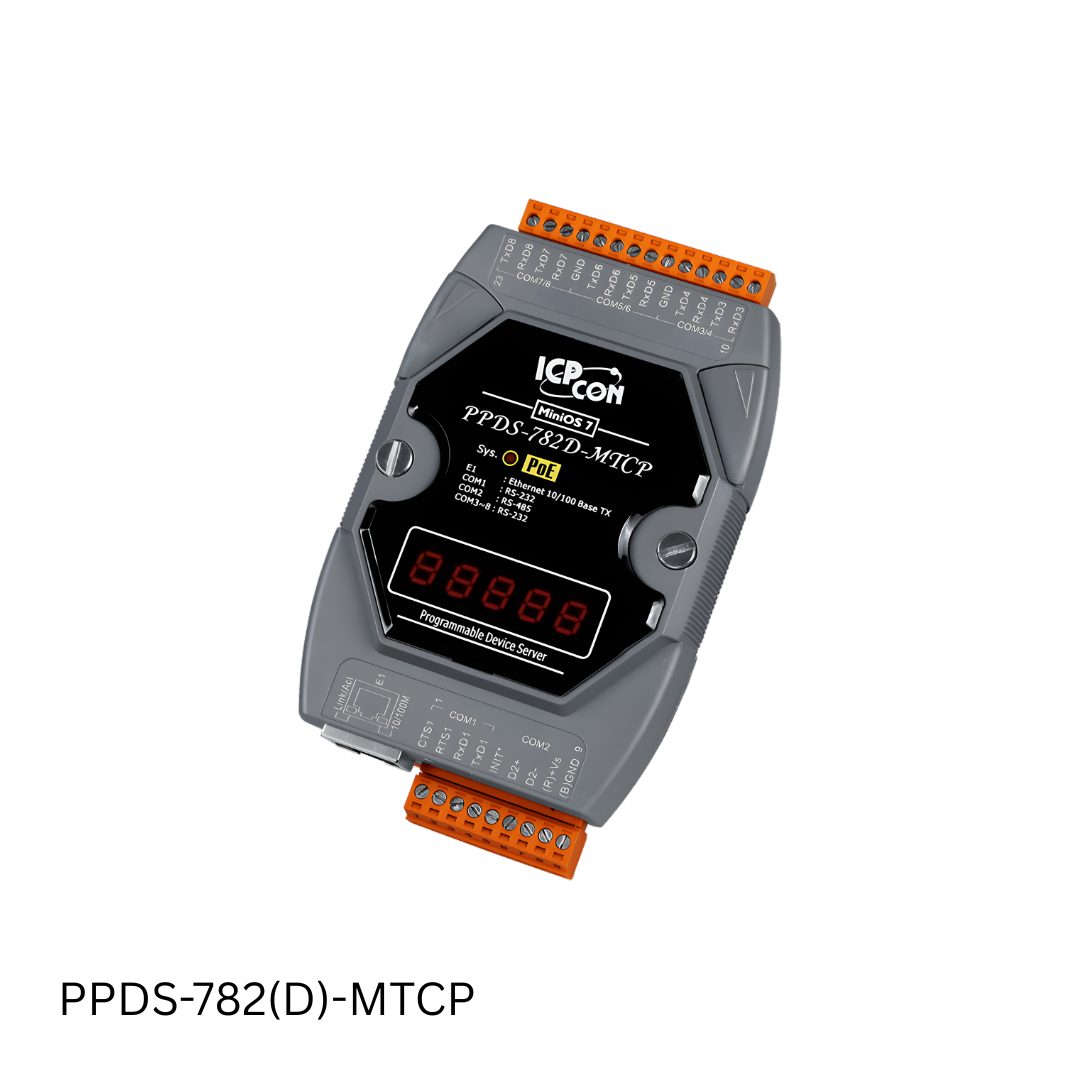

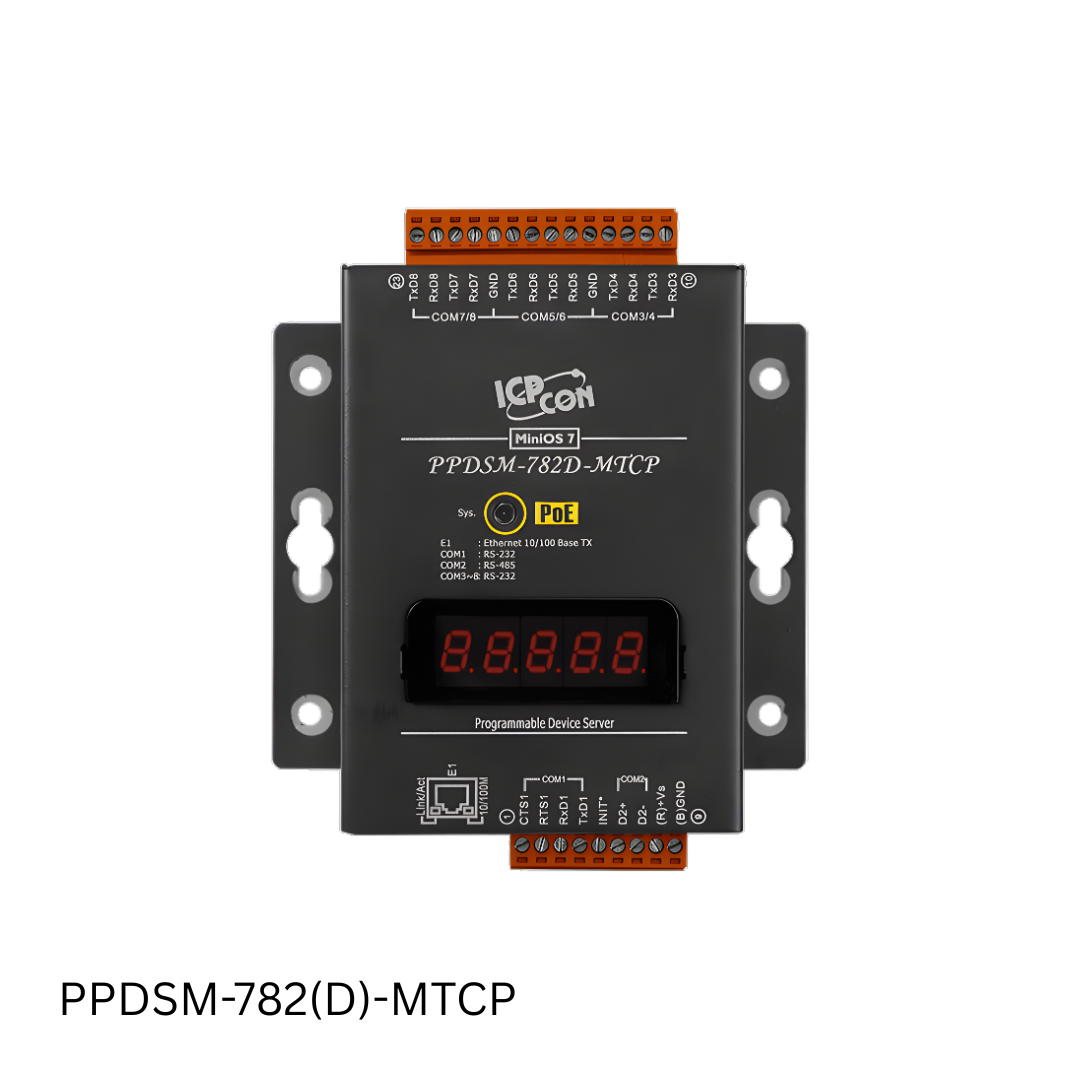

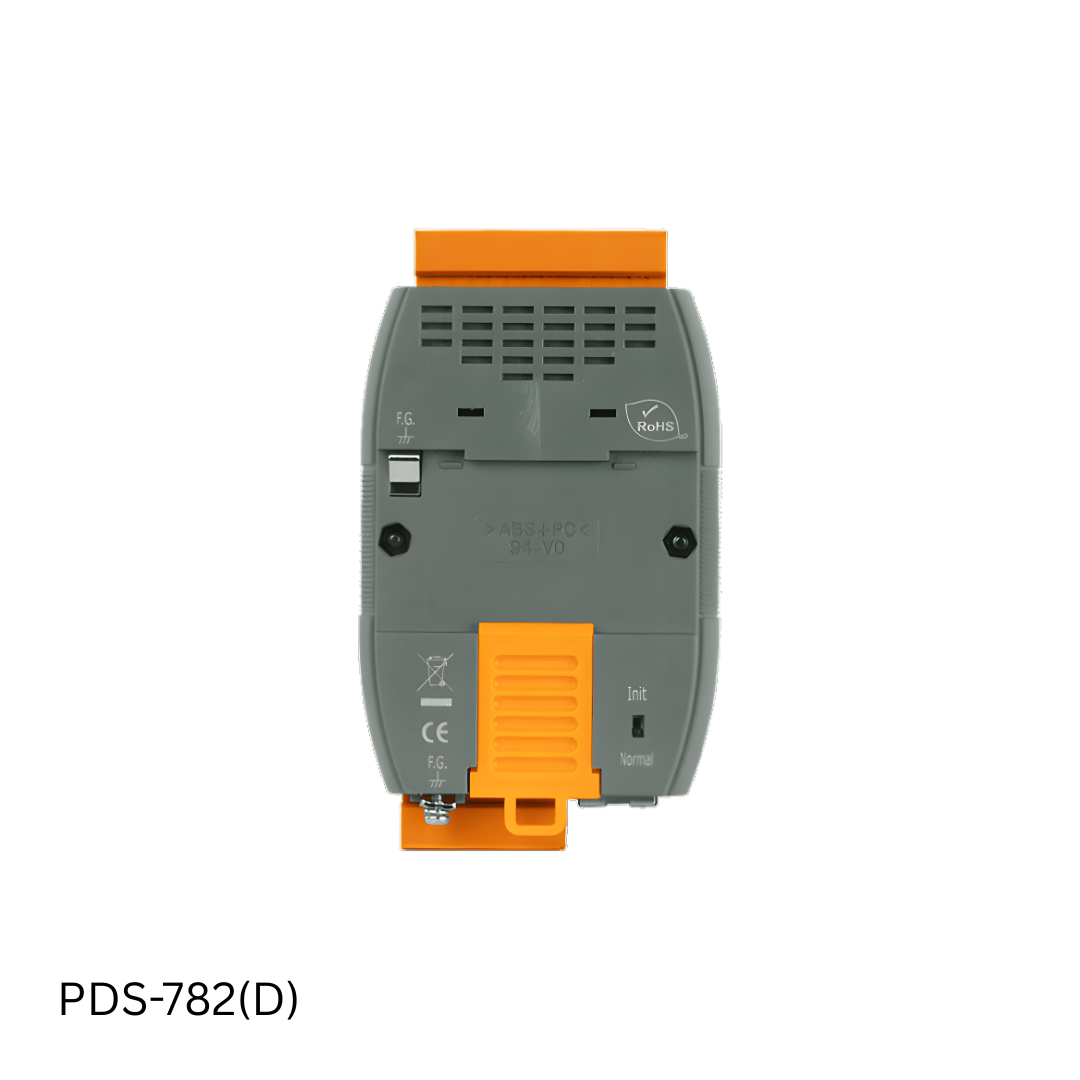

PDS-782(D) / PPDS-782(D)-MTCP / PDSM-782(D) / PPDSM-782(D)-MTCP

The PDS-700 series is a family of Programmable Device Servers, also known as “Serial-to-Ethernet gateway”, that are designed for linking RS-232/422/485 devices to an Ethernet network. The user-friendly VxComm Driver/Utility allows users to easily turn the built-in COM ports of the PDS-700 series into standard COM ports on a PC. By virtue of its protocol independence, a small-core OS and high flexibility, the PDS-700 series is able to meet the demands of every network-enabled application.

The PDS-700 series includes a powerful and reliable Xserver programming structure that allows you to design your robust Ethernet applications in one day. The built-in, high-performance MiniOS7 boots the PDS-700 up in just one second and gives you fastest responses.

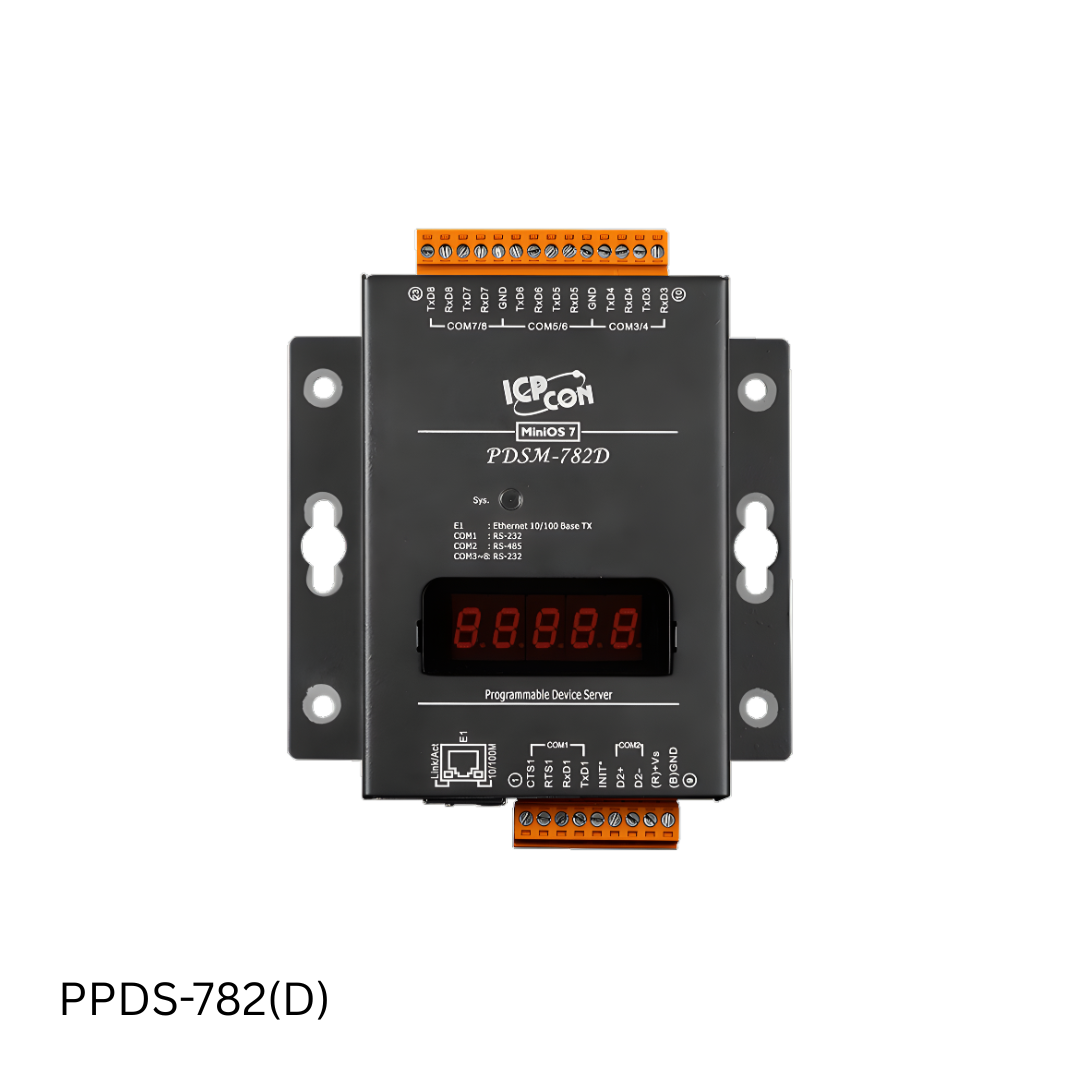

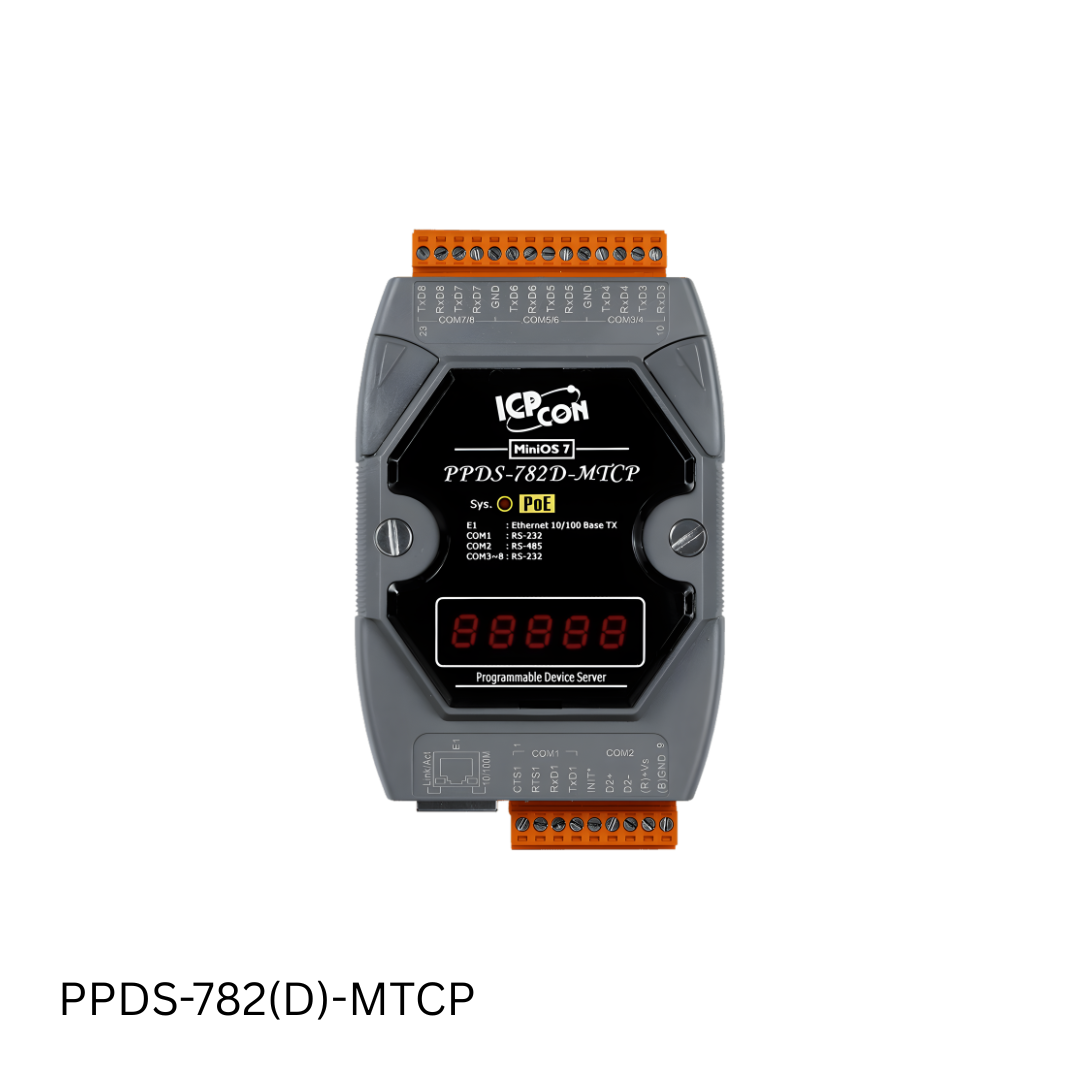

The PPDS-700-MTCP series features true IEEE 802.3af-compliant (classification, Class 1) Power over Ethernet (PoE) using a standard category 5 Ethernet cable to receive power from a PoE switch like the NS-205PSE. The PPDS-700-MTCP also works as a Modbus TCP to RTU/ASCII gateway that supports most SCADA/HMI communications based on the Modbus/TCP protocol. The PDSM-700 is the PDS-700 with Metal Case (RoHS) and the PPDSM-700-MTCP is the PPDS-700-MTCP with Metal Case (RoHS). Metal Case version includes stronger protection than PDS-700 and PPDS-700-MTCP.

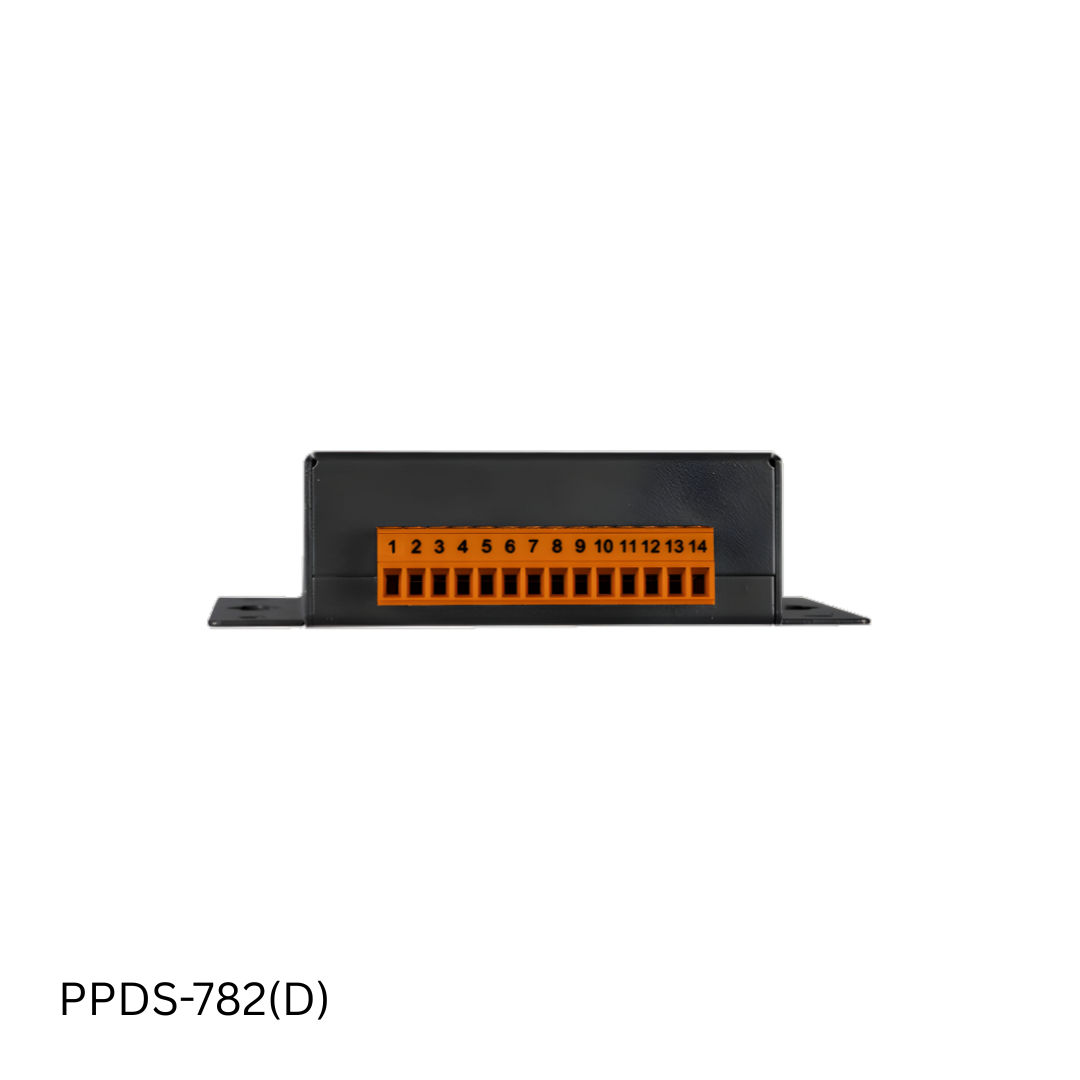

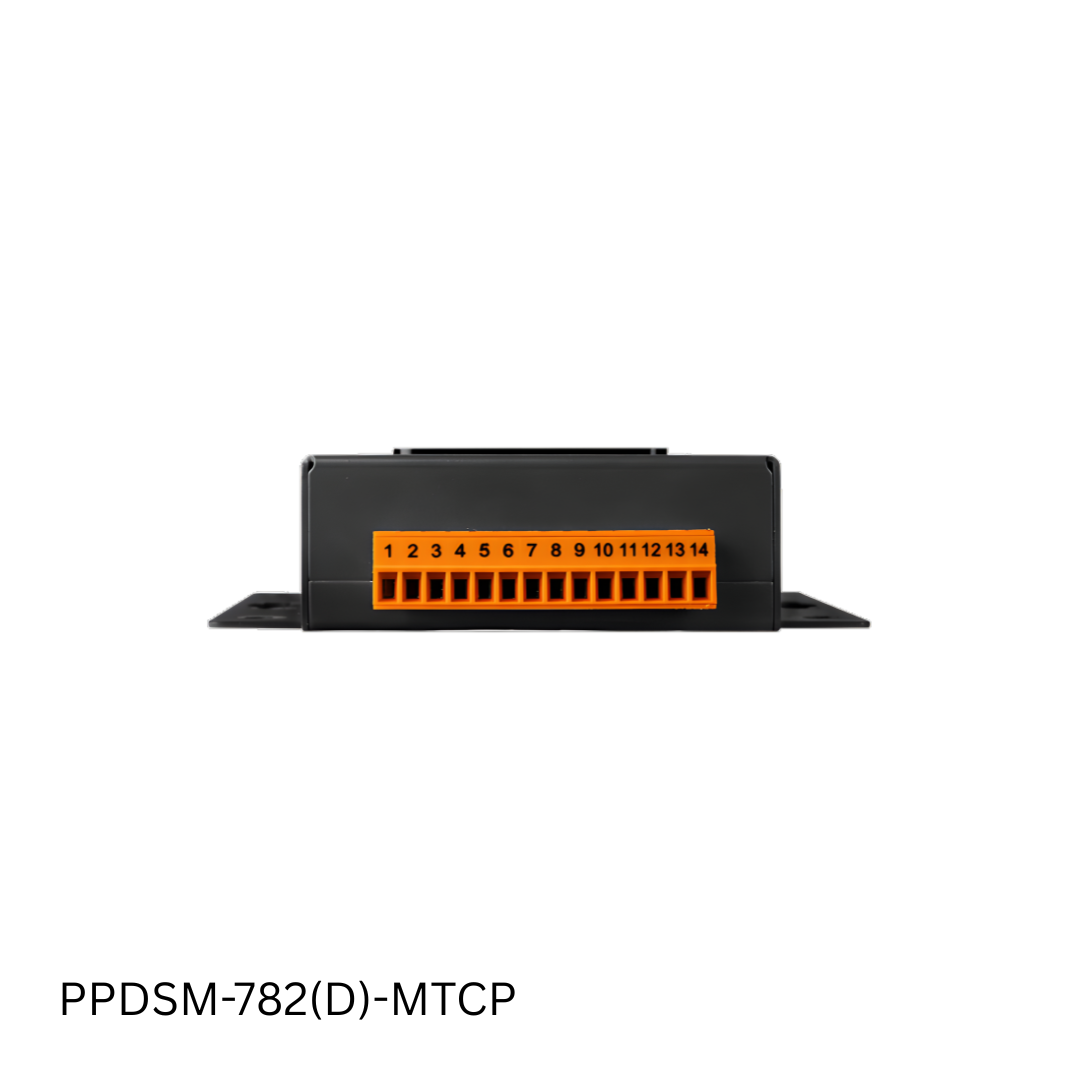

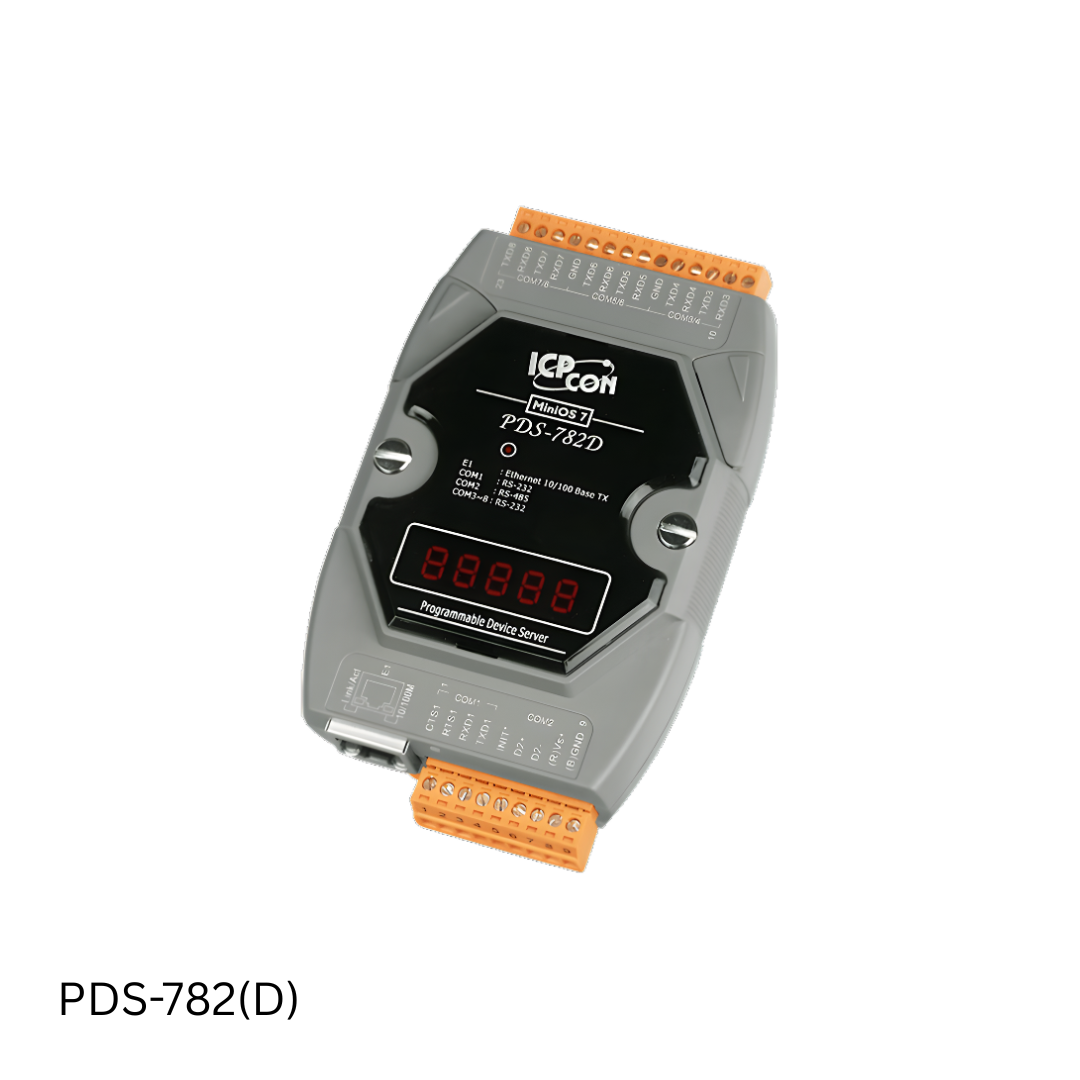

The PDS(M)-782(D) and PPDS-782(D)-MTCP is equipped with 7 RS-232 ports and 1 RS-485 port. The removable on-board terminal block connector is designed for easy and robust wiring in industrial situations.





Request For Quotation

    Category:

    Description



    Applications

    • Factory Automation
    • Building Automation
    • Home Automation

    Features

    • Incorporate Serial Devices in an Ethernet network
    • “Virtual COM” Extend COM Ports
    • Virtual COM supports 32-bit and 64-bit Windows XP/2003/Vista/7/8
    • Powerful Programmable Device Server
    • Watchdog Timer suitable for use in harsh environments
    • Power Reverse Polarity Protection
    • Serial Port +/-4 kV ESD Protection Circuit
    • Self-Tuner ASIC Controller on the RS-485 Port
    • 5-digit LED Display (for versions with a display)
    • RoHS Compliant with no Halogen
    • Built-in High Performance MiniOS7 from ICP DAS
    • 10/100 Base-TX Ethernet, RJ-45 Port
      (Auto-negotiating, auto MDI/MDI-X, LED indicator)
    • ODM Service Is Available
    • Low power consumption
    • Palm-Sized with multiple Serial Ports

      [PPDS(M)-782(D)-MTCP only]

    • Supports Modbus TCP to RTU/ASCII Gateway
    • Supports PoE (IEEE 802.3af, Class 1)

    System Specifications

    Models PDS(M)-782(D) PPDS(M)-782(D)-MTCP
    CPU
    CPU 80186-80 MHz or compatible
    SRAM 512 KB
    Flash Memory Flash ROM: 512 KB ; Erase unit is one sector (64 KB) ;
    100,000 erase/write cycles
    EEPROM 16 KB;
    Data retention: 40 years; 1,000,000 erase/write cycles.
    Built-in Watchdog Timer Yes
    Communication Interface
    Non-isolated COM1 RS-232 (TxD, RxD, RTS, CTS, GND)
    COM2 RS-485 (D2+, D2-, GND)
    COM3 RS-232 (TxD, RxD,GND)
    COM4 RS-232 (TxD, RxD,GND)
    COM5 RS-232 (TxD, RxD,GND)
    COM6 RS-232 (TxD, RxD,GND)
    COM7 RS-232 (TxD, RxD,GND)
    COM8 RS-232 (TxD, RxD,GND)
    RS-485 Bias Resistor Yes, 1 KΩ
    Node 254 (max.)

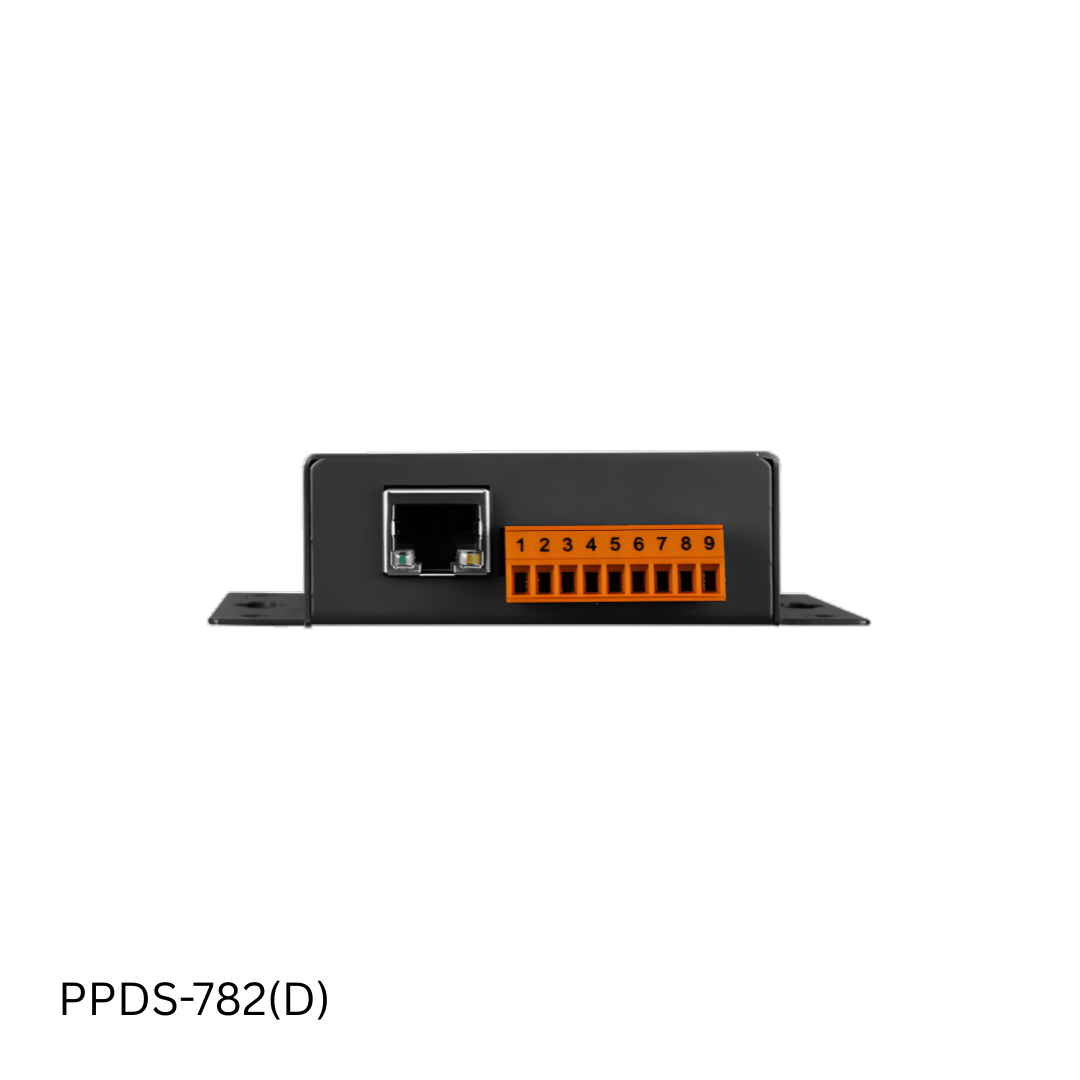

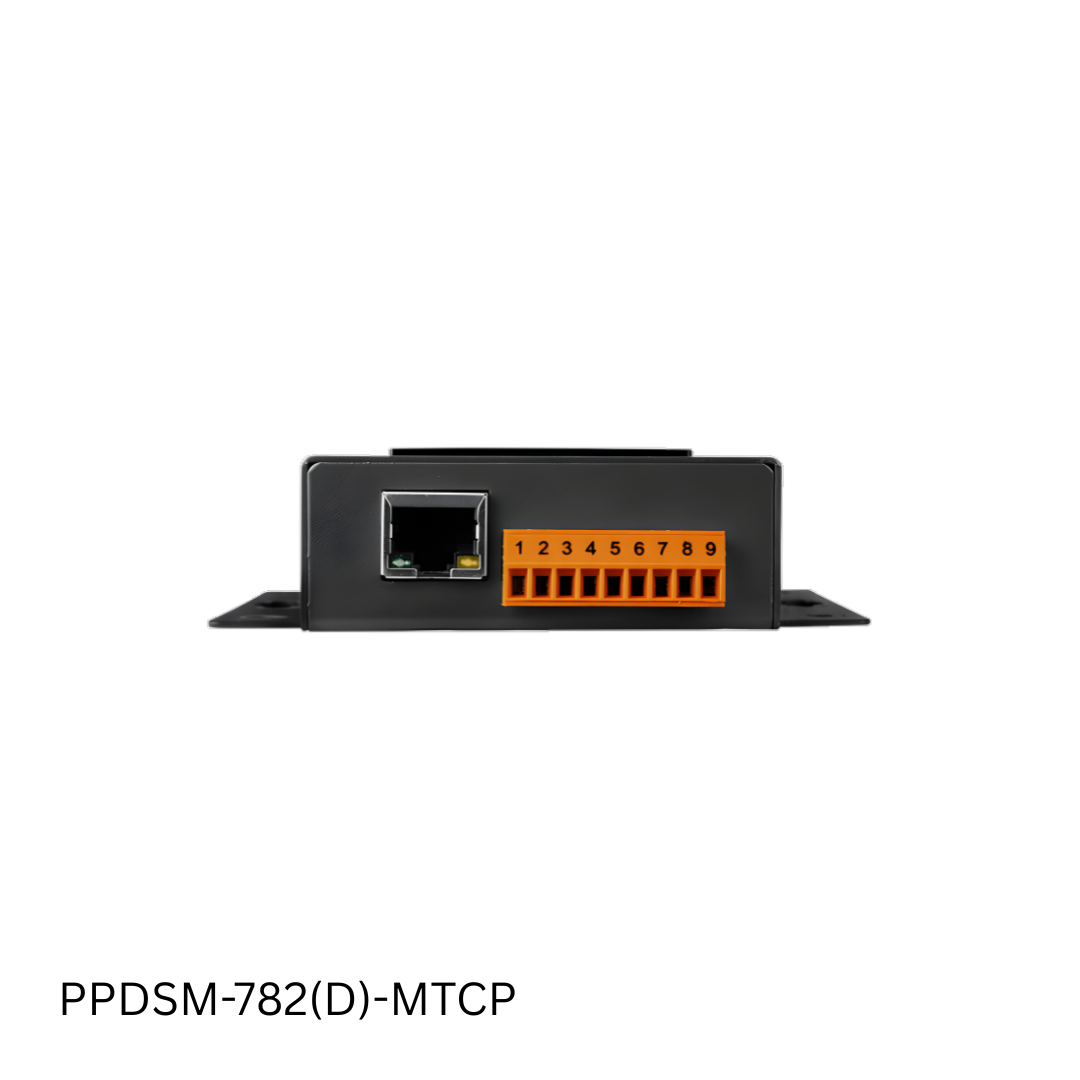

    Ethernet 10/100 Base-TX, RJ-45 port
    (Auto-negotiating, auto MDI/MDI-X, LED indicator)
    PoE – IEEE 802.3af
    COM Port Formats
    Data Bit 7, 8: for COM1 and COM2
    5, 6, 7, 8: for COM3 ~ COM8
    Parity None, Even, Odd, Mark, Space
    None parity is required when using 8 data bits and 2 stop bits on COM1/COM2.
    Stop Bit 1, 2: for COM1 ~ COM8
    Baud Rate 115200 bpsmax.
    LED Indicators
    5-digit 7 Segment Yes, only for “D” versions
    System Red
    PoE – Green
    Power
    Protection Power Reverse Polarity Protection
    Required Supply Voltage +10 VDC ~ +30 VDC (non-regulated) PoE or +12 VDC ~ +48 VDC (non-regulated)
    Power Consumption PDS(M)-782: 2.0 W
    PDS(M)-782D: 2.7 W    		 PPDS(M)-782-MTCP: 2.2 W
    PPDS(M)-782D-MTCP: 2.9 W
    Mechanism
    Flammability Fire Retardant Materials (UL94-V0 Level)
    Dimension (W x H x D) 72 mm x 123 mm x 35 mm (88 mm x 123 mm x 28 mm for “M” versions)
    Installation DIN-Rail or Wall mounting
    Casing Fire Retardant Plastic (Metal for “M” versions)
    Environment
    Operating Temperature -25 ~ +75 °C
    Storage Temperature -40 ~ +80 °C
    Humidity 5 ~ 90% RH, non-condensing

    Ordering Informations

    PDS-782 CR Programmable Device Serverwith 7 RS-232 ports and 1 RS-485 port(RoHS)
    Includes One CA-0910Cable
    PDSM-782 CR PDS-782 CR with Metal Case
    PDS-782D CR Programmable Device Serverwith 7 RS-232 ports, 1 RS-485 port and an LED Display(RoHS)
    Includes One CA-0910Cable
    PDSM-782D CR PDS-782D CR with Metal Case
    PPDS-782-MTCP CR Programmable Device Server with PoE, Modbus Gateway, 7 RS-232 ports and 1 RS-485 port (RoHS)
    Includes One CA-0910 Cable
    PPDSM-782-MTCP CR PPDS-782-MTCP CR with Metal Case
    PPDS-782D-MTCP CR Programmable Device Server with PoE, Modbus Gateway, 7 RS-232 ports, 1 RS-485 port and an LED Display (RoHS)
    Includes One CA-0910 Cable
    PPDSM-782D-MTCP CR PPDS-782D-MTCP CR with Metal Case
