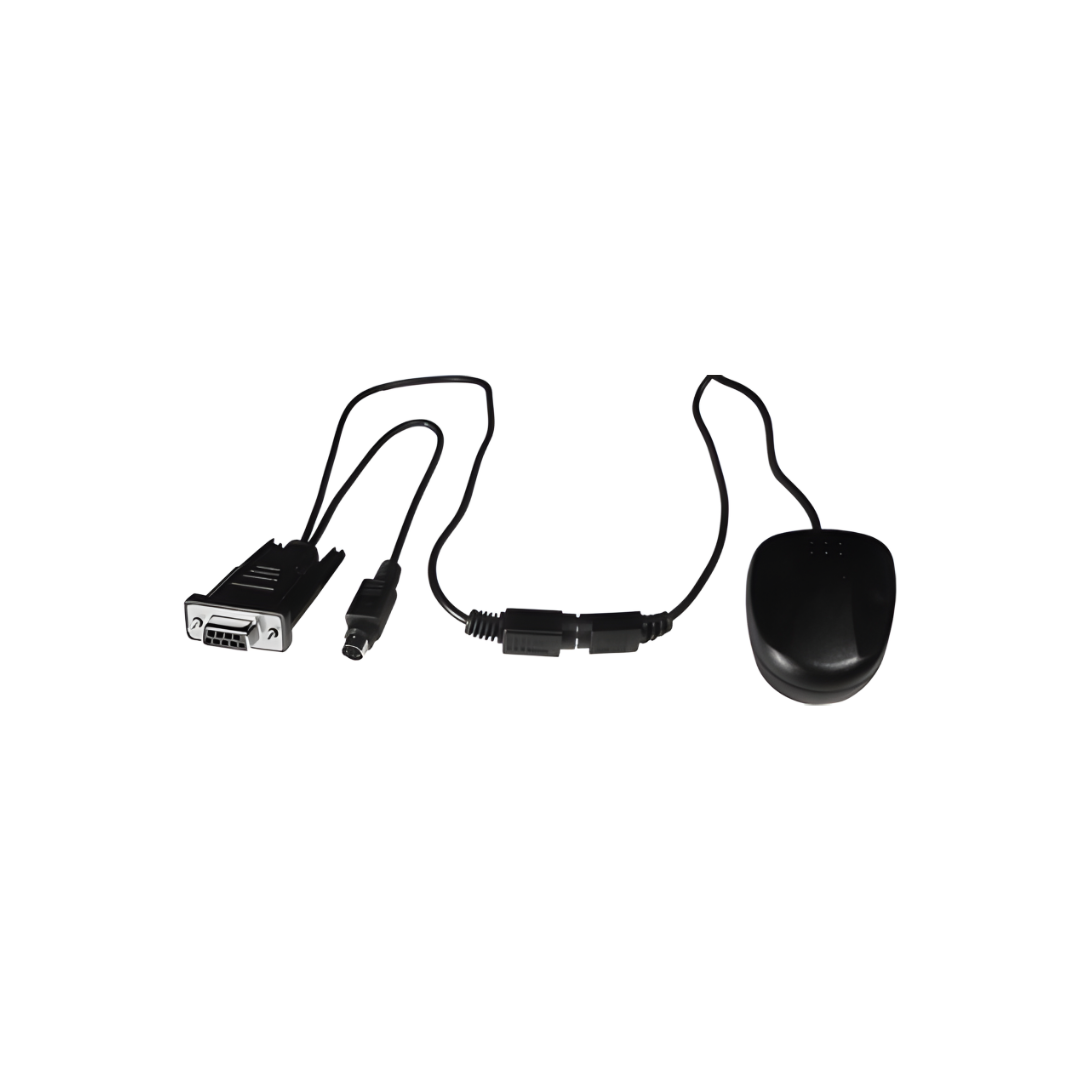

GT-321R-RS232
|
Request For Quotation
Description
Features
With a miniature form factor, the GT-321R-RS232 module manifests EverMore’s latest 12-channel GPS technology.
The GT-321R-RS232 GPS receiver is designed for rapid startup time and high performance in foliage and urban canyon environments. GT-321R-RS232 applies the latest semiconductor technology so as to provide robust performance.
GT-321R-RS232 provides enhanced position & velocity filtering for smooth navigation, and onboard patch antenna & RS-232 driver for simple interfacing.
The optional Evaluation Kit makes it easy to evaluate the performance of GT-321R-RS232. The kit consists of GT-321R-RS232 housed in translucent case, a Windows-based evaluation software, and an operation manual.
Specifications
- General: L1 (1575.42MHz), C/A code, 12-channel, Carrier-Aided with HWTrackc.
- Sensitivity: -165 dBW minimum
- Update Rate: 1Hz
- Accuracy:
Position :25m CEP S/A off
Velocity :0.1/sec S/A off
BTime :± 1ms - Typical Acquisition Time:
Cold start:< 120sec
Warm start:< 40 sec
Hot start:< 10 sec - Reacquisition: 100 millisecond
- Active Antenna:
>20 dB (100ft)
>10 dB (10 ft) - Passive Antenna: > 2 dBic
- Dynamics:
Altitude: -1000m to + 18,000m
Velocity: 500m/sec
Acceleration: ±4g - Operation Temperature: -40°C to + 85°C
- Storage Temperature: -55°C to + 100°C
- Operating Humidity: 5% to 95%
- Primary Power: 3.8V~8V DC, ±10%
- Power Consumption:
125mA @ 3.3V
70-90mA with power saving - Serial Port: Standard RS-232
- Protocols: NMEA-0183 v2.20@4800/9600 baud, 8N1
- Datum: 219 standard datum; WGS-84 (default)
- NMEA Messages: GGA, GSA, GSV, RMC (standard output) GLL and VTG (optional)
- Dimension: 45 mm x 30 mm x 13 mm w/o housing
- Weight: 25g w/o housing
Ordering Informations
| GT-321R-RS232 | GPS Receiver |
