The AXBOX-M102 is a fanless embedded industrial computer designed for industrial automation, edge computing, multi-display, and local data storage
applications. Powered by Intel® 12th Gen Core™ processors and built on the
FlexCore™ modular architecture, it features dual HDMI and dual DP display
interfaces, supporting up to 4 independent displays. The system integrates dual Gigabit Ethernet, 4 USB 3.0 ports, RS-232/RS-485, and other industrial interfaces, with support for 2× M.2 NVMe SSDs and RAID 0/RAID 1. It is ideal for equipment monitoring, digital signage, industrial visualization, logistics and warehousing, energy management, and unattended terminal applications.
Features
- 6061 high-strength aluminum alloy structure, fanless design
- Intel Alder Lake Processor
- Support 1*DDR5 4800 SODIMM Memory up to 32GB
- Support 2*M.2 NVMe SSD slot (for Storage Expansion purposes)
- Support 3*COM (COM1&2: RS232; COM3*RS485)
- Support 2*Intel I210 LAN ports
- Support OS: Windows 10 / 11 and Ubuntu 16.04 / 18.04 / 20.04 / 22.04
Description
| Model | AXBOX-M102 |
| Processor | Intel Core i7-1255U (10 Cores / 12 Threads (2P+8E Cores) , Turbo 4.7GHz) |
| Memory | Support 1*DDR5 4800 SODIMM Memory slot, Max 32GB |
| BIOS | BIOS / Boot LOGO / OEM |
| Display Chip | Intel Iris Xe Graphics (96 EUs) |
| Display Port | 2*HDMI (EDID) 2*DP 1*VGA |

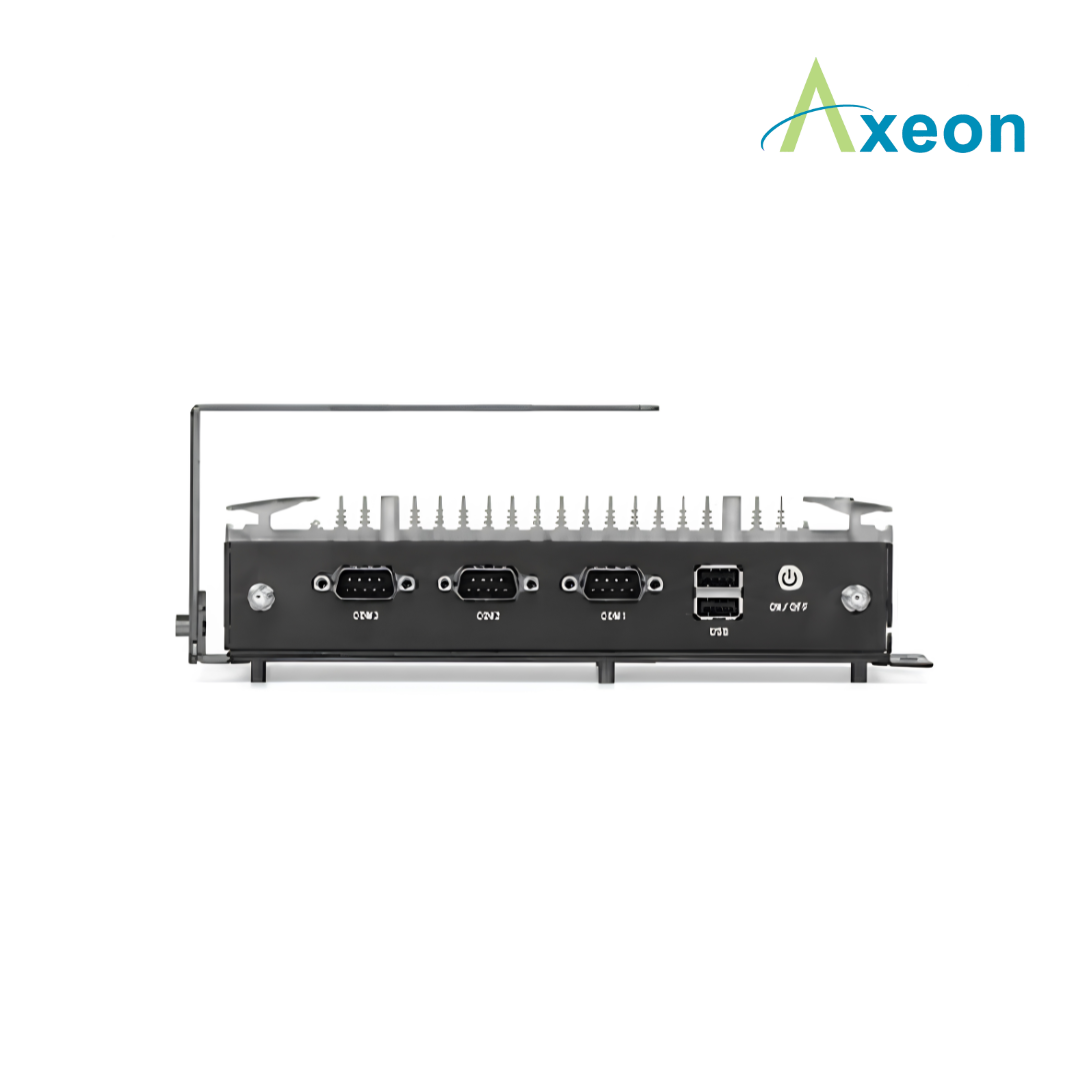

| Front I/O | 3*COM (COM1&2: RS232; COM3*RS485), 2*USB2.0, 1*Power Switch |

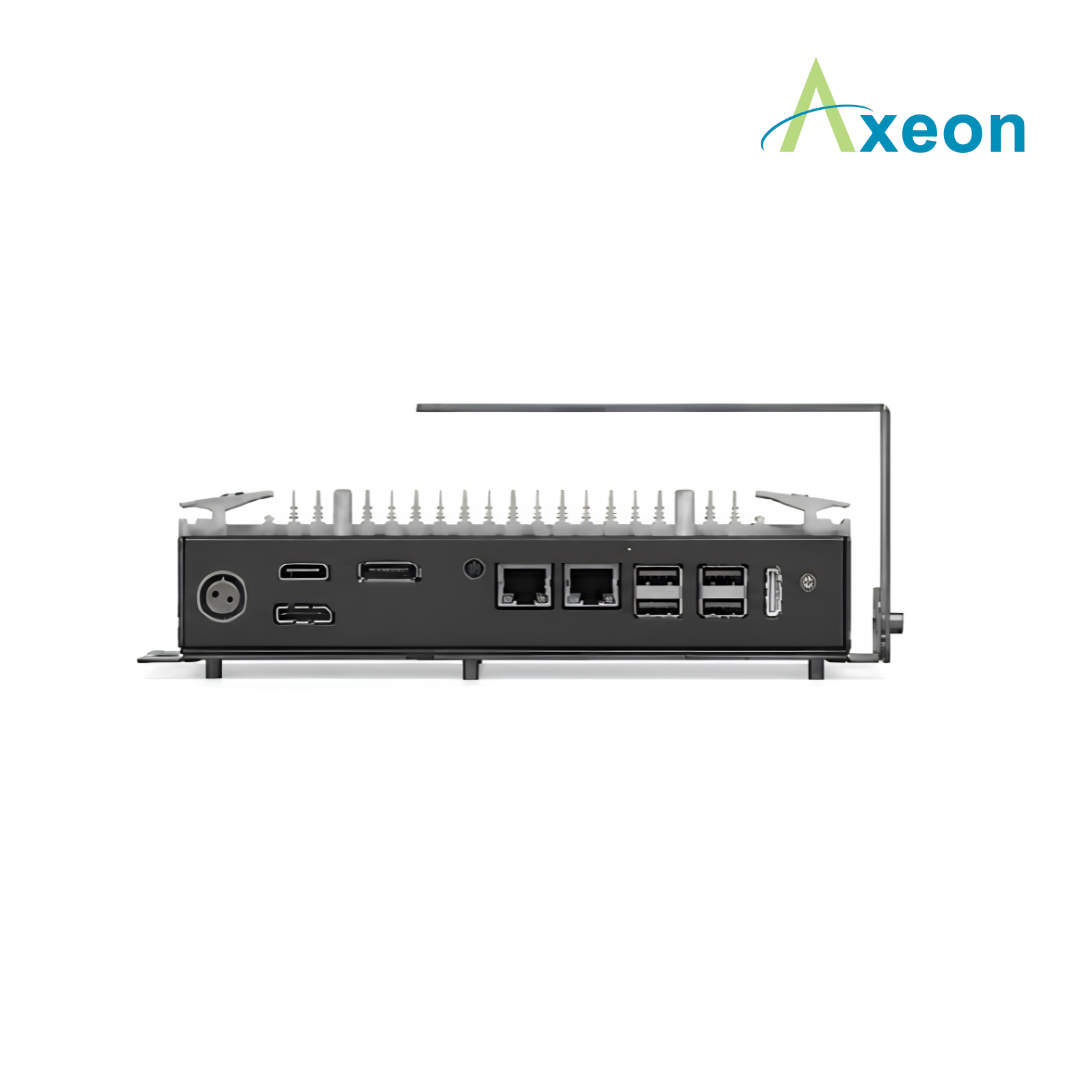

| Rear I/O | 1*DC, 2*HDMI, 2*DP, 1*VGA, 4*USB3.0, 2*Intel I210 LAN, 1*Audio (3.5mm TRRS) |
| Expansion Slot | Storage Expansion Slot : Supports 2*M.2 2280 PCIe NVMe SSD, (supports RAID 0/RAID 1) WiFi (Optional) : Dual-band 2.4G/5G wireless card 2 |
| Network | 2*Intel I210 LAN |
| Storage | 2*M.2 2280 PCIe NVMe SSD (supports RAID 0/RAID 1) |
| Other Function | Supports hardware watchdog, external power switch control, and industrial-grade, SafeCore™ power-off protection and system stability design |
| Input Voltage | 1*3-pin pluggable terminal, (supports 9~36V DC wide-range input) |
| Certificates | Operating Environment : CE, FCC (EN 55032 & EN 55035), EN IEC 61000-3-2 Factory Cert. : ISO9001: 2015 |
| Application | Industrial manufacturing, smart transportation, new energy, equipment control, etc. |
| Structure Parameter | |
| Color | – |
| Material | 6061 High-strength aluminum alloy Aluminum extrusion + sheet metal) |
| Size | 195 (L) * 160 (W) * 47 (H) mm Mounting Dimensions : 219 (L) * 100 (W) mm Mounting Method : Structure Bracket Mount / VESA standard Reset Switch : 1*Reset Switch |
| Weight | 1.48 KG (net weight) |
| Environmental Parameter | |
| Work Temp | 0℃ ～ 60℃; -40℃ ～ 80℃ (optional), |
| Work Humidity | 10% ～ 90% Non-condensing state |
| Structure Parameter | |
| Work Temp | -10℃ ～ 70℃ (business HDD), -40℃ ～ 80℃ (industrial SSD), |
| Work Humidity | 10% ～ 90% Non-condensing state |
