PDS-782-25/D6 / PDS-782D-25/D6
|
The PDS-700 series is a family of Programmable Device Servers, also known as “Serial-to-Ethernet gateway”, that are designed for linking RS-232/422/485 devices to an Ethernet network. The user-friendly VxComm Driver/Utility allows users to easily turn the built-in COM ports of the PDS-700 series into standard COM ports on a PC. By virtue of its protocol independence, a small-core OS and high flexibility, the PDS-700 series is able to meet the demands of every network-enabled application.
The PDS-700 series includes a powerful and reliable Xserver programming structure that allows you to design your robust Ethernet applications in one day. The built-in, high-performance MiniOS7 boots the PDS-700 up in just one second and gives you fastest responses.

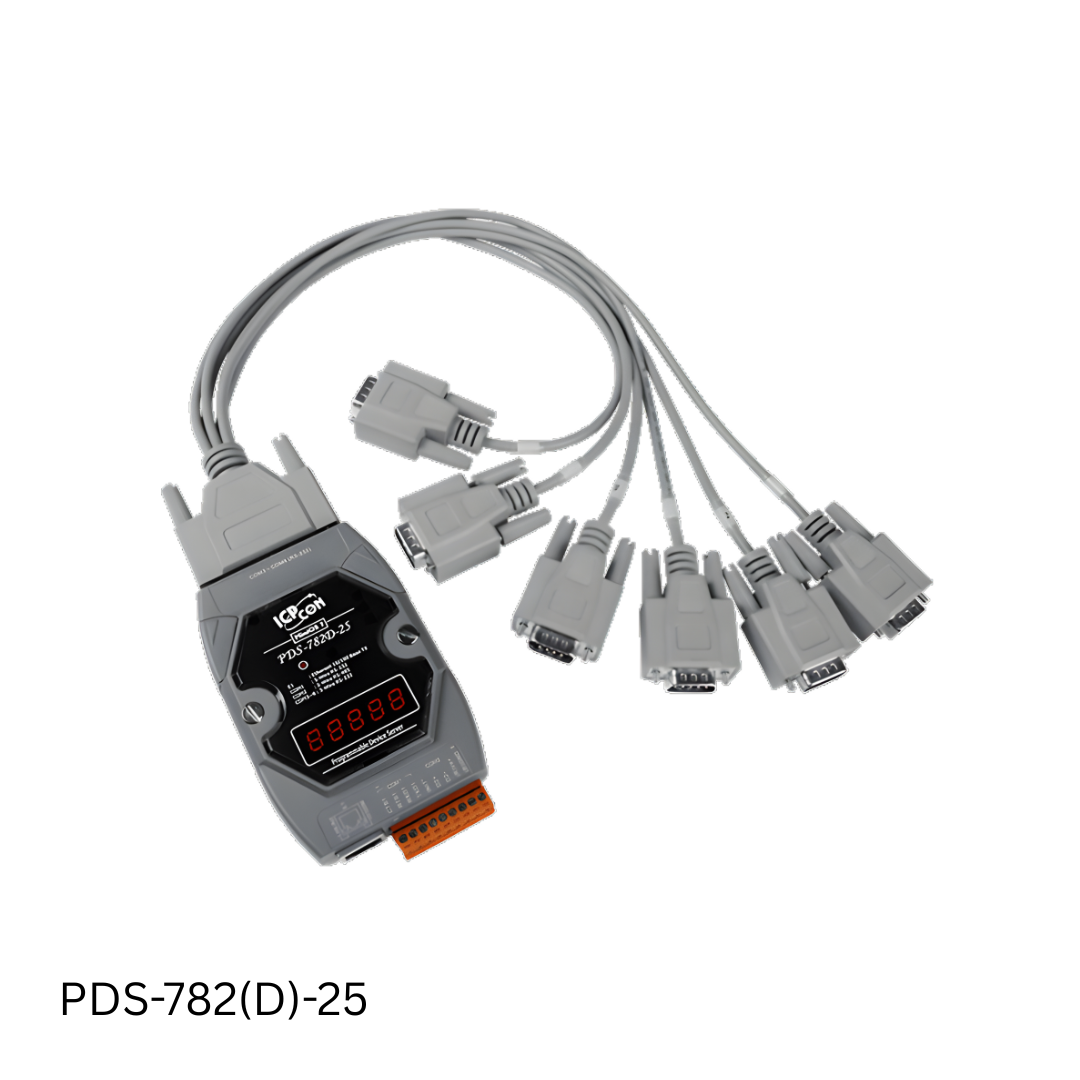

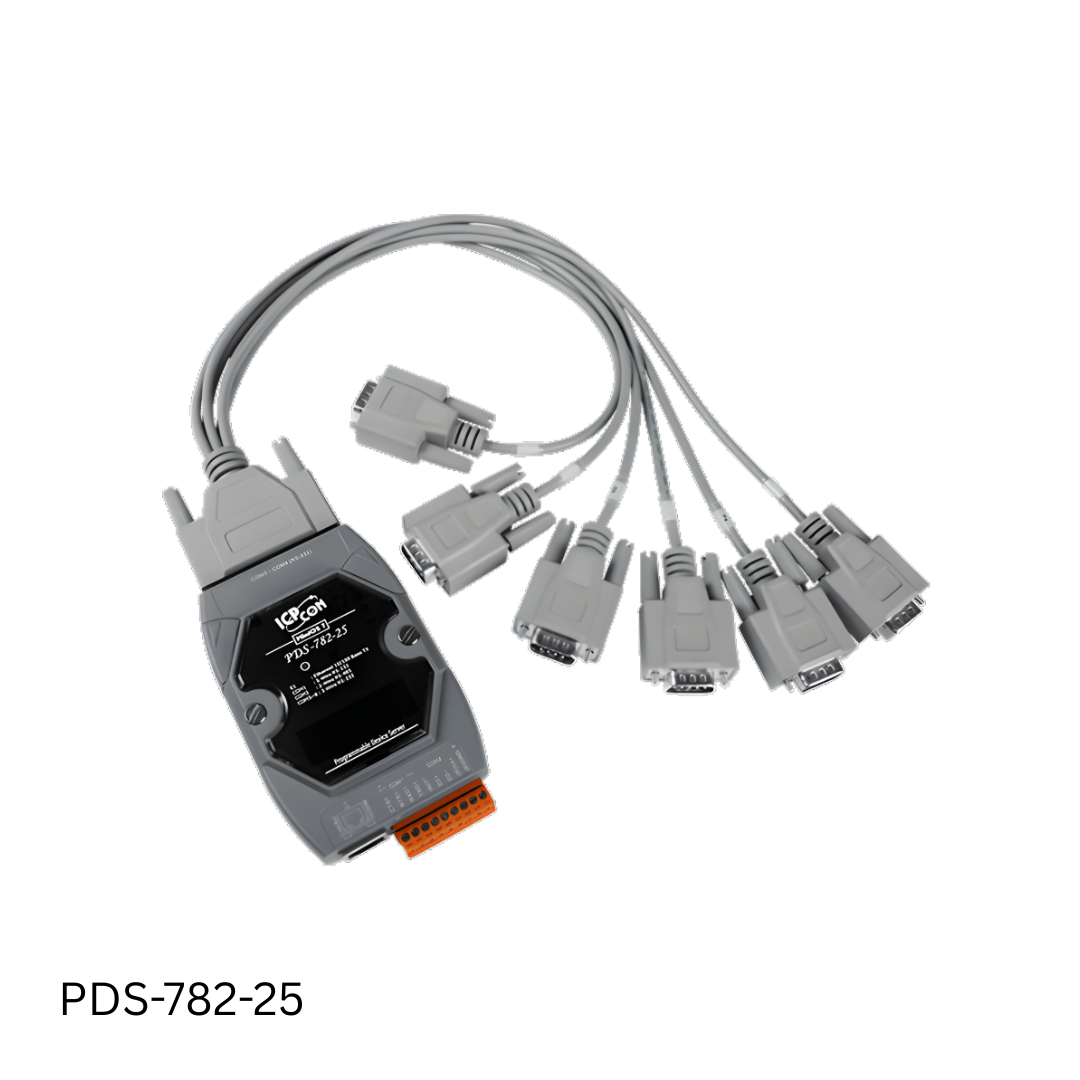

PDS-782(D)-25/D6 is equipped with 7 RS-232 ports and 1 RS-485 port. The CA-9-2505D cable converts the DB-25 connector of PDS-782(D)-25/D6 to 6 Male DB-9 connectors for easy wiring with serial devices that have female DB-9 connectors.
Request For Quotation
Description
Applications
- Factory Automation
- Building Automation
- Home Automation
Features
- Incorporate Serial Devices in an Ethernet network
- “Virtual COM” Extend COM Ports
- Virtual COM supports 32-bit and 64-bit Windows XP/2003/Vista/7/8
- Powerful Programmable Device Server
- Watchdog Timer suitable for use in harsh environments
- Power Reverse Polarity Protection
- Serial Port +/-4 kV ESD Protection Circuit
- Self-Tuner ASIC Controller on the RS-485 Port
- 5-digit LED Display (for versions with a display)
- RoHS Compliant with no Halogen
- Built-in High Performance MiniOS7 from ICP DAS
- 10/100 Base-TX Ethernet, RJ-45 Port
(Auto-negotiating, auto MDI/MDI-X, LED indicator) - ODM Service Is Available
- Low power consumption
- Palm-Sized with multiple Serial Ports
- Made from fire retardant materials (UL94-V0 Level)
- Male DB-9 Connector
System Specifications
| Models | PDS-782-25/D6 | PDS-782D-25/D6 | |
| CPU | |||
| CPU | 80186-80 MHz or compatible | ||
| SRAM | 512 KB | ||
| Flash Memory | Flash ROM: 512 KB ; Erase unit is one sector (64 KB) ; 100,000 erase/write cycles |
||
| EEPROM | 16 KB; Data retention: 40 years; 1,000,000 erase/write cycles. |
||
| Built-in Watchdog Timer | Yes | ||
| Communication Interface | |||
| Non-isolated | COM1 | RS-232 (TxD, RxD, RTS, CTS, GND) | |
| COM2 | RS-485 (D2+, D2-, GND) | ||
| COM3 | RS-232 (TxD, RxD,GND) | ||
| COM4 | RS-232 (TxD, RxD,GND) | ||
| COM5 | RS-232 (TxD, RxD,GND) | ||
| COM6 | RS-232 (TxD, RxD,GND) | ||
| COM7 | RS-232 (TxD, RxD,GND) | ||
| COM8 | RS-232 (TxD, RxD,GND) | ||
| RS-485 | Bias Resistor | Yes, 1 KΩ | |
| Node | 254 (max.) | ||
| Ethernet | 10/100 Base-TX, RJ-45 port (Auto-negotiating, auto MDI/MDI-X, LED indicator) |
||
| COM Port Formats | |||
| Data Bit | 7, 8: for COM1 and COM2 5, 6, 7, 8: for COM3 ~ COM8 |
||
| Parity | None, Even, Odd, Mark, Space | ||
| Stop Bit | 1: for COM1, COM2 1, 2: for COM3 ~ COM8 |
||
| Baud Rate | 115200 bps Max. | ||
| LED Indicators | |||
| 5-digit 7 Segment | – | Yes | |
| System | Red | ||
| Power | |||
| Protection | Power Reverse Polarity Protection | ||
| Required Supply Voltage | +12 ~ +48 VDC (non-regulated) | ||
| Power Consumption | 2.0 W | 2.7 W | |
| Mechanism | |||
| Flammability | Fire Retardant Materials (UL94-V0 Level) | ||
| Dimension (W x H x D) | 72 mm x 116 mm x 35 mm | ||
| Installation | DIN-Rail or Wall mounting | ||
| Environment | |||
| Operating Temperature | -25 ~ +75 °C | ||
| Storage Temperature | -40 ~ +80 °C | ||
| Humidity | 5 ~ 90% RH, non-condensing | ||
Ordering Informations
| PDS-782-25/D6 CR | Programmable Device Server with 7 RS-232 ports and 1 RS-485 port (RoHS) Includes One CA-0910 Cableand One CA-9-2505D Cable |
| PDS-782D-25/D6 CR | Programmable Device Server with 7 RS-232 ports, 1 RS-485 port and an LED Display (RoHS) Includes One CA-0910 Cableand One CA-9-2505D Cable |
