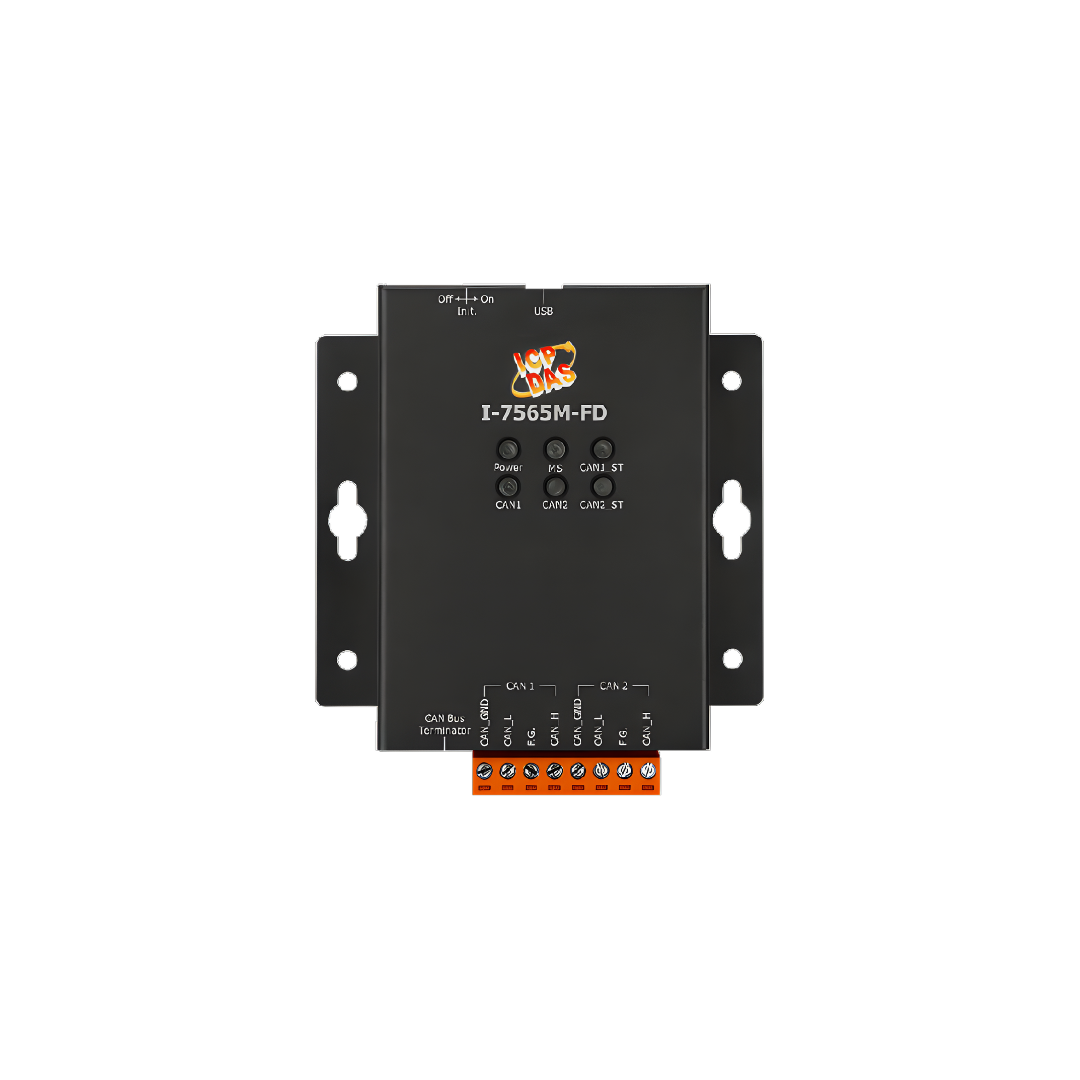

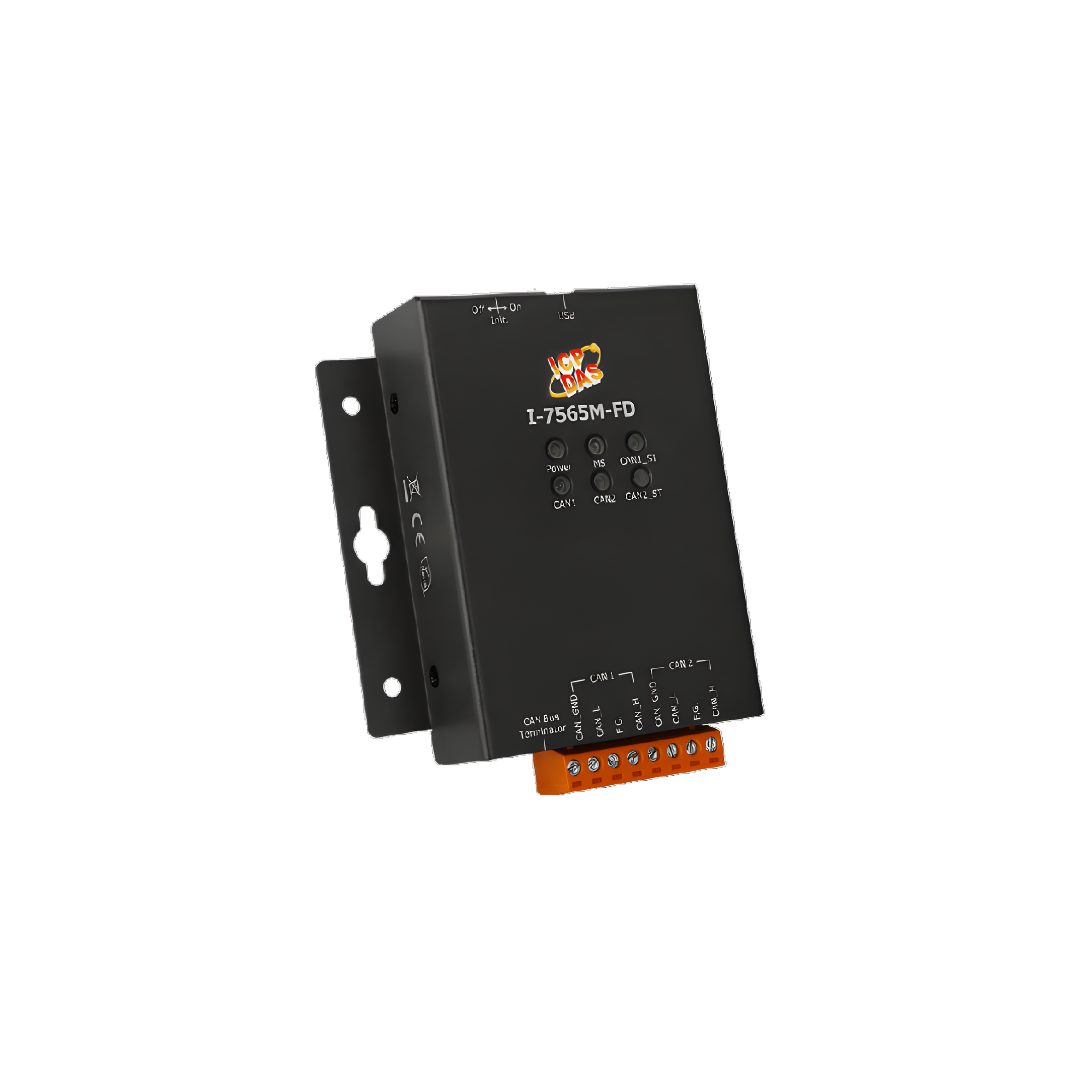

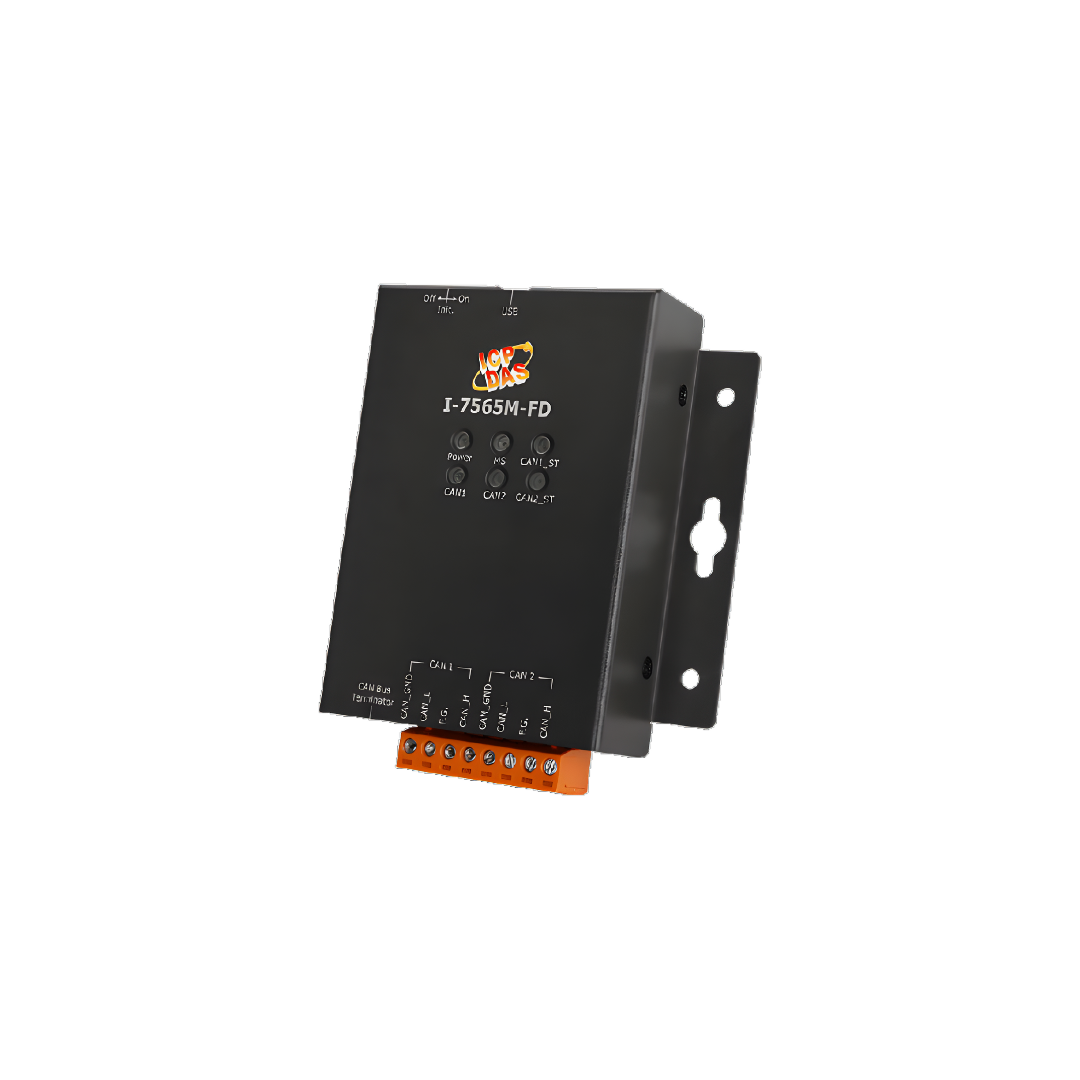

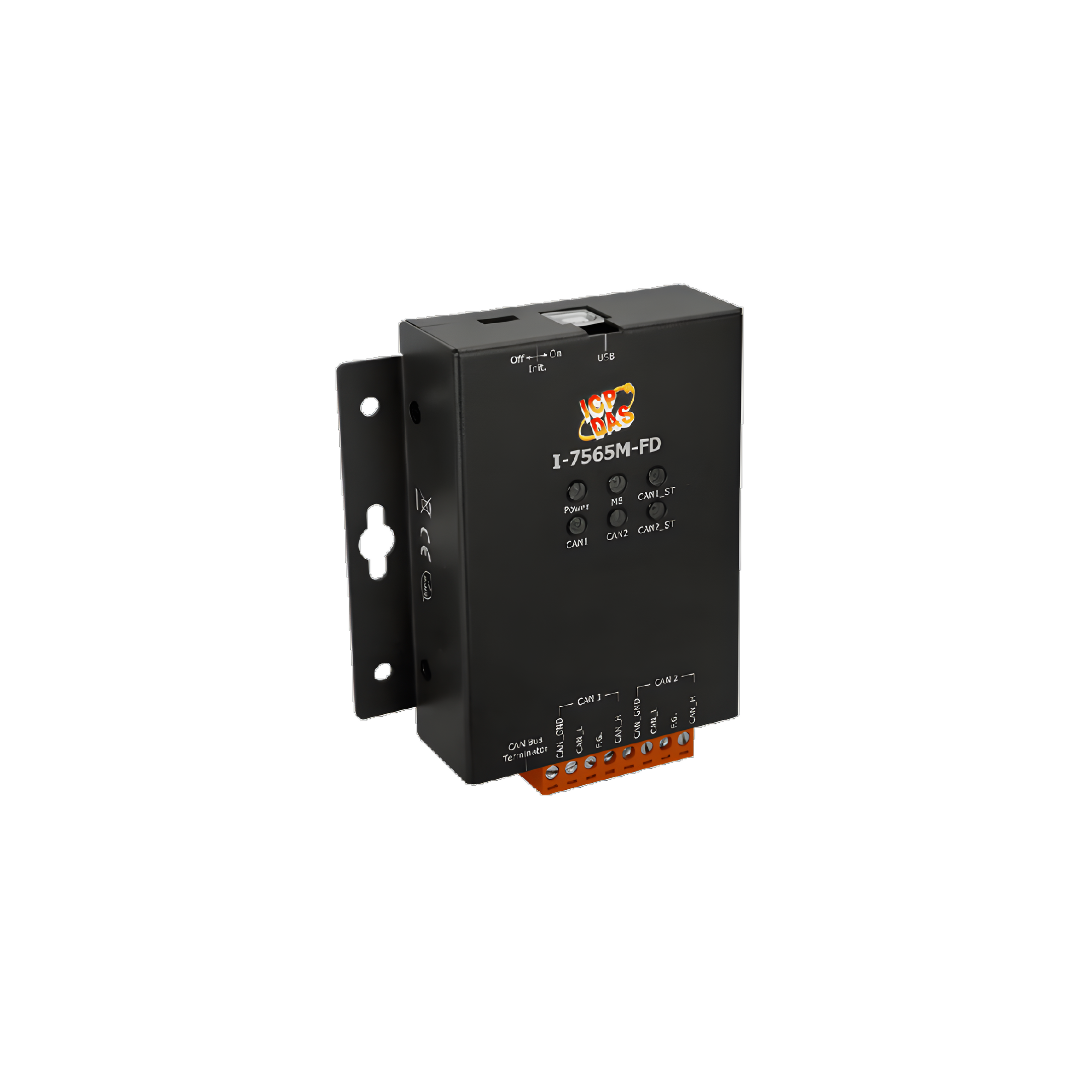

I-7565M-FD is a USB to CAN/CAN FD (CAN with Flexible Data-Rate) converter with two CAN channels. It allows transmitting/receiving CAN/CAN FD frames and supports CAN2.0A/2.0B and CAN FD (ISO/Bosch) specifications and different baud rates for CAN/CAN FD frame. (10 kbps to 1000 kbps for CAN arbitration phase and 100 kbps to 3000 kbps for CAN FD data phase). When connecting I-7565M-FD to PC, PC will load the relevant device driver automatically (hot plug & play). Therefore, users can make data collection and processing of CAN Bus network easier and quicker by applying I-7565M-FD. The application fields can be CAN Bus monitoring, building automation, remote data acquisition, environment control and monitoring, laboratory equipment & research, factory automation, etc.





Request For Quotation


    Categories: ,

    Description

    The following is the application structure for the USB to CAN/CAN FD module. The PC can be the CAN host, monitor or HMI to access/control the CAN/CAN FD devices through the CAN network by the I-7565M-FD Converter. The module let users to communicate with CAN/CAN FD devices easily from PC with USB interface.



    Applications

    • Factory Automation
    • Building Automation
    • Control System
    • Monitor System
    • Vehicle Automation









    Features

    • Compatible with USB 2.0 (High Speed)
    • Compatible with the ISO 11898-2 standard
    • Compatible with CAN specification 2.0 A/B and FD
    • CAN FD support for ISO and Non-ISO (Bosch) standards switchable
    • CAN FD bit rates for data field from 100 kbps to 3000 kbps
    • CAN bit rates from 10 kbps to 1000 kbps
    • Support CAN Bus message filter configuration
    • Time stamp resolution 1ms.
    • Voltage supply via USB
    • Watchdog inside
    • Provide PWR, CAN Tx/Rx and CAN status indication LEDs
    • Built-in dip-switch to select 120 ohm terminal resister for CAN Bus
    • Support firmware update via USB
    • Provide utility tool for users module setting and CAN Bus communication testing conveniently
    • Provide API library for user program development



    Utility

    Software

    • Provide CAN Bus baud rate / acceptance filter configuration
    • Easily transmit/receive CAN/CAN FD messages for testing and display the time-stamp of each received CAN/CAN FD message
    • Provide saving the CAN/CAN FD message as “TXT” file for data log
    • Provide sending CAN/CAN FD message by using the internal timer of module for high precision transmission
    • Check / Reset module status remotely and get current CAN/CAN FD messages flow

    Hardware Specifications

    CAN Interface
    Transceiver TI TCAN1042HG
    Channel Number 2
    Connector 8-pin terminal-block connector
    Transmission Speed CAN bit rates: 10 ~ 1000 kbps,
    CAN FD bit rates for data field: 100 ~ 3000 kbps
    Terminal Resistor DIP switch for the 120 Ω terminal resistor
    Isolation 3000 VDC for DC-to-DC, 2500 Vrms for photocoupler
    Specification ISO 11898-2, CAN 2.0 A/B and FD
    CAN Filter Configuration Selectable via Utility tool
    Receive Buffer 128 data frames
    Max Data Flow 3000 fps for Tx/Rx (Total CAN ports)
    USB Interface

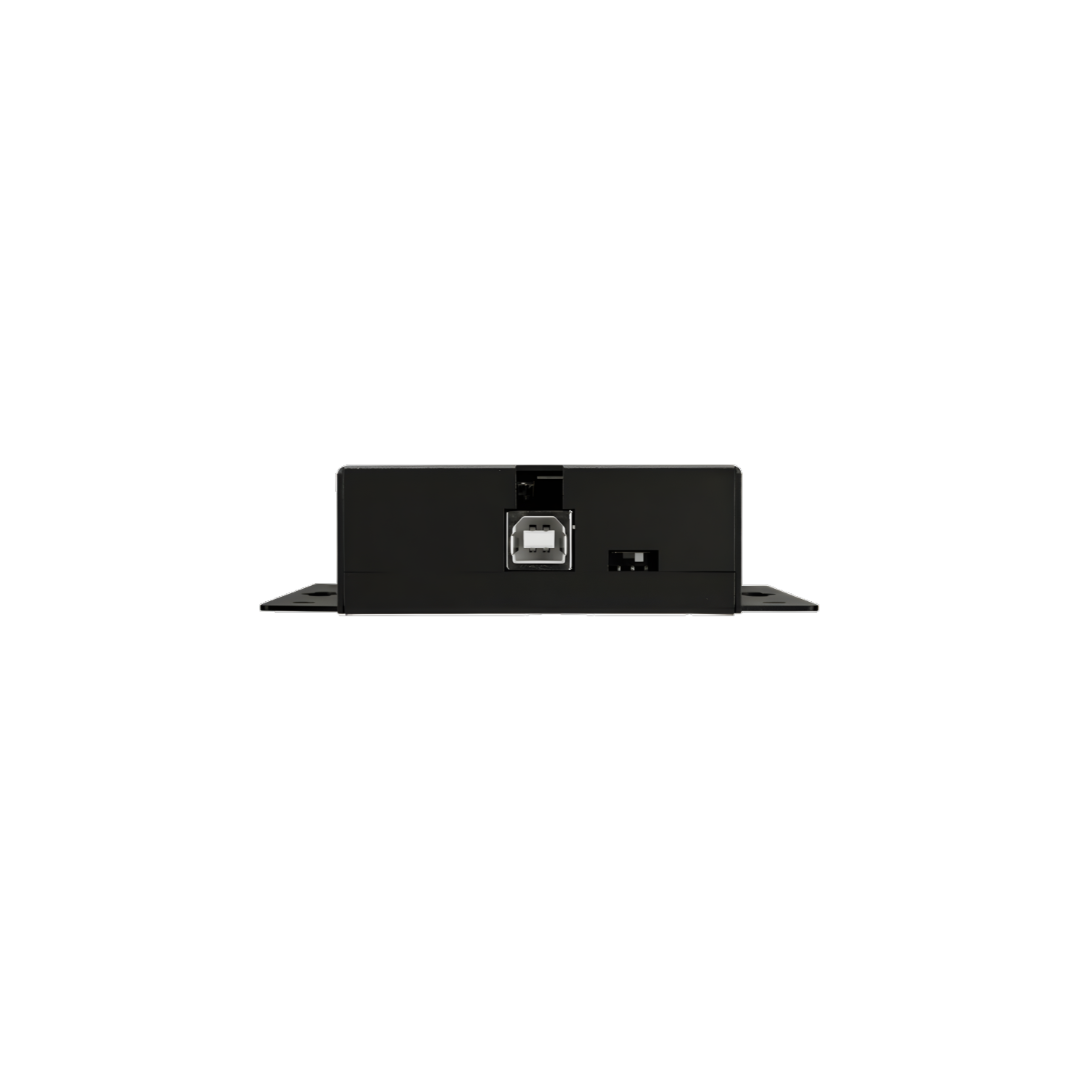

    Connector USB Type B x 1
    Compatibility USB 2.0 High Speed (480Mbps)
    Software Driver Built-in Windows 7/8.1/10
    LED
    Round LED Power, MS, CAN1, CAN2, CAN1_ST, CAN2_ST LEDs
    Power
    Power supply USB power delivery
    Power Consumption 1.5 W (Max.)
    Mechanism
    Installation Wall Mount
    Casing Metal
    Dimensions 111.0 mm x 102.0 mm x 27.0 mm (W x L x H)
    Environment
    Operating Temp. -25 ~ 75 ℃
    Storage Temp. -30 ~ 80 ℃
    Humidity 10 ~ 90% RH, non-condensing

    Hardware Structure

    Wire Connection

    Pin Assignment



    Ordering Informations

    I-7565M-FD CR
    		 USB to 2-port CAN/CAN FD Converter (RoHS)
