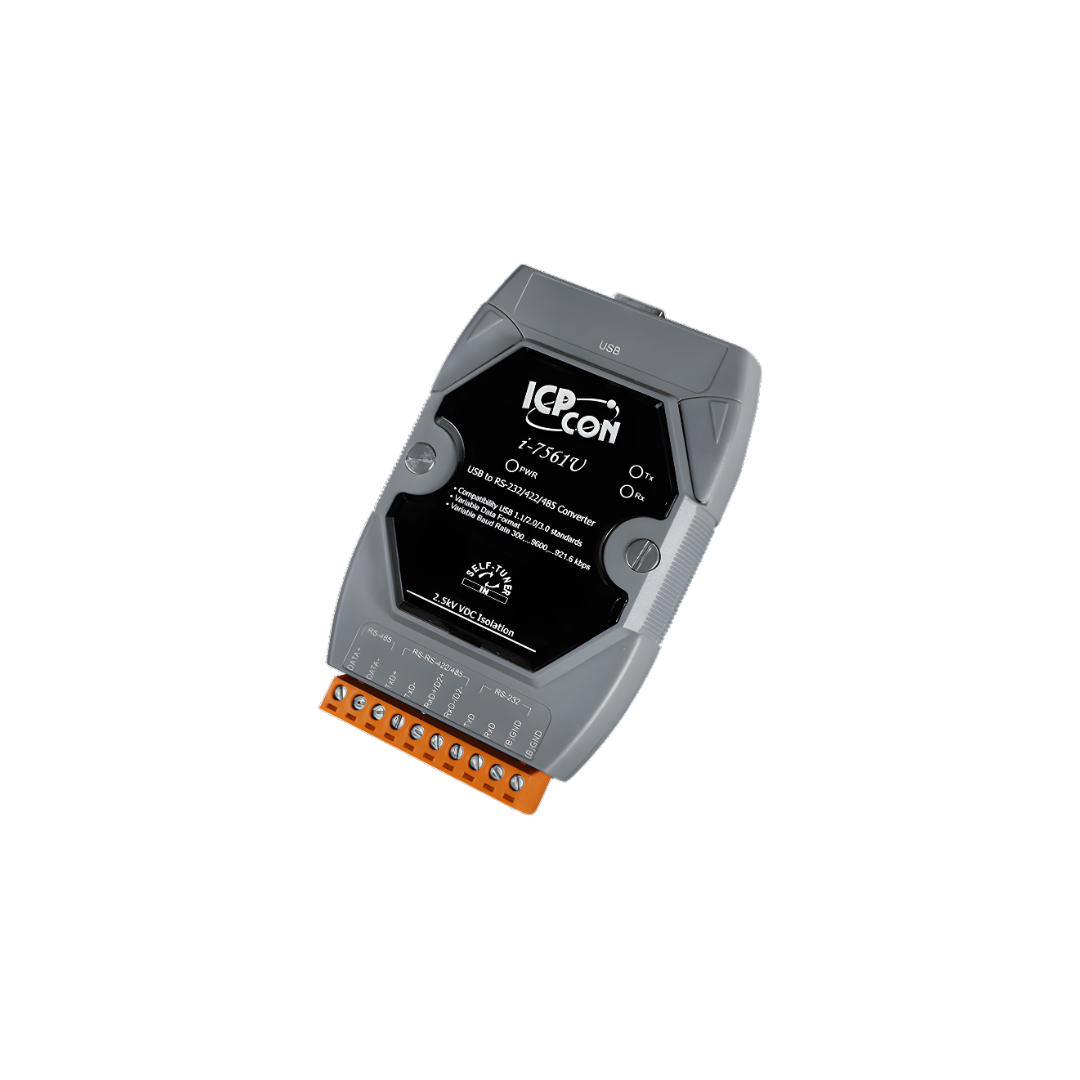

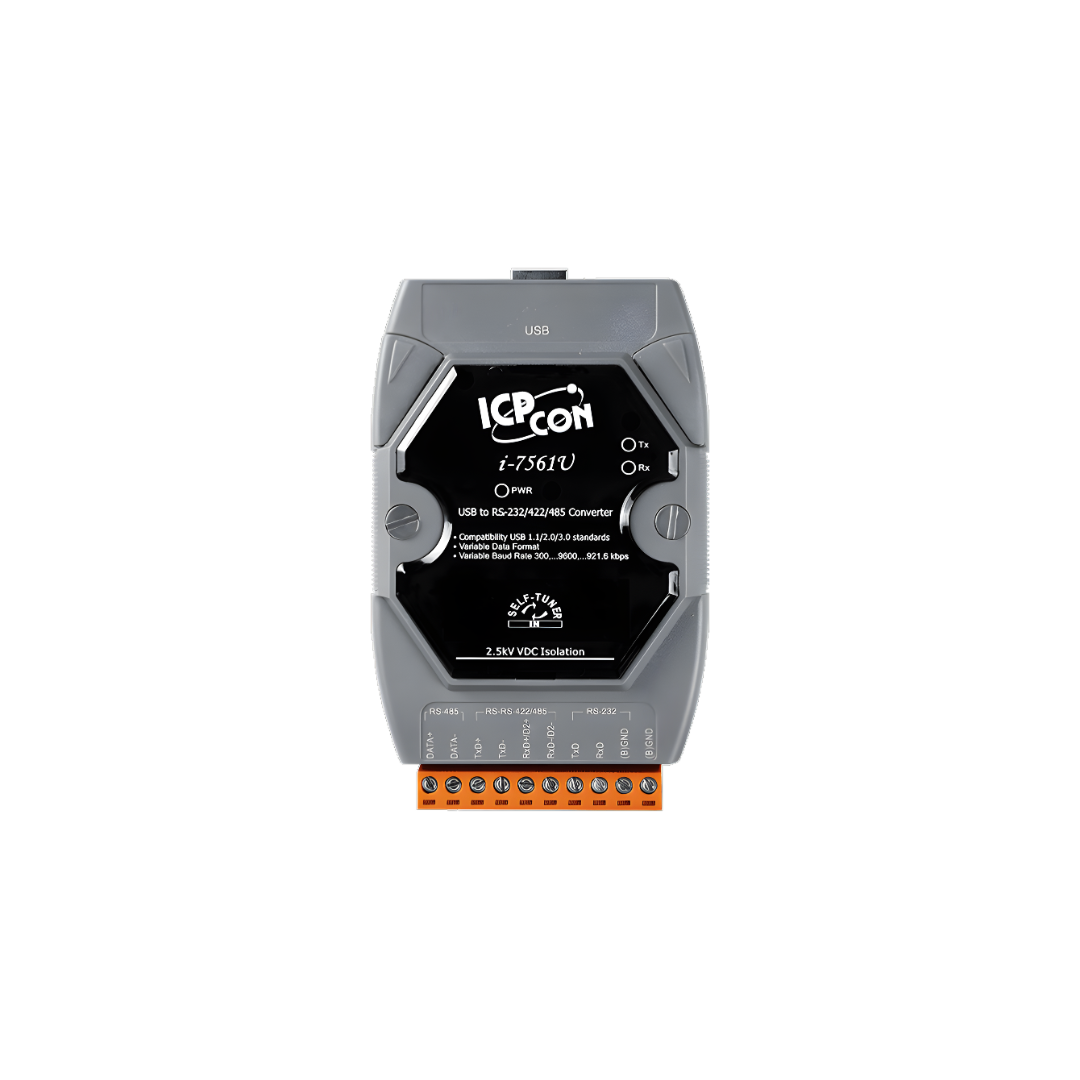

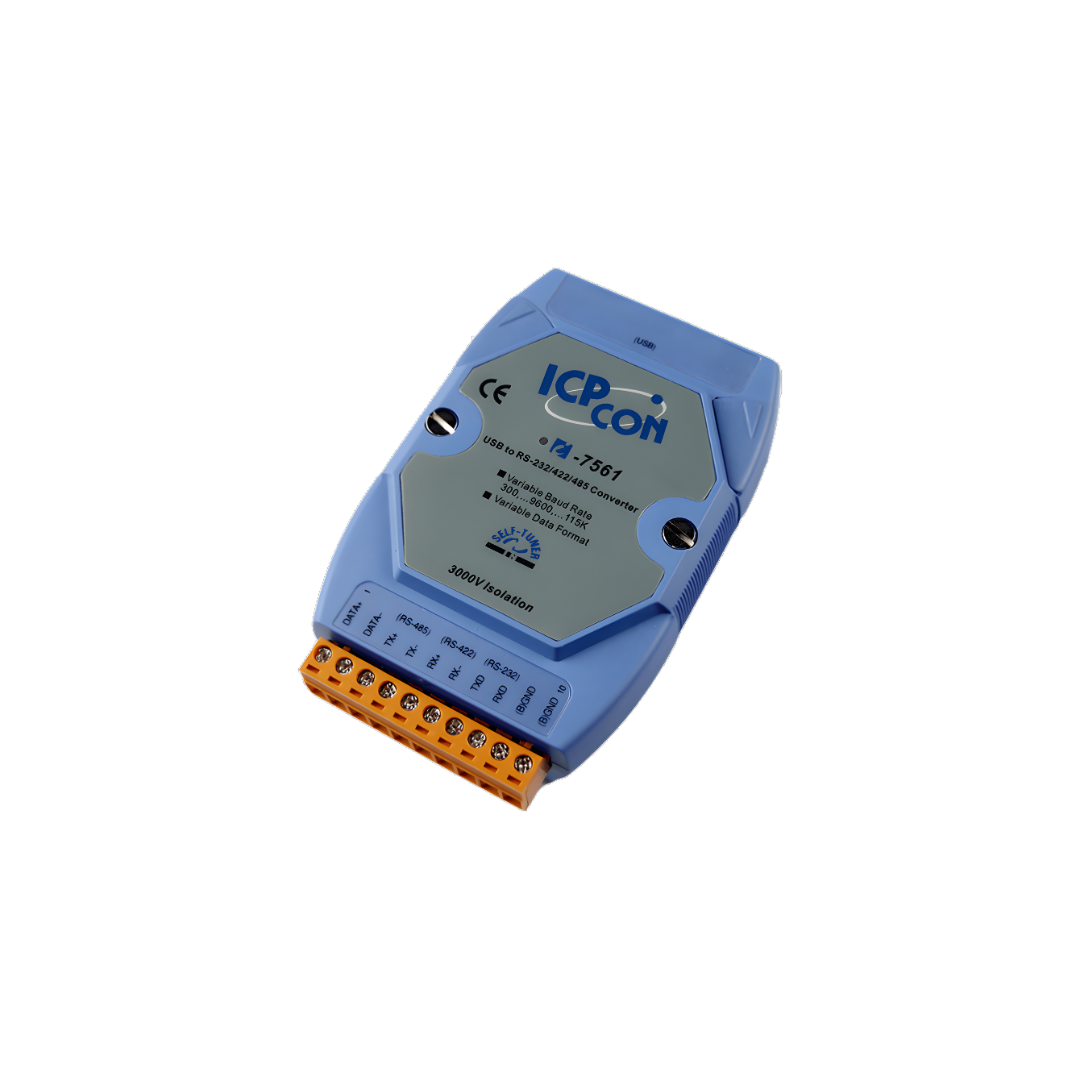

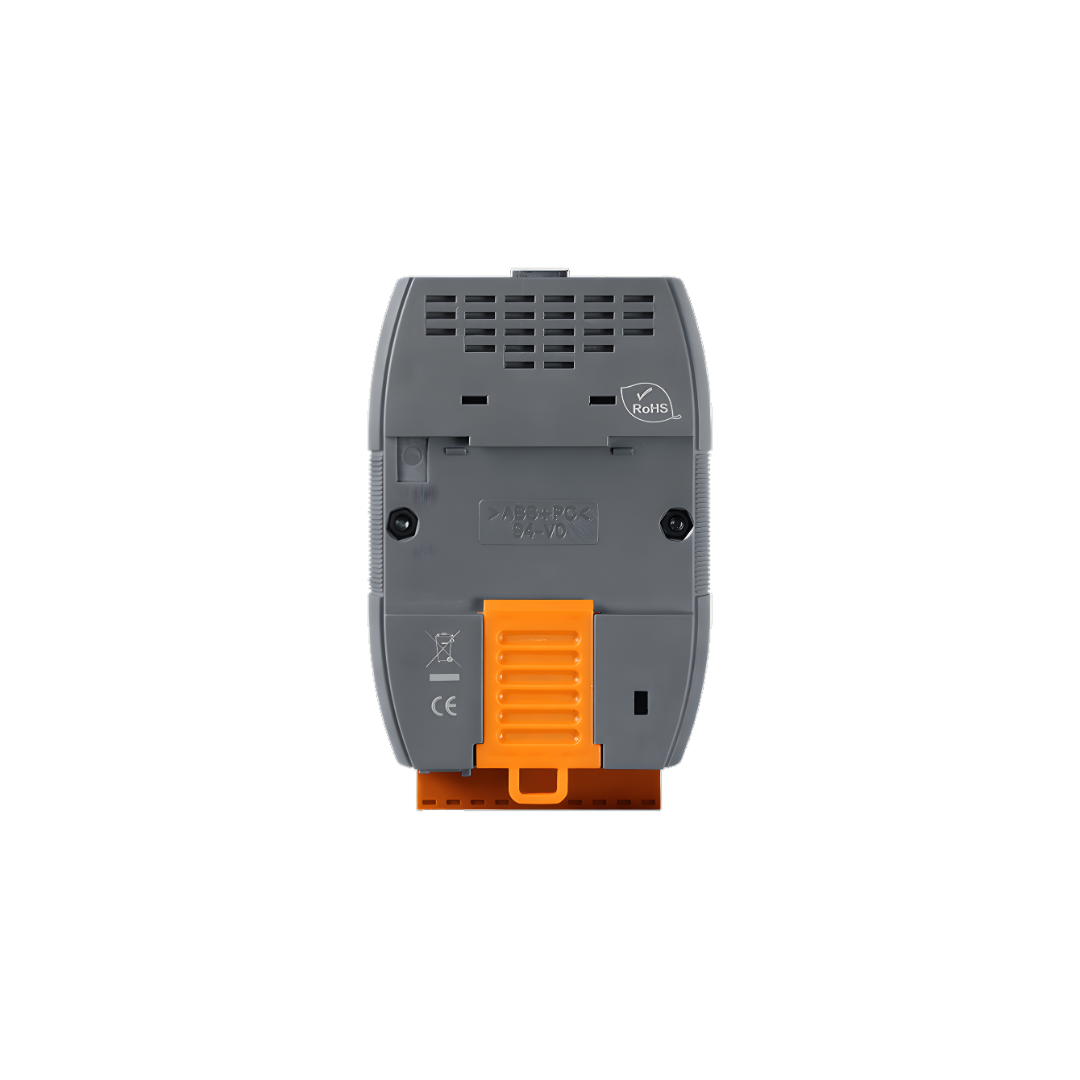

I-7561/I-7561U
The I-7561 is a cost-effective module for transferring serial data via USB. It allows you to connect your serial devices to systems that use a USB interface. Connecting the I-7561 to a PC, you get one RS-232/422/485 port. Like the I-7520A, the I-7561 contains “Self-Tuner” chip auto-tunes the Baud Rate and data format to the RS-485 network.The I-7561 module derives its power from the USB port and doesn’t need any power adapter.





Request For Quotation

    Category:

    Description





    Applications

    Features

    • Fully Compliant with the USB 1.1/2.0/3.0
    • 3000 VDC Isolation Protection on the RS-232/422/485 side
    • ESD Protection for the RS-232/422/485 Data Line
    • Transmission speed up to 921.6 kbps (For I-7561U)
    • No External Power Supply required
    • Automatic RS-485 Direction Control
    • Operating Temperatures, -25 °C ~ +75 °C
    • DIN-Rail Mounting



    Hardware Specifications

    Models I-7561 I-7561U
    Interface
    USB Fully Compliant with the USB 1.1/2.0/3.0
    Serial Interface RS-232 The RS-232, RS-422 and RS-485 cannot be used simultaneously
    • TxD, RxD, GND
    • TxD+, TxD-, RxD+, RxD-
    • Data+, Data-
    RS-422
    RS-485
    RS-422/485 Transmission Distance Max. 1,200 m at 9.6 kbps; Max. 400 m at 115.2 kbps
    (Belden 9841 2P twisted-pair cable, if different cables are used, the transmission distance may change)
    Self-Tuner Asic Inside (RS-485) Yes
    Speed 300 ~ 115200 bps 300 ~ 921.6 kbps
    Connection RS-232/422/485 Removable 10-Pin Terminal Block
    USB Type B
    Cable Included CA-USB18 (1.8 m Cable) x 1
    LED Indicators
    Power Yes
    Power
    Input Voltage Range +5 VDC from USB
    Power Consumption 0.5 W
    Environment
    Casing Plastic
    Flammability Fire-Retardant Materials (UL94-V0 Level)
    Dimensions (W x H x D) 72 mm x 115 mm x 35 mm
    Installation DIN-Rail
    Environment
    Operating Temperature -25 °C ~ +75 °C
    Storage Temperature -30 °C ~ +75 °C
    Humidity 10 ~ 90% RH, non-condensing

    Hardware Structure

    Pin Assignment



    Ordering Informations

    I-7561 CR USB to Isolated RS-232/422/485 Converter (RoHS)
    I-7561-G CR USB to Isolated RS-232/422/485 Converter (Gray Cover) (RoHS)
    I-7561U-G CR USB to Isolated RS-232/422/485 Converter (Gray Cover) (RoHS)
