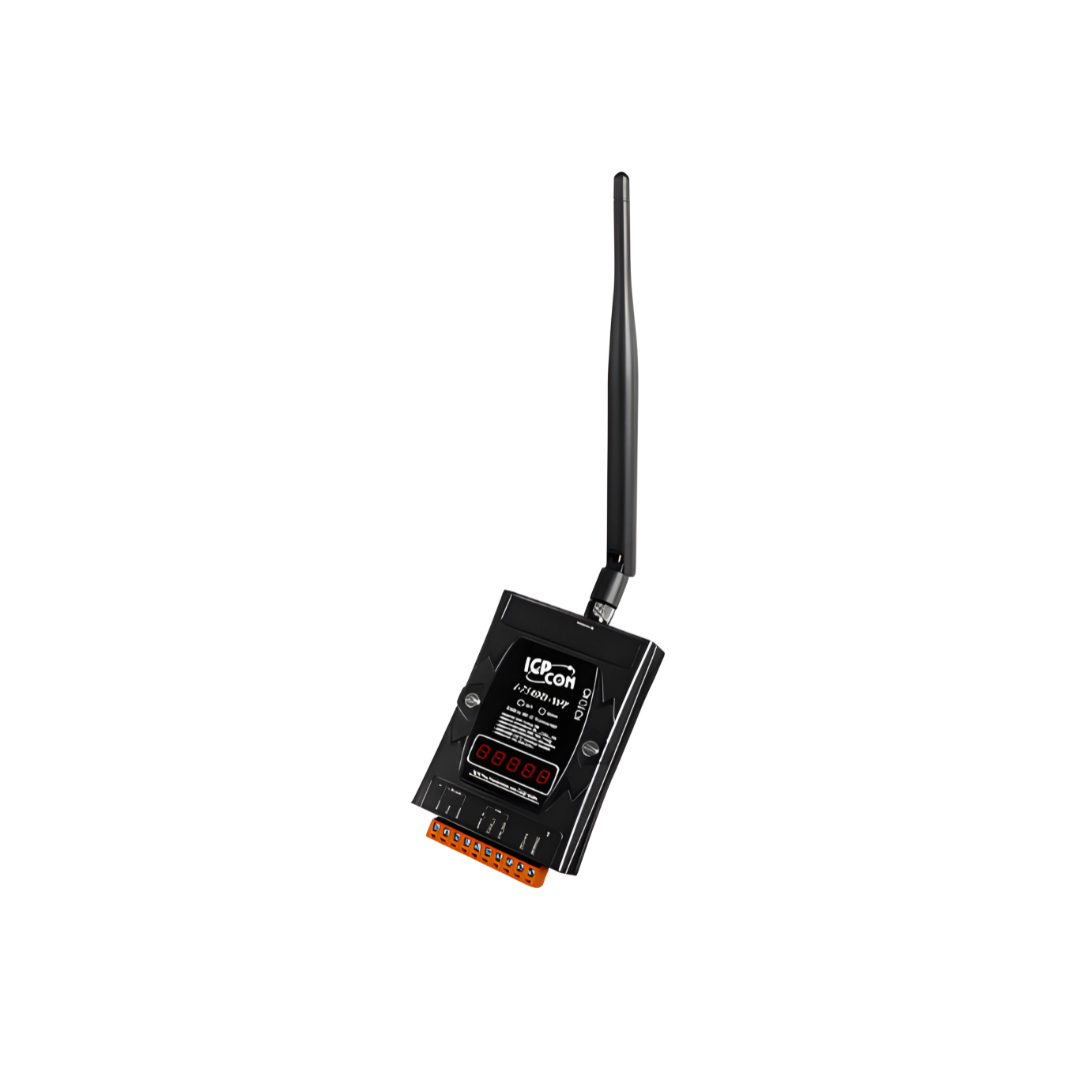

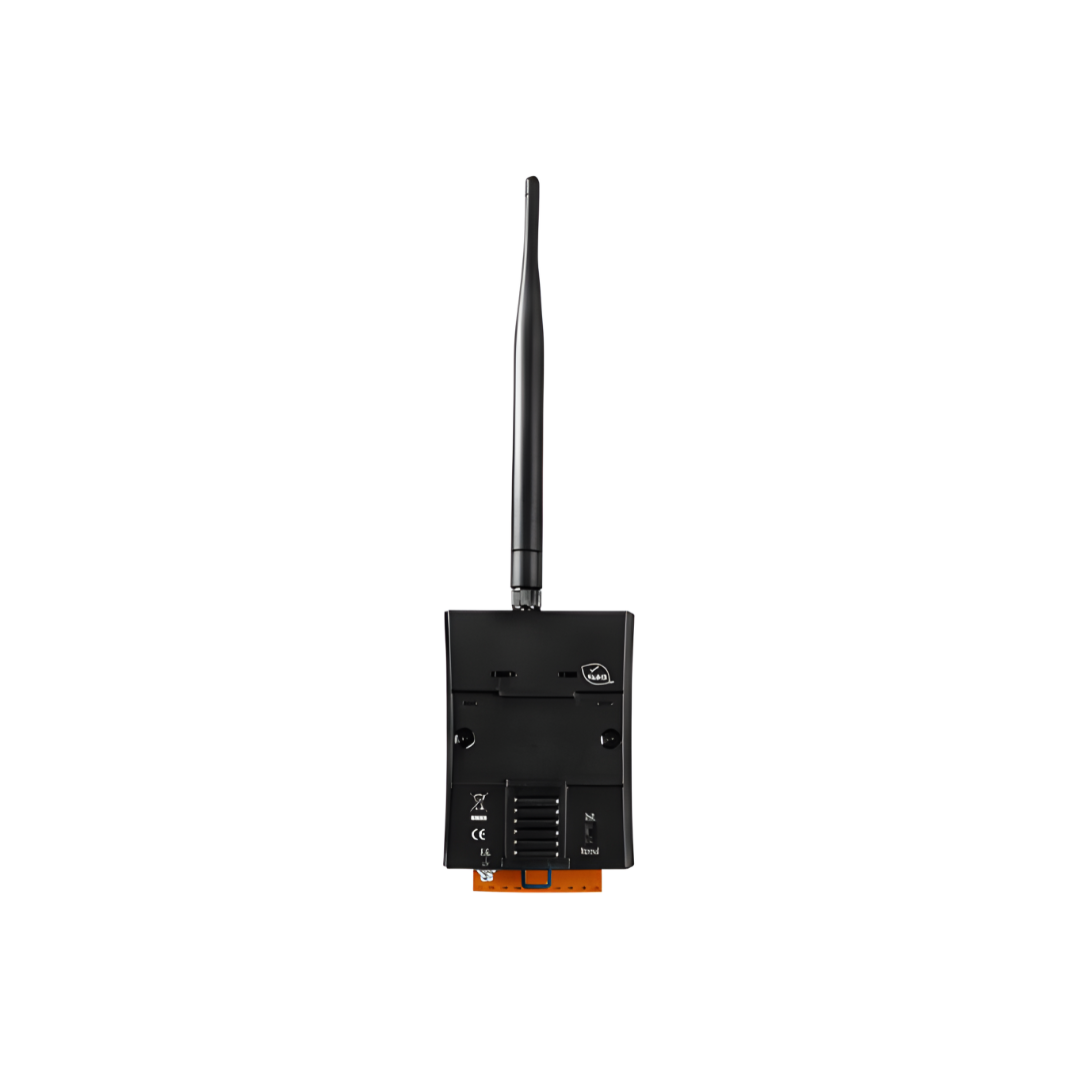

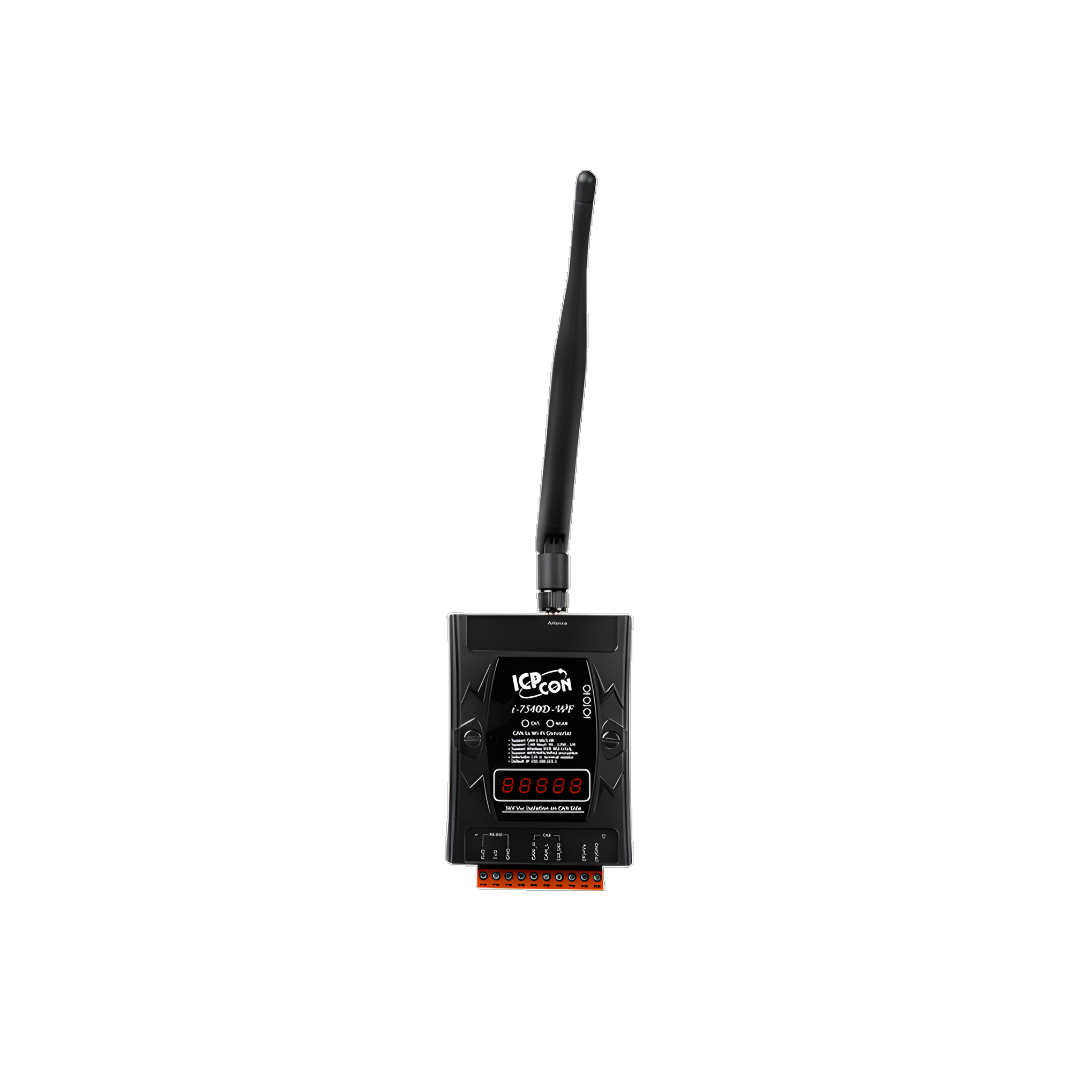

I-7540D-WF

The I-7540D-WF supports the wireless transmission of CAN data between a CAN network and a WLAN network according to the 802.11b/g standard. It provides CAN to WLAN converter functionality together with wireless transparent transmission on the CAN network. The I-7540D-WF is highly suitable for connecting mobile (e.g., vehicles or machines) or stationary CAN networks and is often used in short ranges up to 100 m. Using an appropriately configured router, CAN data can be determined to pass or filter from the CAN networks to the Ethernet. The wireless connection that is established between two I-7540DWF units can be used instead of a cable, and enables the connection of CAN networks that would otherwise be difficult to link such as rotational machineries.





Request For Quotation

    Category:

    Description



    Applications









    Features

    • IEEE 802.11b/g compliant
    • Wireless data transmission via WLAN
    • Two different operation modes: infrastructure and ad-hoc
    • point to point or point to multi-points connection via wireless LAN
    • Supports WEP, WPA and WPA2 encryption for wireless LAN
    • CAN 2.0A/2.0B compliant
    • Connect CAN networks via a WLAN bridge
    • Communication efficiency: one-way is up to 700 fps (client->server, server->client)，two-way 350 fps (client<=>server)
    • Wireless transmission distance: up to 100 meters



    Utility

    Hardware Specifications

    CAN Interface
    Controller
    CAN Controller inside
    Transceiver
    NXP 82C250
    Channels
    1
    Connector
    10-pin screw terminal connecter
    Baud Rate (bps)
    5K ~ 1Mbps
    Isolation
    3000 VDC power protection on CAN side, 2500Vrms photo-couple isolation on CAN bus
    Terminal Resistor
    Selectable 120Ω terminal resistor by jumper
    Specification
    ISO-11898-2, CAN 2.0A and CAN 2.0B
    Max Data Flow
    700 fps(peak value, one-way)
    UART Interface
    Connector
    10-pin screw terminal connecter
    COM1
    RS-232(TXD, RXD, GND)
    Baud Rate (bps)
    115200
    Wi-Fi Interface
    Antenna
    5 dBi (Omni-Directional)
    Standard Supported
    IEEE 802.11b/g
    Transmit Power
    14dBm @802.11b / 12dBm @802.11g
    Receiver Sensitivity
    -87dBm @802.11b / -72dBm @802.11g
    Operation Mode
    Infrastructure & Ad-hoc
    Encryption
    WEP, WPA and WPA2
    Frequency Ranges
    2.412GHz ~ 2.484GHz
    Transmission distance
    Up to 100 meters
    LED
    Round LED
    PWR / Wi-Fi / CAN / CNT / WLAN
    Power
    Power supply
    +10 ~ +30 VDC
    Protection
    Reverse polarity protection, Over voltage protection, Over current protection
    Power Consumption
    1.5 W
    Mechanism
    Installation
    DIN-Rail
    Dimensions
    117mm x 76mm x 37mm (H x W x D)
    Environment
    Operating Temp.
    -25 ~ 75 ℃
    Storage Temp.
    -30 ~ 80 ℃
    Humidity
    10 ~ 90% RH, non-condensing

    Hardware Structure

    Wire Connection

    Pin Assignment



    Ordering Informations

    I-7540D-WF CR
    		 CAN to Wi-Fi Converter (RoHS)

    Datasheet

    I-7540D-WF

    I-7540D-WF_QuickStart_v1.1_EN

    I-7540D-WF_UserManual_v2.0_EN
