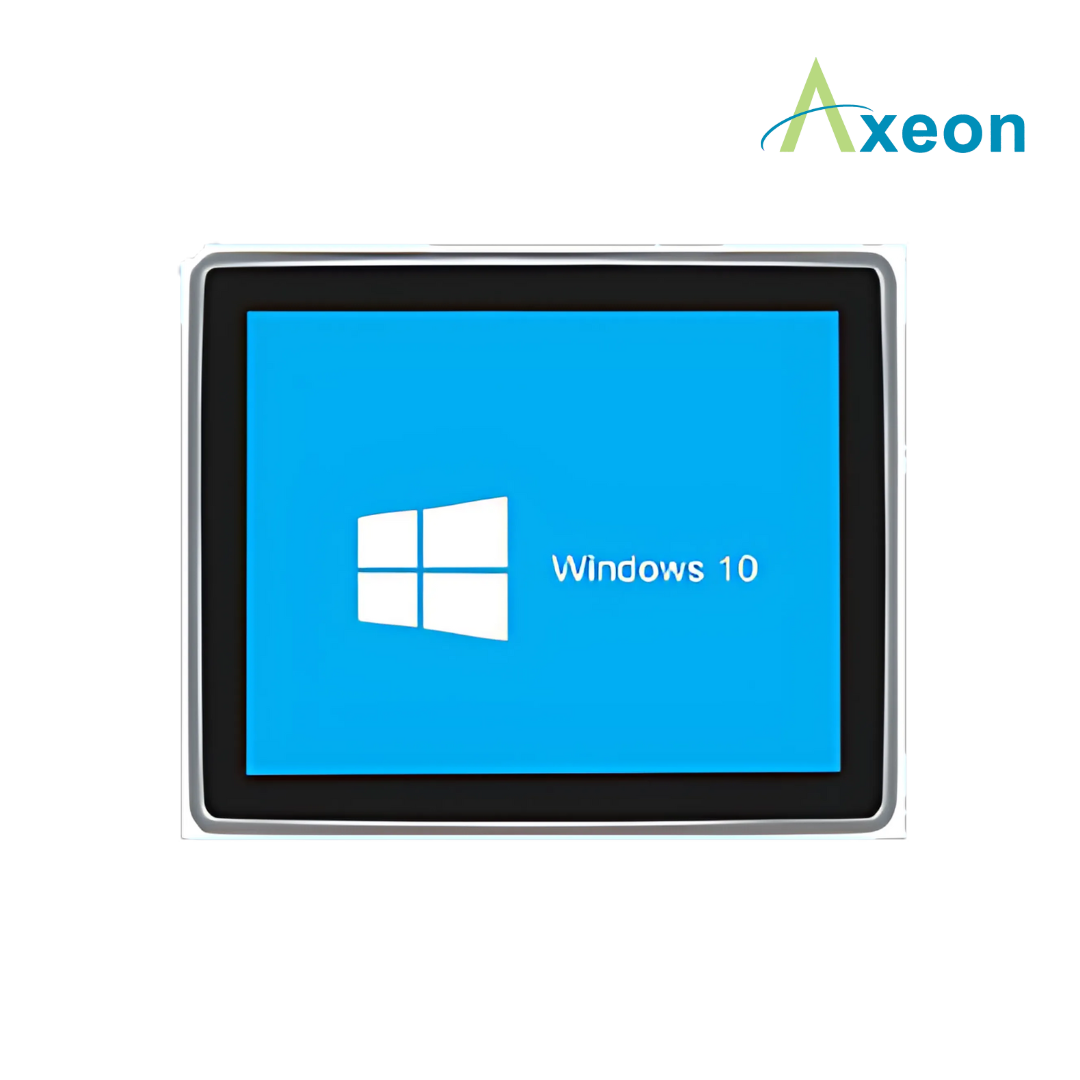

Features
- Die-cast aluminum alloy molding, fanless design
- Onboard Intel Whiskey Lake U series processor
- Support 9V ～ 36V wide voltage Input, and TPM2.0 security encryption
- Support 2*RS232/422/485 COM, 6*COM Optional; Support 2*Intel LANs,
(4*Intel LANs Optional); IP65 full - Windows 10, 11, IoT and Linux Ubuntu supported
Description
| Model | AXPPC-600A |
| Processor | Onboard Intel Core i5-10310U (4 cores 8 threads, 1.7GHz, Max turbo 4.4 GHz, 6MB Cache) |
| Onboard Intel Core i7-10810U (6 cores 12 threads, 1.6GHz, Max turbo 4.9GHz, 12MB Cache) | |
| Memory | Support 1*DDR4 2133/2400 SODIMM Memory, Max Support 32GB |
| BIOS | AMI EFI BIOS |
| Display Chip | Integrated Intel UHD Graphics |
| Display Port | 1*HDMI, 1*LVDS (Support synchronous and asynchronous dual display) |
| Storage | Onboard 1*M.2 2280 slot (SATA Protocol), 1*2.5″ HDD (Support RAID) |
| Expansion Slot | Support 1*Mini PCIE slot (Support WIFI/Bluetooth/3G/4G (Optional embedded SIM slot) |

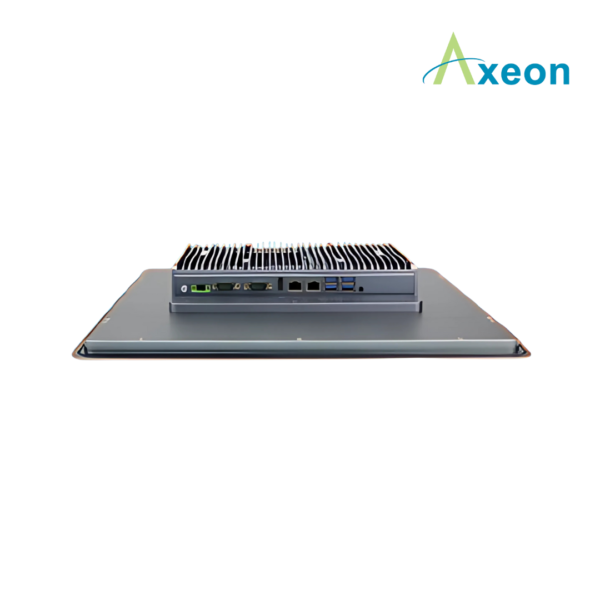

| I/O | 1*HDMI, 2*COM (COM1&COM2 support RS232/RS422/RS485,6*COM Optional),
1*2-Pin power supply phoenix connector, 1*Audio (Support Mic and Speaker at the same time), 4*USB3.0, 2*Intel 1000M LAN |
| Other Function | TPM2.0 security encryption, Auto power on when there is electricity, Timing boot, Wake on LAN, PXE boot, Watchdog (level 0~255) |
| Expansion Function | (Standard version doesn’t set these function) GPIO (8 Input 8 Output), 2*LAN, 4*COM, 2*USB2.0 (Standard version doesn’t include these ports) |
| LCD | Screen size: 17 inch TFT-LCD; Brightness: 350 cd/m2; Viewing Angle: Full Angle Screen ratio: 4:3; Resolution: 1280 * 1024 |
| Touch Screen | Industrial grade multi-touch resistive touch screen with a lifespan of more than 50000 Thousand Times |
| Speaker | Two 8-ohm 2-watt speaker |
| Input Voltage | DC 9V ～ 36V wide voltage input, supports positive pole and negative electrode connect reversely protection |
| Application | Industrial Automation, Medical, Logistics Transportation, Warehousing, Machine Vision and other fields |
| Structure Parameter | |
| Color | Titanium Gray (Color can be customized) |
| Material | Aluminum alloy chassis |
| Dimension | 408.5 * 346 * 61 mm |
| Weight | 5.8 kg |
| Environmental Parameter | |
| Work Temp | 0℃ ～ +50℃ (Commercial), -20℃ ～ +60℃（Industrial SSD), Surface air flow |
| Work Humidity | 5% ～ 95% non-condensing |
