Features
- High quality all aluminium structure and fanless design
- Onboard Intel Celeron J6412 Quad core processor (Elkhart Lake)
- Support 4*Intel i226-V 2.5G LAN
- Support 1*HDMI, 1*DP
- Support 1*DDR4 SO-DIMM memory, Max. 32GB
- Support OS such as PFSENSE / OPNsense
Description
| Model | AXBOX-NA141 |
| Processor | Onboard Intel Celeron J6412 Quad core processor (Elkhart Lake) |
| Memory | 1* DDR4 3200MHz SO-DIMM memory slot, Max Support 32GB |
| BIOS | AMI EFI BIOS |
| Display Chip | Intel® UHD Graphics |
| Display Port | 1*HDMI, 1*DP (supports synchronous & asynchronous dual display) Max Resolution. 4096×2160@60Hz |
| Storage | 1*M.2 2280 slot, 1*2.5 inch HDD/SSD |
| Expansion Slot | Support 1*M.2 2280 M-Key slot (support SATA protocol) Support 1*M.2 2230 E-Key slot (PCIe & USB2.0, support 4G), External SIM card slot Support 1*Mini-PCIe slot (support WIFI, BT, 4G) |

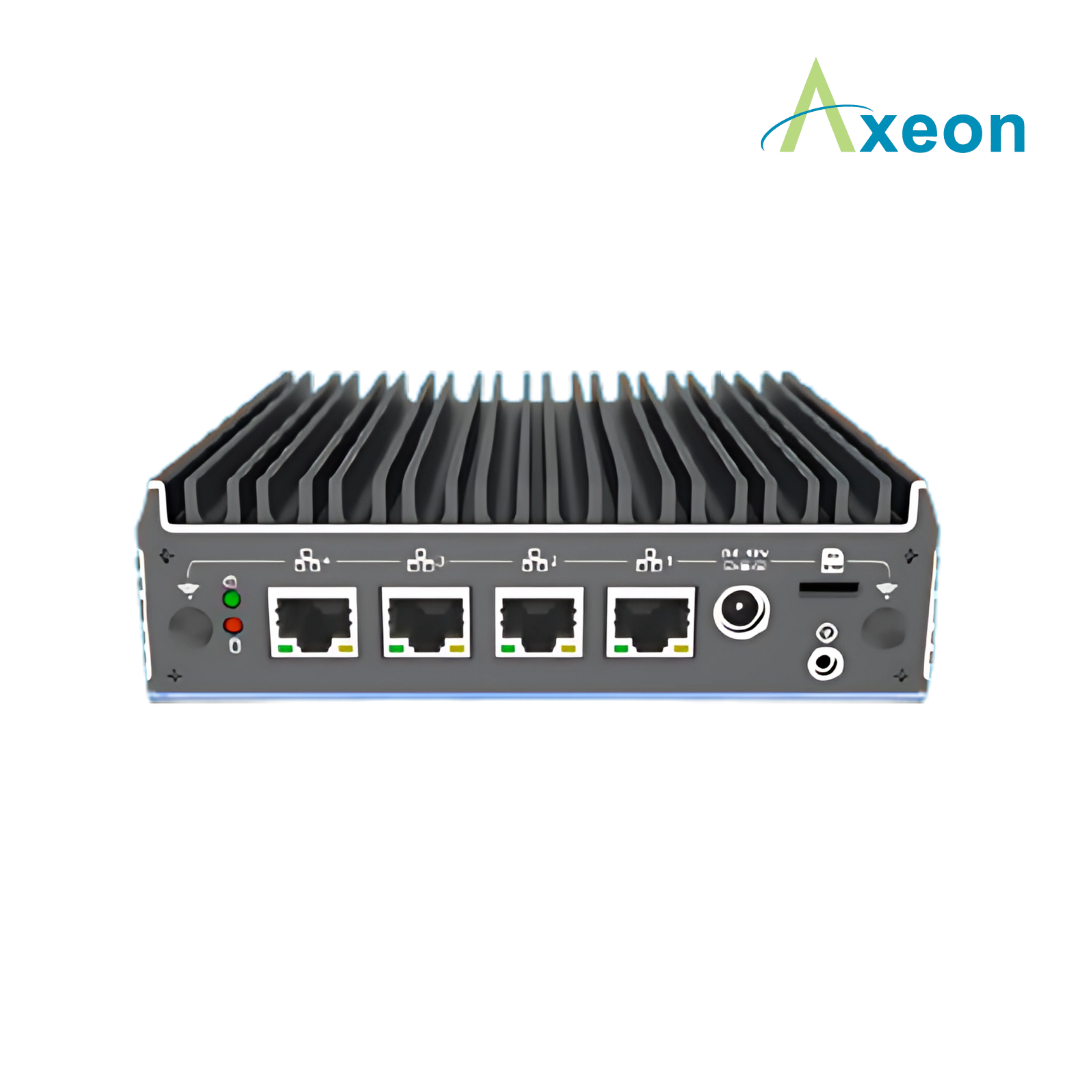

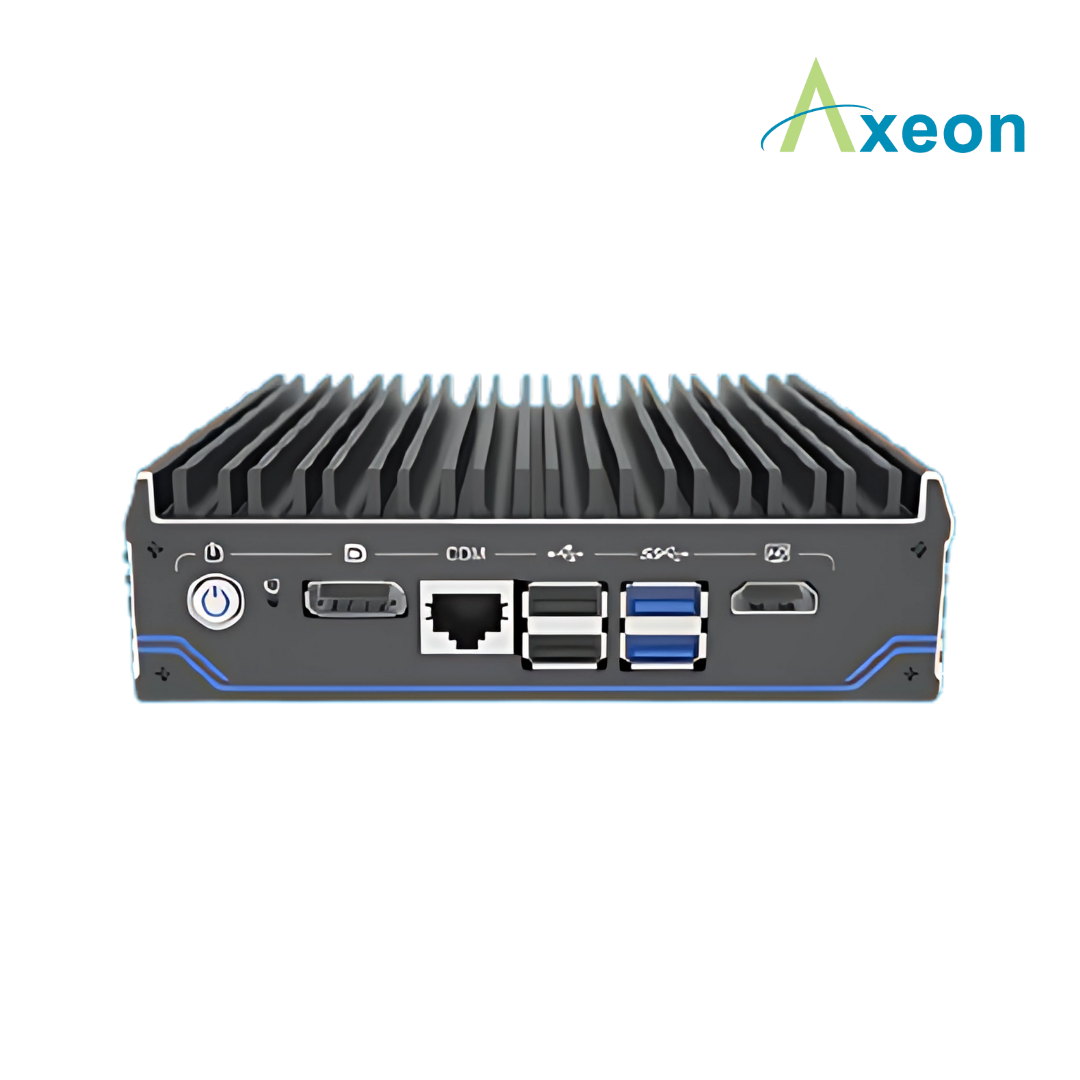

| I/O | Front I/O: 1*Power button, 1*DP, 1*RJ-45 COM port (Support console function), 2*USB2.0, 2*USB3.1, 1*HDMI Rear I/O: 2*Antenna opening, 4*RJ-45 LAN, 1*DC-in, 1*Audio jack, 1*External SIM card slot |
| Other Function | Power-on, timed startup, network wake up, PXE boot, Watchdog (level 0-255), TPM2.0 security encryption |
| Network | 4*Intel i226-V 100/1000/2500M Ethernet |
| Input Voltage | Support DC 12V input |
| Certificates | CE, CCC, FCC Class A, RoHS |
| Application | Network security, Industrial Automation, Robot, IoT gateway, Edge computing, Machine Vision, AGV/ARM, etc. |
| Structure Parameter | |
| Color | Metallic Black (Colors can be freely customized) |
| Material | High quality all aluminium |
| Dimension | 170 * 140 * 58 mm |
| Weight | 1.1 kg |
| Environmental Parameter | |
| Work Temp | 0℃ ～ +40℃ (business HDD), -20℃ ～ +50℃ (Industrial SSD), Surface air flow |
| Work Humidity | 5% ～ 95% Non-condensing state |
