RISC-based DIN-rail Fanless Embedded System with i.MX 6UL Processor, COM, LAN, DIO (2-in/2-out), 4 AI Channels (16-bit, 250 kS/s) and 2 PCIe Mini Card Slots


  • RISC-based (i.MX 6UltraLite) processor 528 MHz
  • 512MB DDR3 SDRAM onboard
  • 8GB eMMC flash onboard

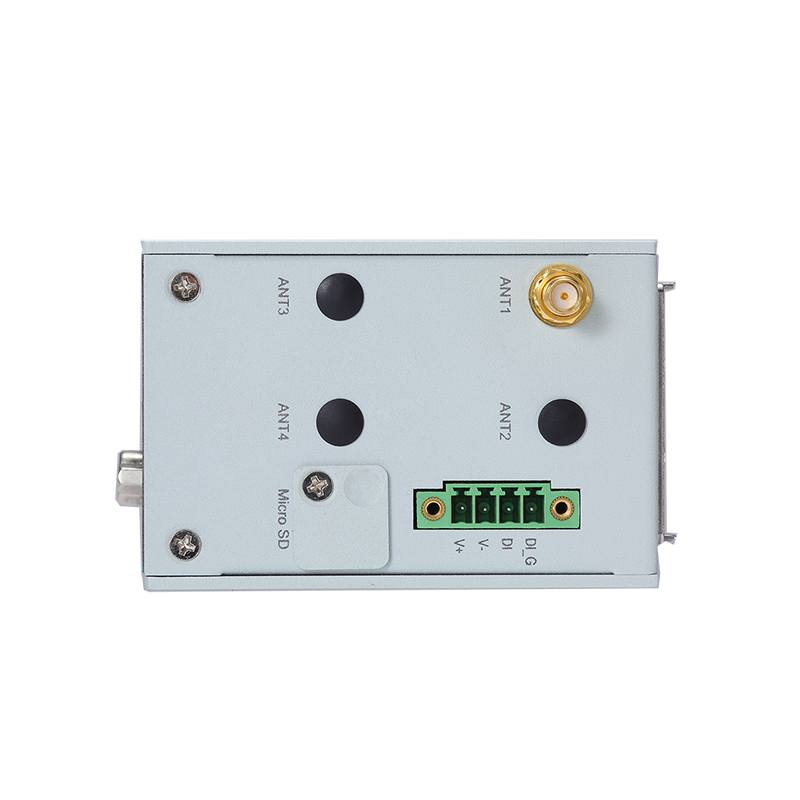

  • 2 PCI Express Mini Card slots (Wi-Fi, 3G/4G or LoRa)
  • 4 isolated analog input channels (16-bit, 250 kS/s)
  • 1 isolated COM port
  • 1 isolated DIO (2-in/2-out)
  • Embedded Linux operating system (Yocto)
  • Wide operating temperature range from -40°C to +70°C
  • Supports LabVIEW versions later than 2016
  • Supports OPC UA


The IRU152 is powered by the low-power NXP i.MX 6 UltraLite processer. It can withstand an extended operating temperature range of -40°C to +70°C and up to 2G of vibration for operating in harsh environments. Furthermore, it supports NI LabVIEW to allow users to design graphical user interfaces for their measurement applications quickly and efficiently. In order to provide data collection and device control, the IRU152 comes with various I/O connectors, including four analog input (AI) channels, one isolated RS-232/422/485 port, one isolated LAN and one isolated DIO (2-in/2-out). The four analog input channels have differential input configuration and overvoltage protection of 55V DC. The maximum sampling rate of IRU152 is up to 250 kS/s with a 16-bit resolution for low-speed high-resolution sensor monitoring and signal measurements. Apart from the abovementioned features, the IRU152 comes in two PCI Express Mini Card slots and one SIM card slot for Wi-Fi, 3G/4G and LoRa connections. The DIN-rail embedded system is equipped with onboard 512MB DDR3 SDRAM; besides, they have an 8GB eMMC flash memory. The extremely low power industrial IoT gateway has passed the Heavy Industrial certification and FCC part 15 to ensure the excellent quality and highly reliable performance.

Request For Quotation


    • NXP i.MX 6 UL processor, ARM® Cortex®-A7 @ 528 MHz
    • SoC integrated
    System Memory
    • 1 x DDR3-1600 onboard, 512 MB
    • 1 x RS-232/422/485 with isolation 2KV
    • 1 x USB 2.0 (Type A)
    • 1 x 10/100 Mbps with isolation 1.5KV
    • N/A
    • N/A
    Digital I/O
    • 1 x DIO (2-in/1-out) with Isolation 2KV
    Analog Input
    • 4 x AI (isolation)
    • Input type differential
    • Input range: (software programmable)
    • Unipolar: 0 to 10V, 0 to 5V
    • Bipolar: ±10V, ±5V
    • Resolution:16-bit
    • Sampling rate: 10 S/s to 250 kS/s
    • FIFO buffer size: 2,048 samples
    • Overvoltage protection: ±55V
    • Trigger source: Analog or digital
    • (software selectable
    • N/A
    • 2 x PCI Express Mini Card slot (only USB signal)
    • 1 x SIM Card socket
    • 1 x eMMC 8GB flash onboard
    • 1 x EEPPROM (2 Kb)

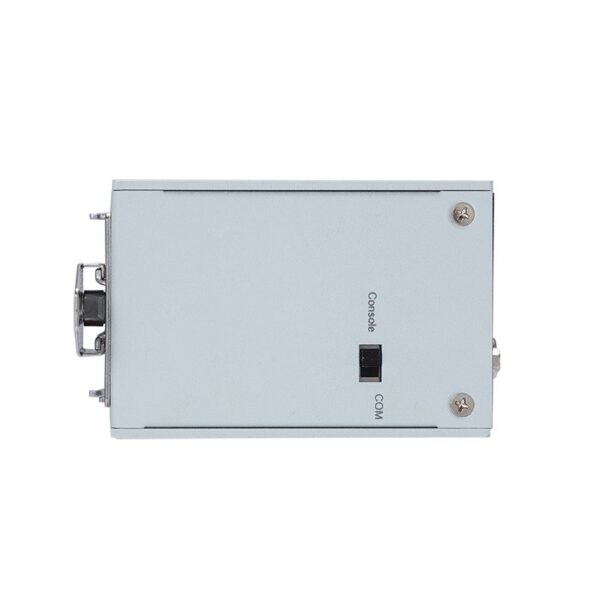

    • Console/COM switch
    • Device ID setting 0 ~ 255
    Power Supply
    • 9 – 48 VDC power input range
    Watchdog Timer
    • 0.5 to 128 sec. with a time resolution of 0.5 sec.
    • Extruded aluminum and heavy-duty steel, IP40
    Operating Temperature
    • -40°C ~ +70°C (-40°F ~ +158°F)
    Relative Humidity
    • 10% ~ 95%
    • 2 Gms @ (10 ~ 150Hz sine wave; operation)
    Dimensions (W x D x H)
    • 55 x 82 x 108 mm (2.16″ x 3.23″ x 4.25″)
    Weight (net/gross)
    • 0.32 kg (0.71 lb)/0.53 kg (1.17 lb)
    • FCC Part 15
    • Heavy Industrial CE
    EOS Support
    • OS: Yocto 1.8.1 (Fido)
    • Kernel: 3.14.52

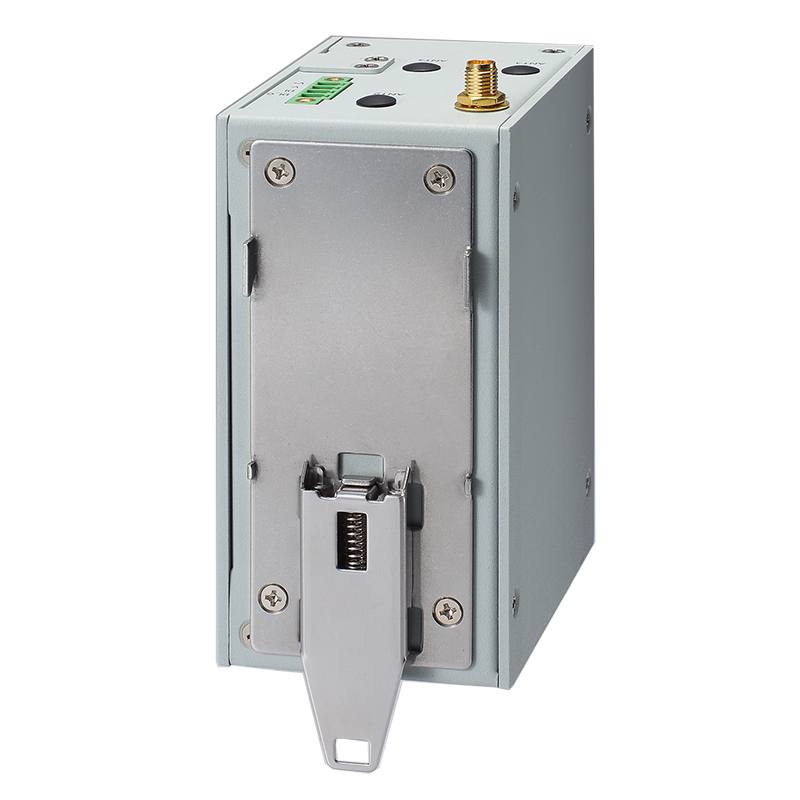

    • DIN-rail

    Ordering Information

    IRU152-FL-DC (P/N-E271152100)

    Robust DIN-rail fanless embedded system with i.MX 6UL processor, COM, LAN, DIO (2-in/2-out), 4 AI (16-bit, 250 kS/s) and 2 PCIe Mini Card slot

    Wireless (3G/GPS or Wi-Fi) module
