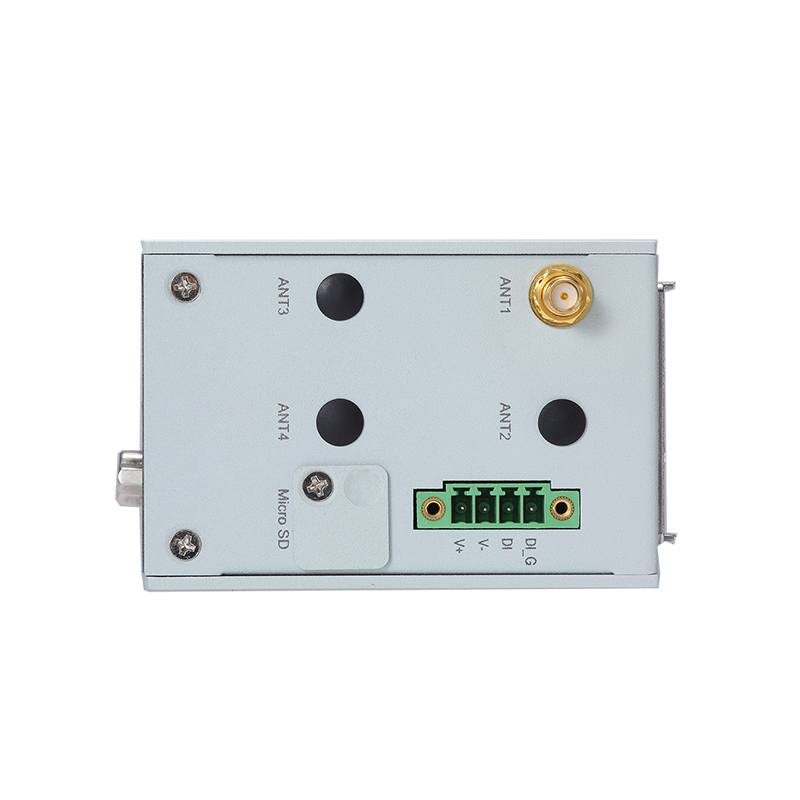

IRU151

RISC-based DIN-rail Fanless Embedded System with i.MX 6UL Processor, COM, LAN, DIO (2-in/2-out), 4 AI Channels (16-bit, 100 S/s) and 2 PCIe Mini Card Slots

Features

  • RISC-based (i.MX 6UltraLite) processor 528 MHz
  • 512MB DDR3 SDRAM onboard
  • 8GB eMMC flash onboard
  • 2 PCI Express Mini Card slots (Wi-Fi, 3G/4G or LoRa)
  • 4 isolated analog input channels (16-bit, 100 S/s)
  • 1 isolated COM port
  • 1 isolated DIO (2-in/2-out)
  • Embedded Linux operating system (Yocto)
  • Wide operating temperature range from -40°C to +70°C
  • Supports LabVIEW versions later than 2016
  • Supports OPC UA

Introduction

The IRU151 is powered by the low-power NXP i.MX 6 UltraLite processer. They can withstand an extended operating temperature range of -40°C to +70°C and up to 2G of vibration for operating in harsh environments. Furthermore, it supports NI LabVIEW to allow users to design graphical user interfaces for their measurement applications quickly and efficiently. In order to provide data collection and device control, the IRU151 comes with various I/O connectors, including four analog input (AI) channels, one isolated RS-232/422/485 port, one isolated LAN and one isolated DIO (2-in/2-out). The four analog input channels have differential input configuration and overvoltage protection of 55V DC. The IRU151 is capable of reading analog voltages at 100 samples per second with a 16-bit resolution.

Request For Quotation

    Category:

    Description

    CPU
    • NXP i.MX 6UL processor, ARM® Cortex®-A7 @ 528 MHz
    Chipset
    • SoC integrated
    System Memory
    • 512 MB DDR3-1600 onboard
    COM
    • 1 x RS-232/422/485 with isolation 2KV
    USB
    • 1 x USB 2.0 (Type A)
    Ethernet
    • 1 x 10/100 Mbps with isolation 1.5KV
    PoE
    • N/A
    CANbus
    • N/A
    Digital I/O
    • 1 x DIO (2-in/2-out) with Isolation 2KV
    Analog Input
    • 4 x AI (Isolation)
    • channels: 4
    • Input type differential
    • Input range: (software probrammable)
    • Bipolan : ±5V, ±10V
    • Resolution:16-bit
    • Sampling rate : 100 S/s
    • Overvoltage protection : ±55V
    • Trigger source : analog or digital (software selectable)
    Display
    • N/A
    Wireless
    • 2 x PCI Express Mini Card slot (USB signal only)
    • 1 x SIM card socket
    Storage
    • 1 x eMMC 8GB flash onboard
    Others
    • 1 x EEPPROM (2 Kb)

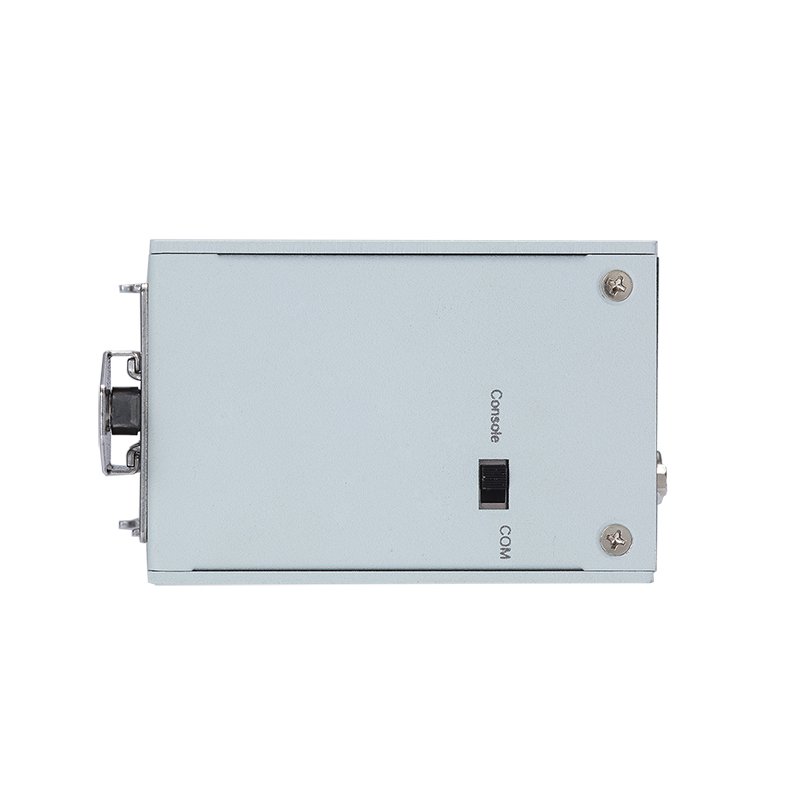

    • Console/COM switch
    • Device ID setting 0 ~ 255
    Power Supply
    • 9 to 48 VDC
    Watchdog Timer
    • 0.5 to 128 sec. with a time resolution of 0.5 sec.
    Construction
    • Extruded aluminum and heavy-duty steel, IP40
    Operating Temperature
    • -40°C to +70°C (-40°F to +158°F)
    Relative Humidity
    • 10% to 95%
    Vibration
    • 2 Gms @ (10 to 150Hz sine wave; operation)
    Dimensions (W x D x H)
    • 55 x 82 x 108 mm (2.16″ x 3.23″ x 4.25″)
    Weight (net/gross)
    • 0.32 kg (0.71 lb)/0.53 kg (1.17 lb)
    Certifications
    • FCC Part 15
    • Heavy Industrial CE
    EOS Support
    • Linux Kernel 3.14.52
    • Yocto FIDO 1.8

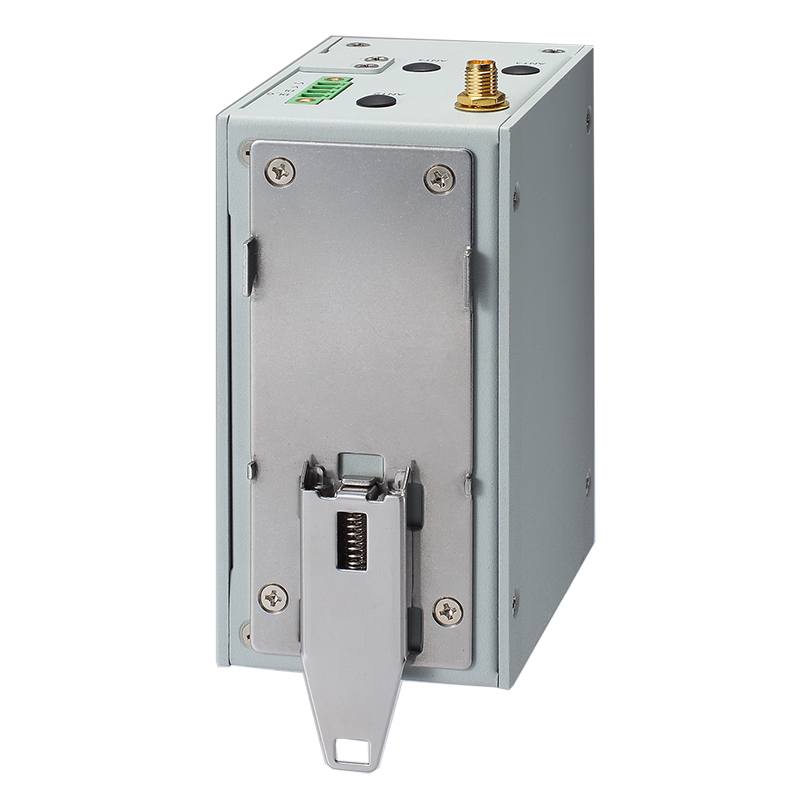

    Mounting
    • DIN-rail

    Ordering Information

    IRU151-FL-DC (P/N-E271151100)

    Robust DIN-rail fanless embedded system with i.MX 6UL processor, COM, LAN, DIO (2-in/2-out), 4 AI (16-bit,100 S/s) and 2 PCIe Mini Card Slots (-40°C ~ +70°C)

    Wireless (3G/GPS or Wi-Fi) module
