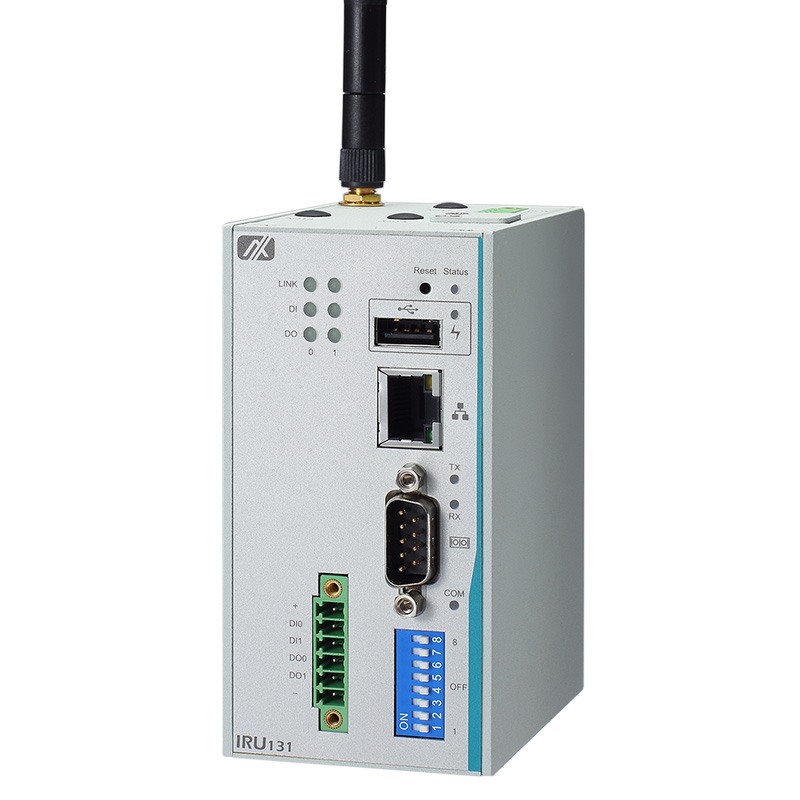

RISC-based DIN-rail Fanless Embedded System with i.MX 6UL Processor, COM, LAN, DIO (2-in/2-out) and 2 PCIe Mini Card Slots

Features

• RISC-based (i.MX 6UltraLite) processor 528 MHz
• 512MB DDR3 SDRAM onboard
• 8GB eMMC flash onboard
• 2 PCI Express Mini Card slots (Wi-Fi, 3G/4G or LoRa)
• 1 isolated COM port
• 1 isolated DIO (2-in/2-out)
• Power input range of 9V to 48V DC with terminal block
• Embedded Linux operating system (Yocto)
• Wide operating temperature range from -40°C to +70°C
• Supports OPC UA

Introduction

The IRU131 utilizes the low-power NXP i.MX6UL Cortex-A7 528MHz processor; furthermore, it supports NI LabVIEW to allow users to design graphical user interfaces for their measurement applications quickly and efficiently. With a very small profile and easy access design, the IRU131 can be integrated into a variety of different locations where you need it. Additionally, this IoT device has an industrial grade IP40 rating and has passed heavy industrial CE and FCC testing. The IRU131 can withstand harsh operating conditions with a wide operating temperature range of -40°C to +70°C and vibration resistance up to 2G. Its wide voltage range of 9V to 48V DC power input with terminal block-type connector makes it suitable for use in harsh environments.
