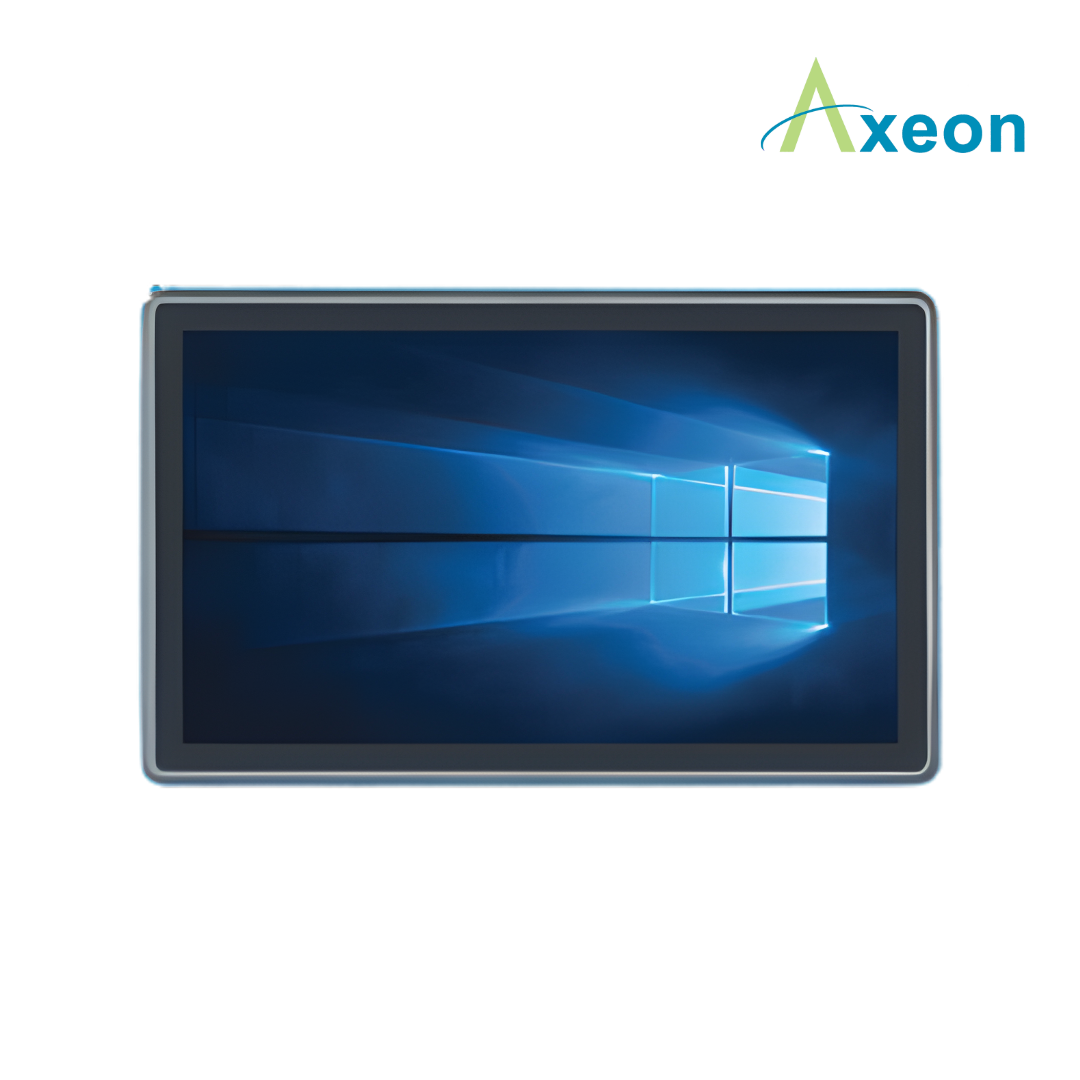

AXPPC-A215C Industrial Fanless Resistive Touch panel PC
Features
- All-aluminum 21.5 inch industrial LCD screen;
- All in one Touch PC;
- Intel Core i3-10110U / Core i5-8260U or i7-8565U optional;
- Using high-definition industrial LCD screen;
- Touch Resistive five-wire touch screen;
- Support 1*VGA, 1*HDMI, 1*LVDS;
- Support 1*Mini PCIe slot (WIFI/Bluetooth/3G/4G, Optional) 1*SIM slot;
- Support Desktop, Embedded, Wall Mount, VESA.
To request a quote for the item. please indicate the item in the subject and type in the configuration you need.
Description
Model : AXPPC-A215C
Chassis color : Gray (can be customized)
Material : Aluminum alloy
Processor :
Intel Core i3-10110U (2 Cores 2 Threads, 1.8GHz);
8th Gen Intel Core i5-8260U (4 Cores / 8 Threads, 1.6GHz, Max turbo 3.9GHz)
8th Gen Intel Core i7-8565U (4 Cores / 8 Threads, 1.8GHz, Max turbo 4.6GHz)
RAM : 1*DDR4 2400/2666 SODIMM memory slot, Max. 32GB
BIOS : AMI EFI BIOS
Display chip : Intel UHD Graphics
Display port : 1*HDMI, 1*LVDS (Synchronous or asynchronous display)
Storage : 1*M.2 2280 slot (SATA signal), 1*2.5 inch SSD/HDD
Expansion slot : *Mini PCIe slot (support WIFI/BT/3G/4G with SIM card slot)
I/O :
1*HDMI, 2*COM (COM1&2 support RS232/422/485, 6*COM optional),
1*Power button,
1*2 Pin Supply Phoenix terminal,1*Audio & Speaker, 4*USB3.0, 2*Intel 1000M LAN (4*LAN optional)
Other Function :
TPM2.0 secure encryption, Auto power-on, Timing boot, Wake on LAN, PXE boot, Watchdog (0 ～ 255 level)
Expansion function :
(Standard doesn’t include) : GPIO (8 in & 8 out), 2*LAN ports,
4*COM, 2*USB2.0
LCD :
Screen size : 21.5inch TFT-LCD; Screen Brightness : 250 cd/m2; Visual Angle : Full angle Screen scale : 16 : 9; Resolution : 1920 * 1080
Touch screen :
Resistive high-sensitivity touch screen with lifespan more than 50 million times;
(Capacitive touch screen is optional)
Speaker : Two 8-ohm 2-watt speaker
Input voltage : DC 9～36V wide-voltage, Support positive and negative electrode protection
Working Temp : 0℃ ～ +50℃ (HDD), -20℃～ +60℃ (SSD), Surface air flow
Working Humidity : 5% ～ 95% (Non-condensing state)
Dimensions : 540 * 332 * 60 mm
Embedded Dimensions : 528 * 320 mm
Weight : 6.8 kg (AXPPC-A215C)
Application : Industrial Automation, Medical, Logistics, Transportation, Warehousing, Machine Vision, etc.
