Features
- All aluminum alloy structure, fanless design
- Intel Celeron / Core series processor
- 2*RS232/485 COM ports
- 2*Realtek Gigabit network ports
- Full flat front panel, IP65 protection
- Compatible with Windows 7, 10, 11 & Linux OS
- Full flat front panel, IP65 level protection
Description
| Model | AXPPC-170C |
| Processor | Intel Celeron J1900 (4 Cores / 4 Threads, 2 GHz) 3/4/5th Gen Intel Core i3 or i5 6/7/8th Gen Intel Core processors |
| Memory | Support DDR3L / DDR4 SODIMM memory slots, Max. 32GB |
| BIOS | AMI BIOS |
| Display Chip | Intel UHD Graphics |
| Display Port | 1*HDMI, 1*LVDS (LVDS connected to LCD screen, dual display) |
| Storage | 1*mSATA HDD / SSD |
| Expansion Slot | 2*Mini PCIE slots (support WIFI/BT/3G/4G) 1*SIM card holder slot |

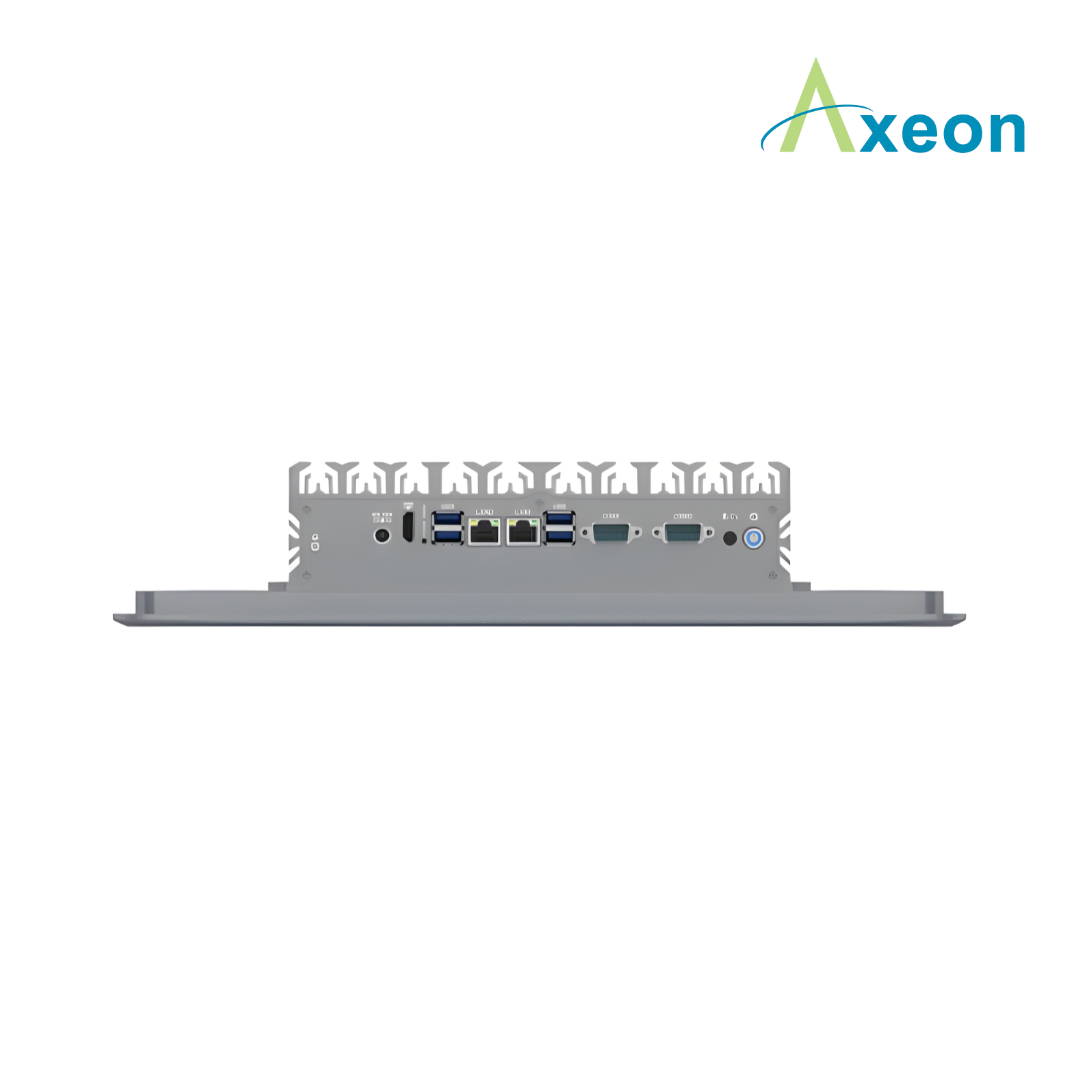

| I/O | 1*HDMI, 2*COM (RS232/485), Optional 6*COM, 1*Power Button, 1*DC, 1*Audio (2 in 1), 4*USB3.0 2*Realtek Gigabit LAN ports (support wake up / PXE) |
| Other Functions | Auto power on, Timer on, Watchdog (0~255 level) |
| Expansion options | Standard shipment doesn’t include GPIO (4 ch), 4*COM, 2*USB) |
| LCD | Size: 17 inch TFT-LCD; Brightness: 250 cd/m2; Viewing Angle: Full view; Ratio: 5:4; Resolution: 1280 * 1024 |
| Touch Screen | Resistive touch (Optional capacitive), Lifetime up to 50 million times |
| Speaker | 2*8-ohm 2-watt speakers |
| Input Voltage | DC 12V input, optional DC 9-36V wide voltage input |
| Application | Industrial Automation, Medical, Logistics Transportation, Warehousing, Machine Vision and other fields |
| Structure Parameter | |
| Color | Gray (color customizable) |
| Material | Aluminum alloy shell |
| Dimension | 408.5 * 346 * 78 mm |
| Weight | 5.5 kg |
| Environmental Parameter | |
| Work Temp | 0℃ ～ +50℃ (SSD), Surface air flow |
| Work Humidity | 5% ～ 95% non-condensable state |
