Features
- Ultra-Slim and Ultra quiet
- Intel 12/13th Gen processors or (ULTRA 5 / ULTRA 7)
- DDR5 SO-DMIMM x2, Max support 64GB
- Realtek 8111H Dual Gigabit Ethernet LAN
- Support NVMe Dual Hard Drives
- HDMI + DP + USB Type C Triple Display
Description
| Model | AXBOX-PC225 |
| Processor | Onboard Intel Core 12th/13th Gen – P/U Series processors Onboard Intel Core Ultra 5 or Ultra 7 processors |
| Memory | Support DDR5 SO-DIMM*2, Max support. 64GB |
| BIOS | AMI EFI BIOS |
| Display Chip | Intel(R) UHD Graphics |
| Display Port | 1*HDMI 2.0, 1*DP1.4, 1*USB Type C display support |
| Storage | 2* M.2 NVMe (SSD 1 supports M.2 SATA) |
| Expansion Slot | Support 1*M.2 Wifi (Support WIFI 6, Bluetooth 5.1) |

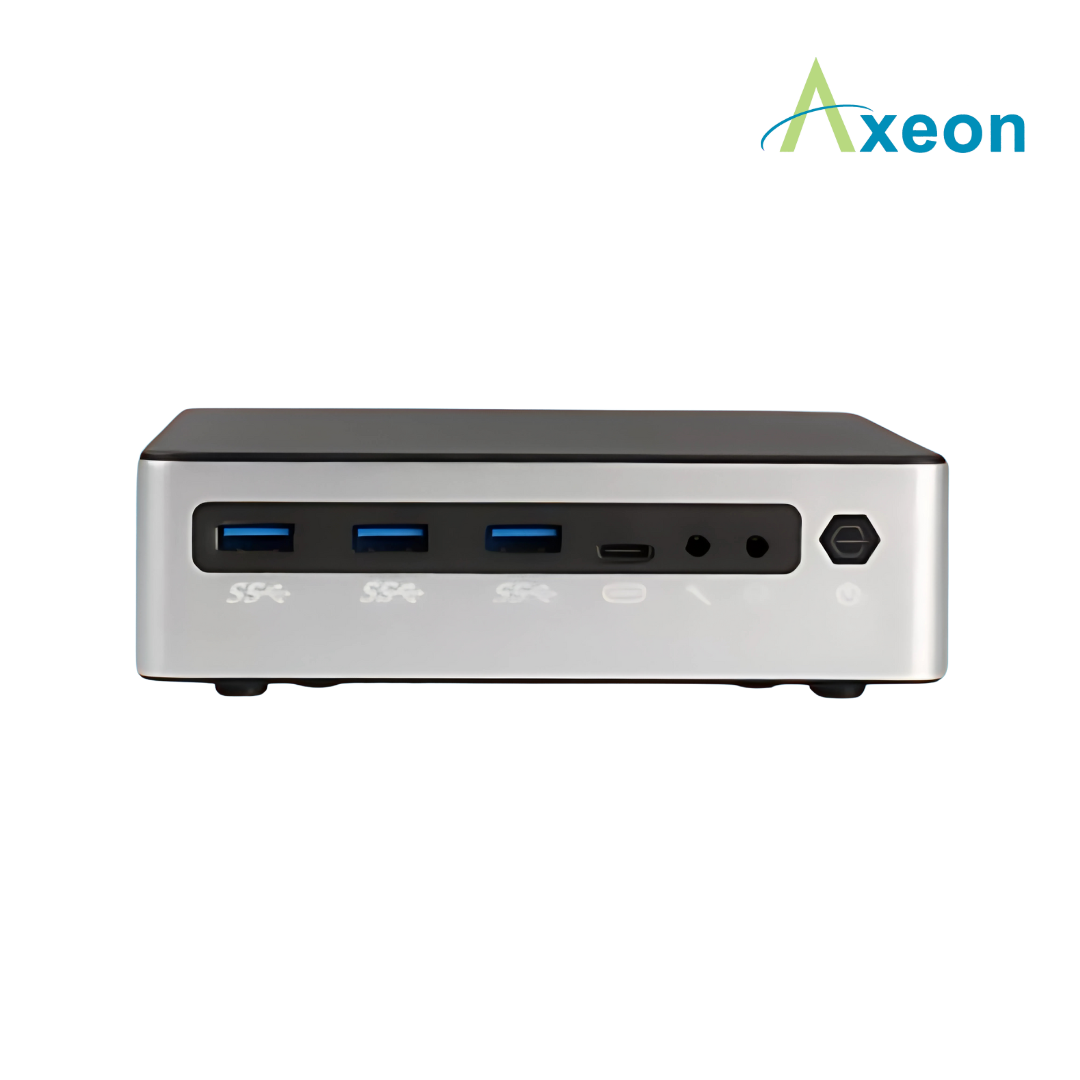

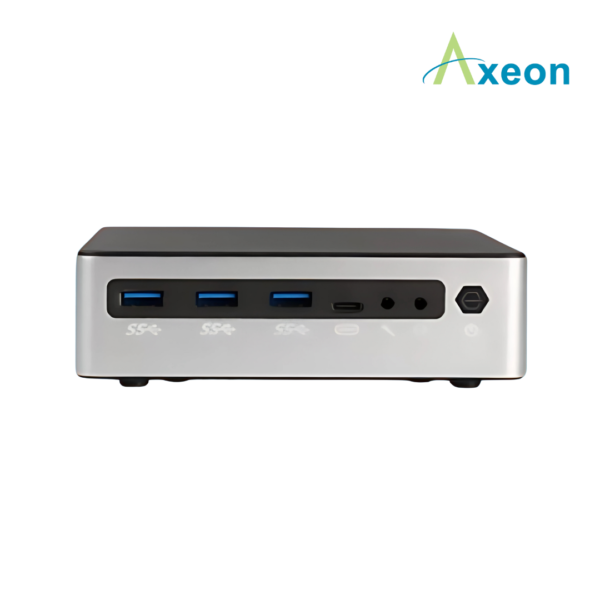

| I/O | Front I/O: 3*USB3.2 Gen 2, 1*USB Type C, Locker, DC audio jack input, power button

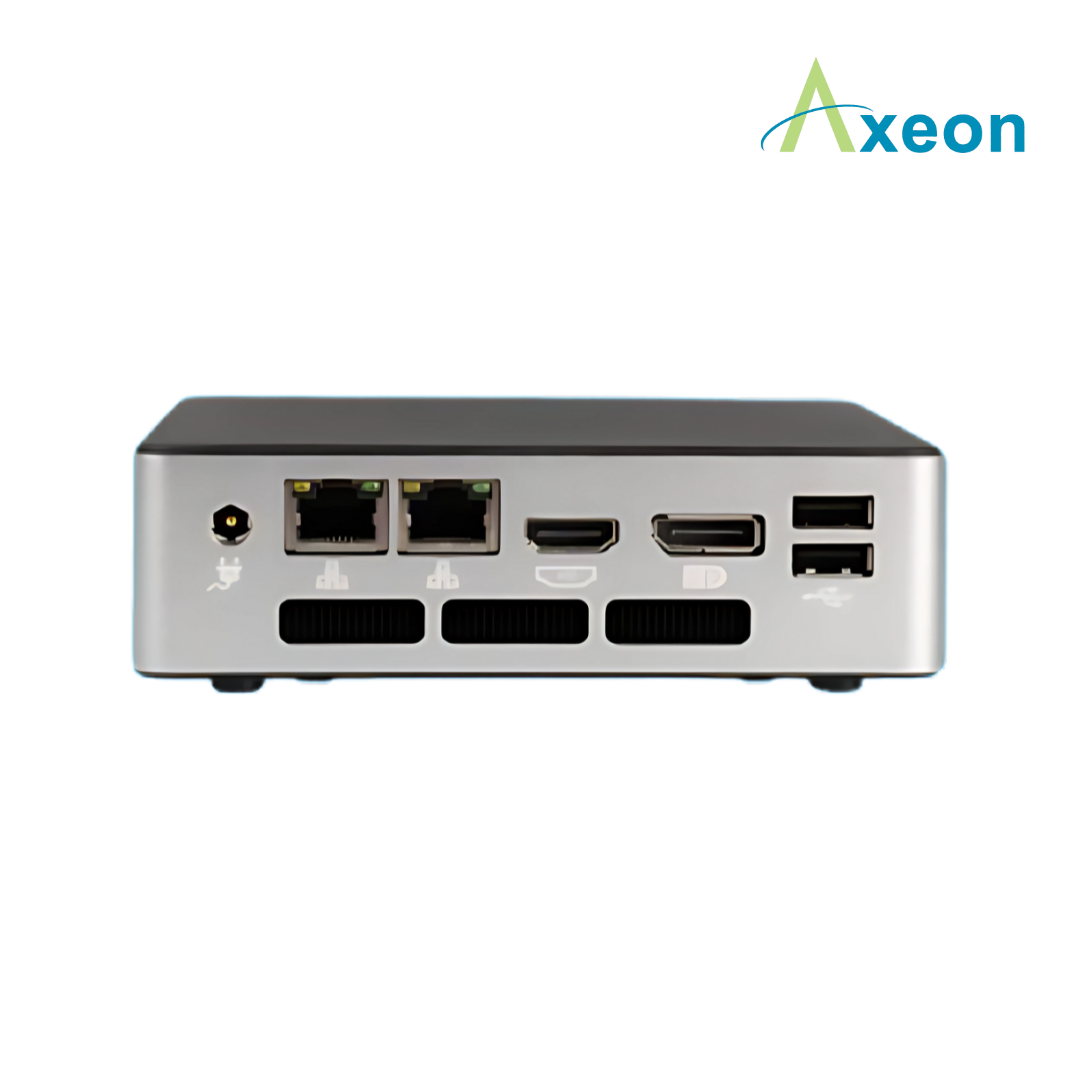

Rear I/O: 2*LAN, 1*HDMI, 1*DP, 2*USB2.0, 1*DC |
| Other Function | Power-on, timed startup, network wake up, PXE startup, Watchdog (level 0-255), TPM2.0 security encryption) |
| Network | 2*GbE RJ45 Realtek 8111H Gigabit LAN) |
| Input Voltage | Support DC 12V input |
| Certificates | CE, CCC, FCC Class A, RoHS |
| Application | Industrial Control, Industrial Automation, Robot, IoT gateway, Edge computing, Machine Vision, AGV/ARM, etc. |
| Structure Parameter | |
| Color | Metallic silver |
| Material | Metal + ABC plastic with Fan design |
| Dimension | 135 * 125 * 40 mm |
| Weight | 1.2 kg |
| Environmental Parameter | |
| Work Temp | -20℃ ～ +60℃ (Industrial SSD), Surface air flow |
| Work Humidity | 5% ～ 95% Non-condensing state |
