Features
- All aluminum structure, fanless design;
- Intel 10th Core i3-10110U, i5-10310U;
- Support TPM2.0, support Windows 11;
- Support 1*M.2 2280 slot, 1*2.5”HDD;
- Support 2*COM (2*COM RS232/485 is optional);
- Support DC 12V input
Description

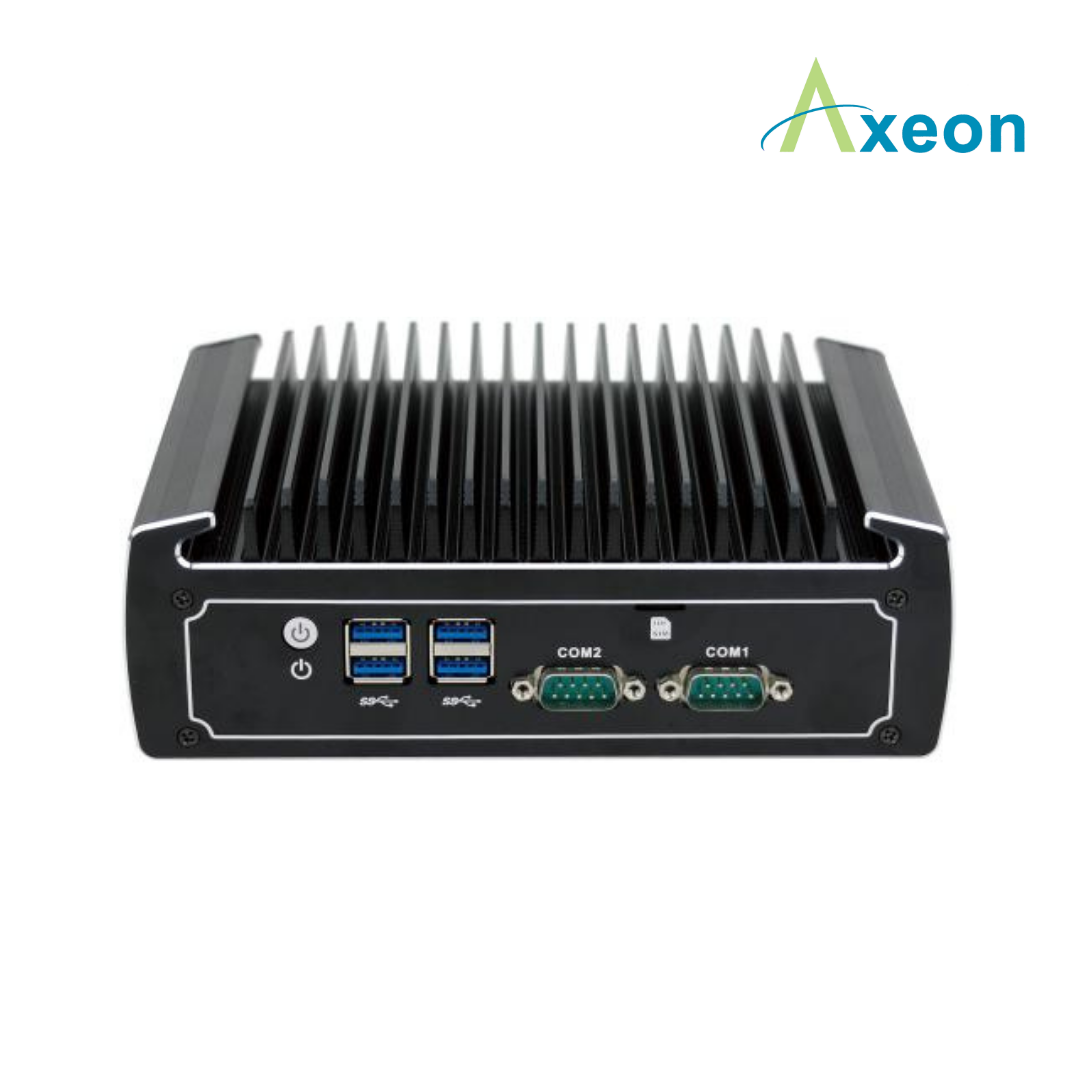

| Model | AXBOX-M022 |
| Processor | Intel Core i3-10110U (2 Cores 4 Threads, 2.1 GHz, Max turbo 4.1 GHz) Intel Core i5-10210U (4 Cores 8 Threads, 1.6 GHz, Max turbo 4.2 GHz) |
| Memory | 1*DDR4 2666/2933 SODIMM memory slot, Max. 32GB |
| BIOS | AMI EFI BIOS |
| Display Chip | Intel UHD Graphics |
| Display Port | 1*DP, 1*HDMI with 4K support, (Synchronous or asynchronous display) Max. 4096×2160@60Hz |
| Storage | 1*M.2 2280 M-Key slot (NVMe), 1*2.5 inch HDD (RAID 0/1) |
| Expansion | 1*M.2 2280 M-Key slot (M.2 PCIe x4 NVMe/M.2 SATA SSD);
1*Mini-PCIe slot (support WIFI,3G,4G); 1*Embedded SIM slot |
| I/O | 2*COM port (RS232/485 optional), 4*USB3.0, 1*Power switch, 1*SIM slot1*DC 12V, 2*USB2.0, 1*HDMI, 1*DP, 2*Intel 1000M LAN 1*Audio (Support Mic and Speaker) |
| Network | 2*Intel i211-AT 10/100/1000M LAN |
| Input Voltage | DC 12V |
| Other Function | TPM2.0, Auto power on, Wake on LAN, PXE boot, Watchdog (level 0-255) |
| Application | Business Office, HD Video Playback, e-Education, Industrial Automation, etc. |
| Structure Parameter | |
| Color | Black (Color can be customized) |
| Material | High quality all aluminium |
| Dimension | 186 * 126.5 * 66 mm |
| Weight | 1.3 kg |
| Environmental Parameter | |
| Work Temp | 0℃ ～ +40℃ (HDD), -20℃ ～ +50℃ (Industrial SSD), Surface air flow |
| Work Humidity | 5% ～ 95% non-condensing |
