Features
- Intel 10th gen Comet Lake Core i3/i5 processor

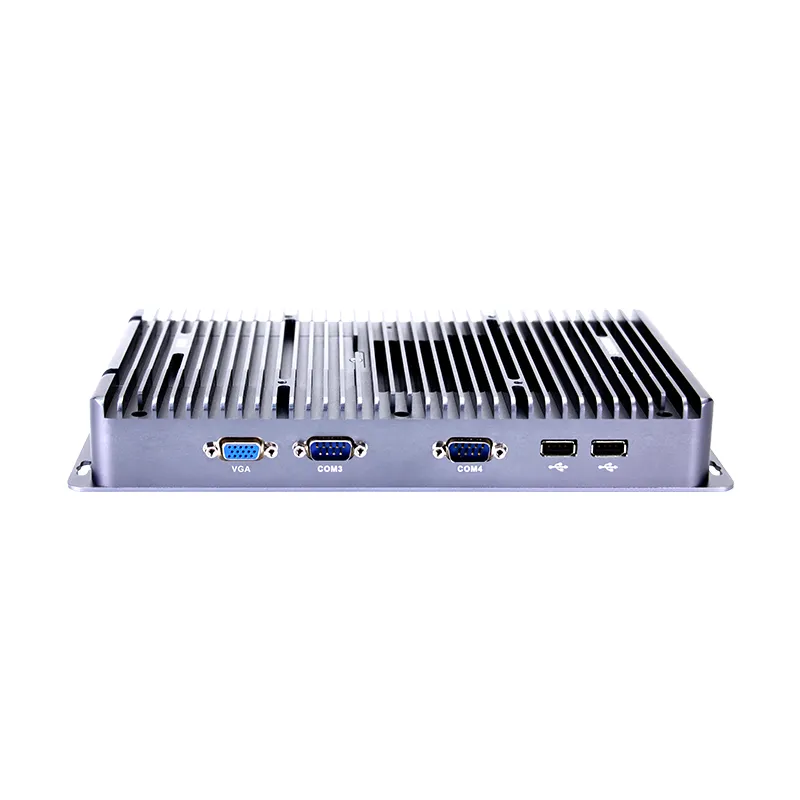

- Slim Fanless Industrial PC
- Adopt Intel Core i3-10110U and Core i5-10310U
- With Intel UHD Graphics
- DC 9～36V wide voltage input
- 2*LAN ports and enhanced USB & Serial COM ports
Description
| Model | AXBOX-346-I |
| Processor | Intel Core i3-10110U (2 Cores 4 Threads, 2.1GHz) Intel Core i5-10310U (4 Cores 8 Threads, 2.2GHz, Max turbo 4.4GHz) |
| Memory | 1*DDR4 2666/3200 SODIMM Memory slot, Max. 32GB |
| BIOS | AMI EFI BIOS |
| Display Chip | Intel UHD Graphics |
| Display port | 1*HDMI, 1*VGA (Support synchronous or asynchronous dual display) |
| Storage | 1*M.2 2280 slot, 1*2.5” HDD |
| Expansion | 1*M.2 M-Key 2280 slot (SATA protocol);
1*Mini PCIe slot (WIFI/3G/4G optional), 1*embedded SIM slot 1* M.2 E-Key 2230 slot (WIFI/Bluetooth） |
| Other Function | Auto power on, Timing boot, Wake on LAN, PXE boot, Watchdog: (0～255 level) |
| I/O | 1*Power Switch, 2*Intel 1000 LAN, 4*USB3.0, 5*USB 2.0, 1*HDMI, 1*VGA, 1*Audio, 3*RS232 COM (COM1 RS232/422/485 optional), 1*DC, 1*3 pin power supply phoenix connector |
| Network | 2*Intel i211-AT 10/100/1000M LAN |
| Power Supply | DC 9V ～ 36V wide voltage input |
| Certificates | CE, CCC, FCC Class A, ROHS |
| Application | Industrial Automation, Medical, Logistics, Transportation, Warehousing, Machine Vision, etc. |
| Structure Parameter | |
| Color | Silver / Black (Color can be customized) |
| Material | Aluminum alloy chassis |
| Size | 280 * 143 * 40 mm |
| Weight | 1.5 Kg |
