Features
- ◆ Intel 11th gen Tiger Lake Core i3/i5/i7processor Fanless Industrial PC◆ Adopt Intel Celeron 6305E, Core i5-1135G7, Core i7-1165G7 Processor◆ Intel Iris(R)Xe Graphics Core graphics card◆ DC 9～36V wide voltage Inpu.◆ Two lans port:1* Intel i211-AT,1* i219-LM 10/100/1000M LAN.
Description
| Model | AXBOX-3026-I |
| Processor | Intel Celeron 6305E (2 Cores 2 Threads, 1.8GHz) Intel Core i5-1135G7 (4 Cores 8 Threads, 2.4GHz, Max turbo 4.2GHz) Intel Core i7-1165G7 (4 Cores 8 Threads, 2.8GHz, Max turbo 4.7GHz) |
| Memory | 1*DDR4 2666/3200 SODIMM Memory slot, Max. 32GB |
| BIOS | AMI EFI BIOS |
| Display Chip | Intel Iris Xe Graphics |
| Display port | 1*HDMI, 1*VGA (Support synchronous or asynchronous dual display) |
| Storage | 1*M.2 2280 slot, 1*2.5” HDD |
| Expansion | 1*M.2 M-Key 2280 slot (SATA protocol);
1*Mini PCIe slot (WIFI/3G/4G Optional, 1*embedded SIM slot 1* M.2 E-Key 2230 slot (WIFI/Bluetooth) |
| Expansion Function | (Standard doesn’t include): GPIO (8 Input 8 Output), 1*USB2.0 |
| Other Function | Auto power on, Timing boot, Wake on LAN, PXE boot, Watchdog: (0 ～ 255 level) |

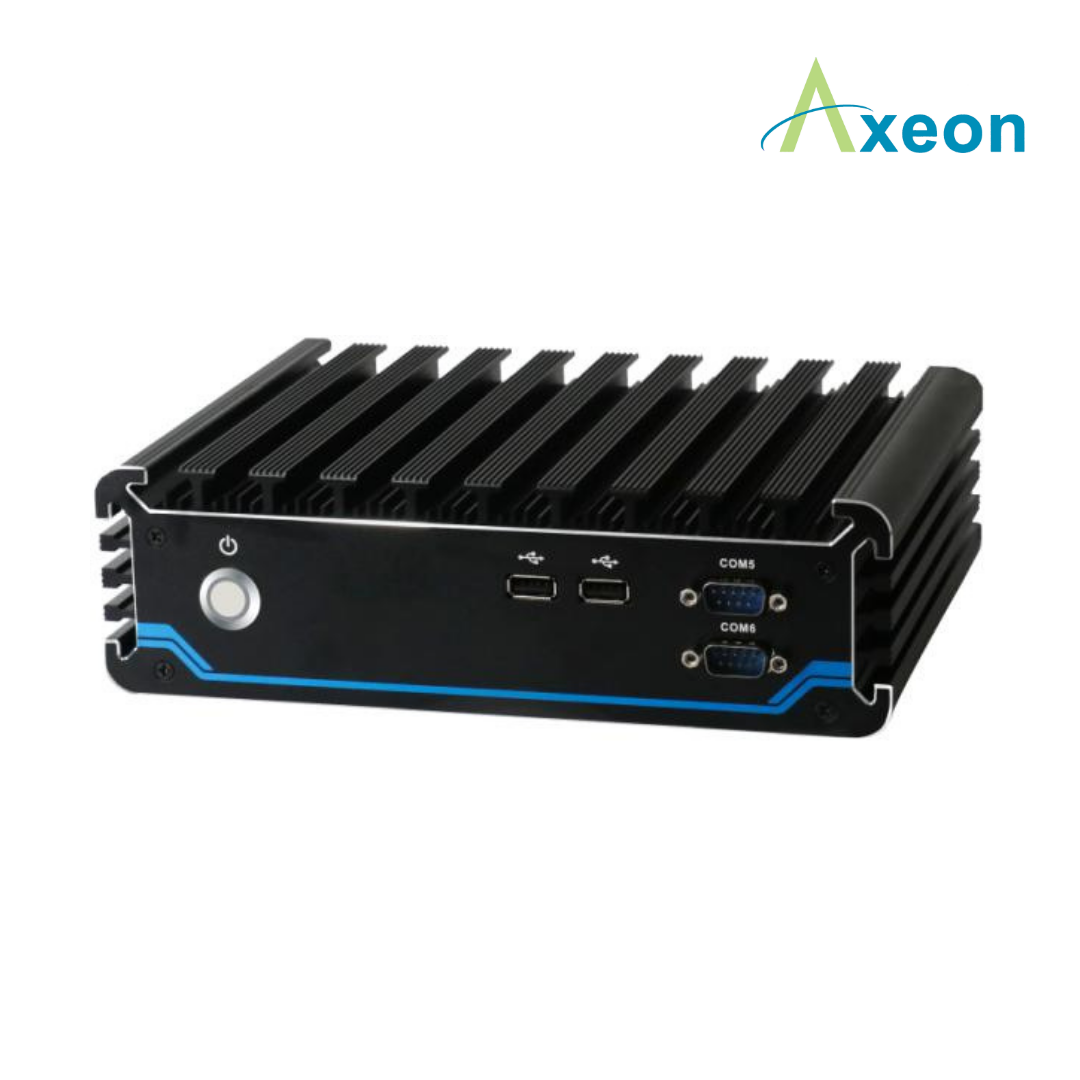

| I/O | 2*USB2.0, 2*COM (COM5 RS232, COM6 RS485), 1*Power Switch; |

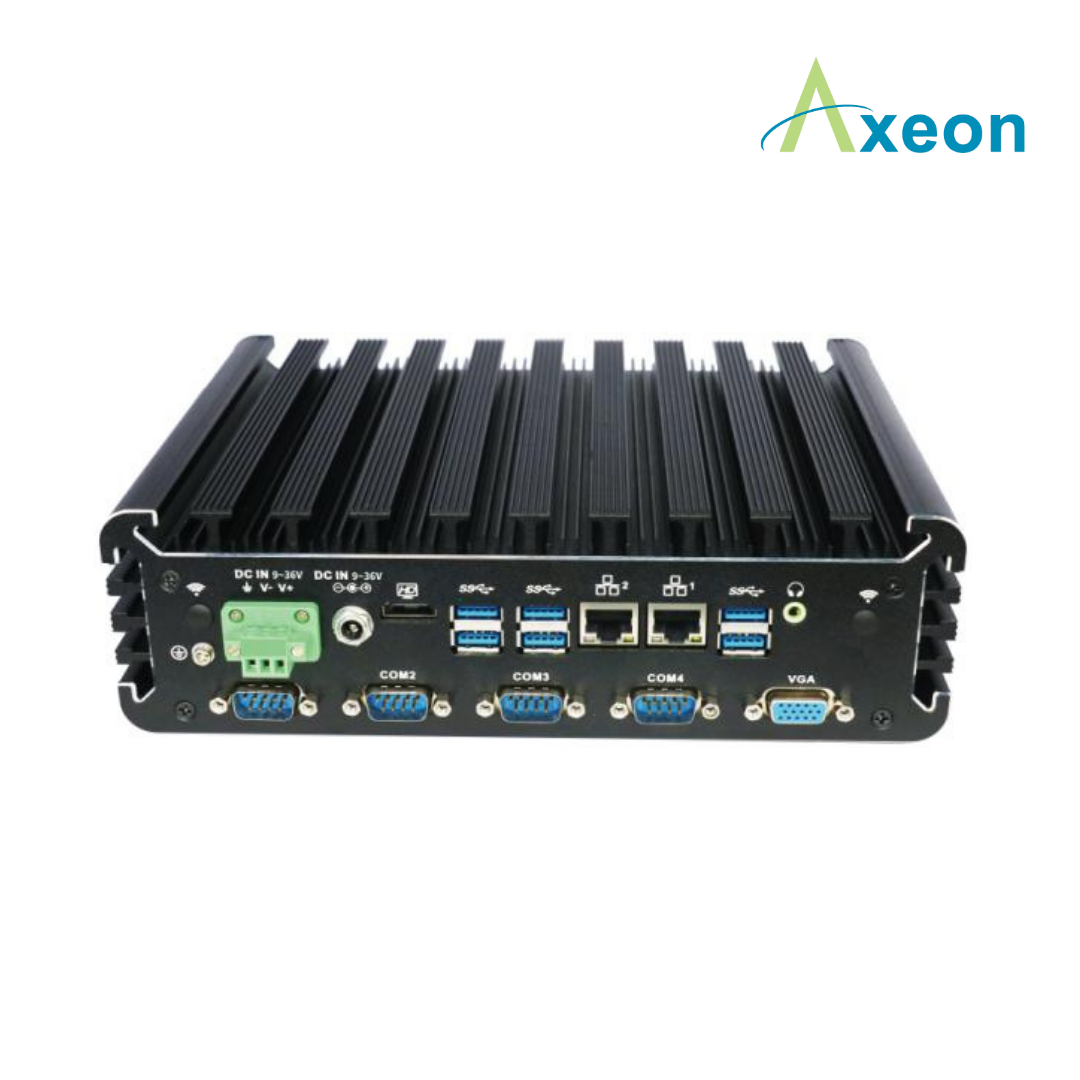

| 2*Intel 1000 LAN, 6*USB3.0, 1*HDMI, 1*VGA, 1*Audio, 4*RS232 COM (COM1 RS232/422/485 optional), 1*DC, 1*3 pin power supply phoenix connector, |
|
| Network | 1*Intel i211-AT, 1*i219-LM 10/100/1000M LAN |
| Power Supply | DC 9V ～ 36V wide voltage input |
| Certificates | CE, CCC, FCC Class A, RoHS |
| Application | Industrial Automation, Medical, Logistics, Transportation, Warehousing, Machine Vision, etc. |
| Structure Parameter | |
| Color | Black (Color can be customized) |
| Material | Aluminum alloy chassis |
| Size | 230 * 166 * 68 mm |
| Weight | 2.2 Kg |
