IRU151-I

Robust RISC-based DIN-rail Fanless Embedded System with i.MX 6UL Processor, DIO (2-in/2-out), 4 AI Channels (16-bit, 100 S/s, ±20mA) and 2 PCIe Mini Card Slots

Features

  • RISC-based (i.MX 6UltraLite) processor 528 MHz
  • 512MB DDR3 SDRAM onboard
  • 8GB eMMC flash onboard
  • 2 PCI Express Mini Card slots (Wi-Fi, 3G/4G or LoRa)
  • 4 isolated analog input channels (16-bit, 100 S/s, ±20mA )
  • 1 isolated COM port
  • 1 isolated DIO (2-in/2-out)
  • Embedded Linux operating system (Yocto)
  • Wide operating temperature range from -40°C to +70°C
  • Supports LabVIEW versions later than 2016
  • Supports OPC UA

Request For Quotation

    Category:

    Description

    CPU
    • NXP i.MX 6UL processor, ARM® Cortex®-A7 @ 528 MHz
    Chipset
    • SoC integrated
    System Memory
    • 1 x DDR3-1600 onboard, 512 MB
    COM
    • 1 x RS-232/422/485
    • Magnetic isolation protection 2KV
    USB
    • 1 x USB 2.0 (type A)
    Ethernet
    • 1 x 10/100 Mbps
    • Magnetic isolation protection 1.5KV
    PoE
    • N/A
    CANbus
    • N/A
    Digital I/O
    • 1 x DIO (2-in/2-out) with isolation 2KV
    Analog Input
    • 4 x AI (isolation)
    • Channels: 4 (differential)
    • Input impedance: 249Ω
    • Input range: ±20mA
    • Resolution:16-bit
    • Sampling rate : 100 S/s
    • Over voltage protection : ±55V
    • Trigger source : analog or digital (software selectable)
    Display
    • N/A
    Wireless
    • 2 x PCI Express Mini Card slot (only USB signal)
    • 1 x SIM card socket
    Storage
    • 1 x eMMC 8GB flash onboard
    Others
    • 1 x EEPPROM (2 Kb)

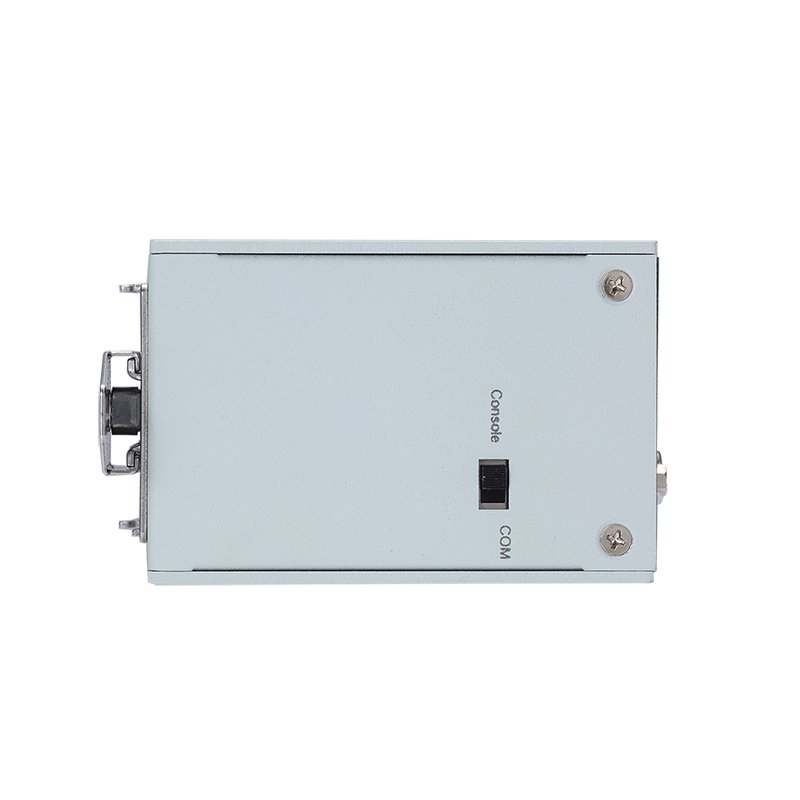

    • Console/COM switch
    • Device ID setting 0 ~ 255
    Power Supply
    • 9 to 48 VDC
    Watchdog Timer
    • 0.5 to 128 sec. with a time resolution of 0.5 sec.
    Construction
    • Extruded aluminum and heavy-duty steel, IP40
    Operating Temperature
    • -40°C to +70°C (-40°F to +158°F)
    Relative Humidity
    • 10% to 95%
    Vibration
    • 2 Gms @ (10 to 150Hz sine wave; operation)
    Dimensions (W x D x H)
    • 55 x 82 x 108 mm (2.16″ x 3.23″ x 4.25″)
    Weight (net/gross)
    • 0.32 kg (0.71 lb)/0.53 kg (1.17 lb)
    Certifications
    • FCC part 15, Heavy Industrial CE
    EOS Support
    • Linux Kernel 3.14.52
    • Yocto FIDO 1.8

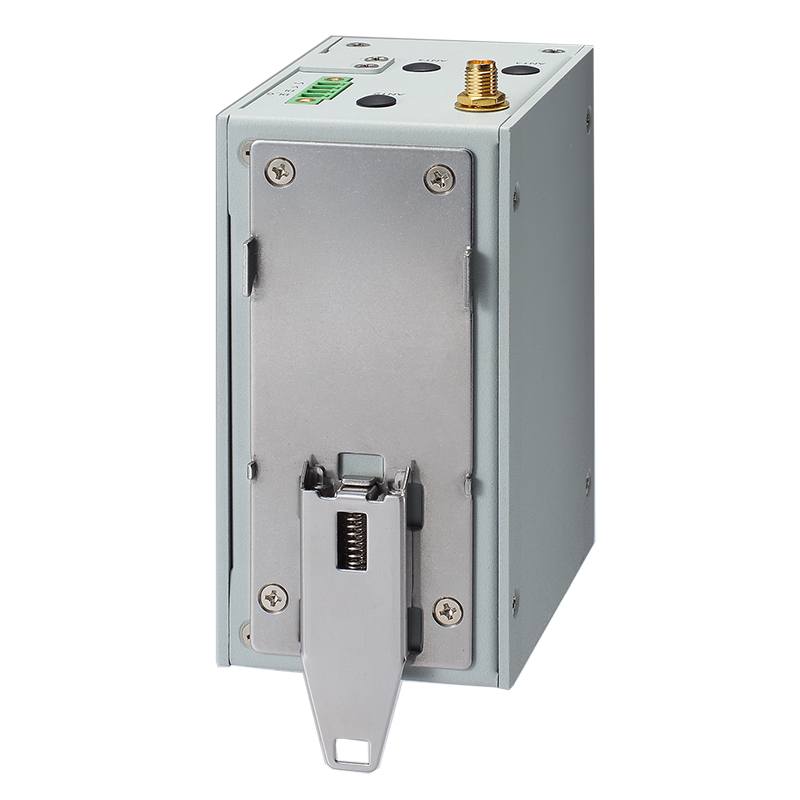

    Mounting
    • DIN-rail

    Ordering Information

    IRU151-I-FL-DC

    Robust DIN-rail fanless embedded system with i.MX 6UL processor, COM, LAN, DIO (2-in/2-out), 4 AI (16-bit,100 S/s, ±20mA ) and 2 PCI Express Mini Card slot (-40°C to +70°C)

    Wireless (3G/GPS or Wi-Fi) module
